HP0315A Series
Manufacturer: NKK Switches
Beta
⌘K

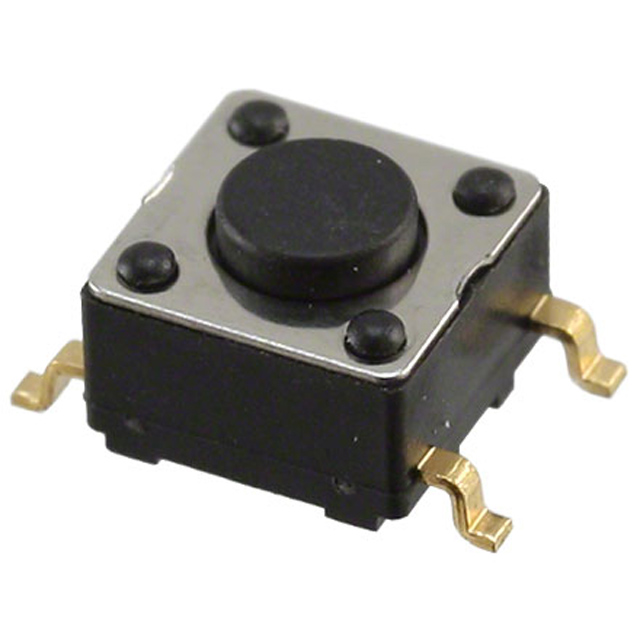

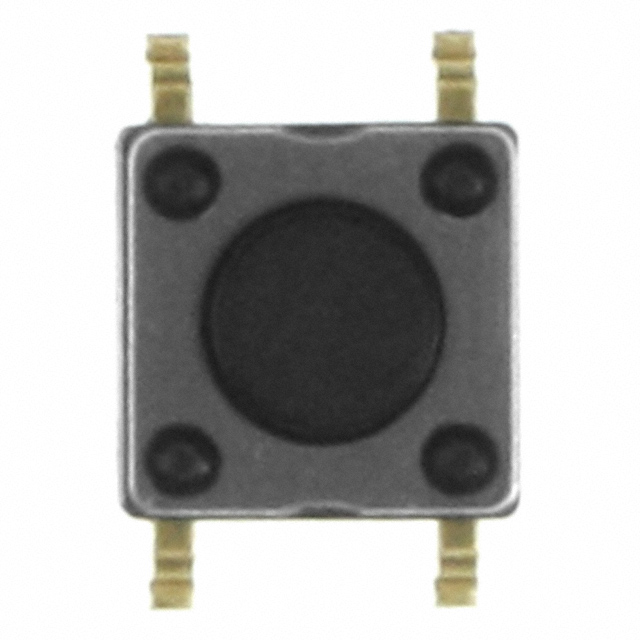

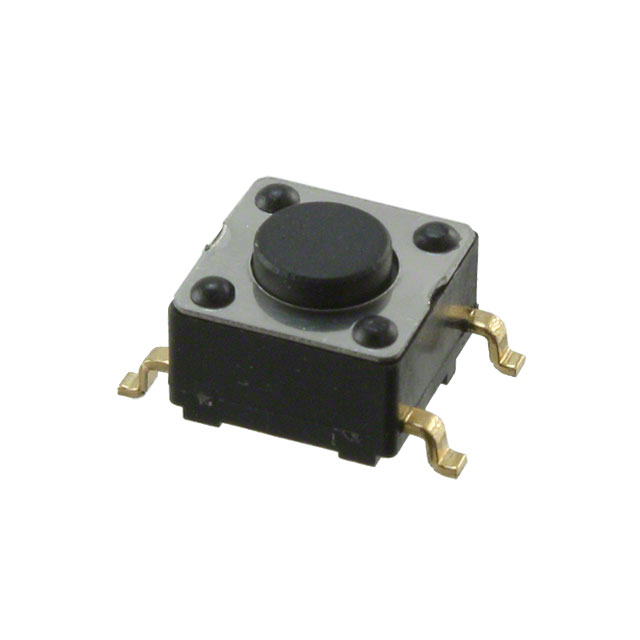

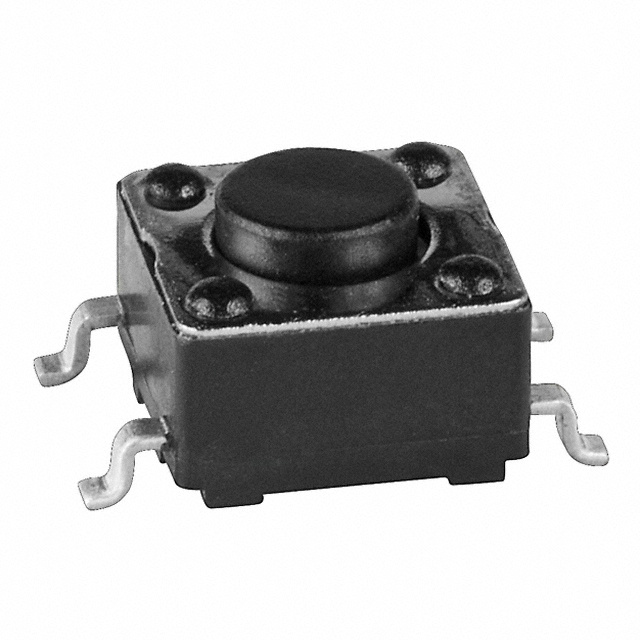

TACTILE SWITCH, HP03 SERIES, TOP ACTUATED, SURFACE MOUNT, ROUND BUTTON, 160 GF, 100MA AT 28VDC
| Part | Switch Travel | Actuator Material | Mechanical Life | Termination Style | Operating Force | Outline [x] | Outline [y] | Contact Rating @ Voltage | Features | Actuator Height off PCB, Vertical | Actuator Orientation | Illumination | Circuit | Actuator Type | Switch Function | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 0.2 mm | Glass Filled Nylon Polyamide (PA) | 500000 Cycles | Gull Wing | 160 gf | 6.2 mm | 6.2 mm | 0.4 VA | Sealed - Flux Protection | 4.4 mm | Top Actuated | Non-Illuminated | SPST-NO | Standard | Off-Mom | -20 ░C | 70 °C | Surface Mount |
 NKK Switches | 0.2 mm | Glass Filled Nylon Polyamide (PA) | 500000 Cycles | Gull Wing | 160 gf | 6.2 mm | 6.2 mm | 0.4 VA | Sealed - Flux Protection | 4.4 mm | Top Actuated | Non-Illuminated | SPST-NO | Standard | Off-Mom | -20 ░C | 70 °C | Surface Mount |
 NKK Switches | 0.2 mm | Glass Filled Nylon Polyamide (PA) | 500000 Cycles | Gull Wing | 160 gf | 6.2 mm | 6.2 mm | 3 VA | Sealed - Flux Protection | 4.4 mm | Top Actuated | Non-Illuminated | SPST-NO | Standard | Off-Mom | -20 ░C | 70 °C | Surface Mount |
 NKK Switches | 0.2 mm | Glass Filled Nylon Polyamide (PA) | 500000 Cycles | Gull Wing | 160 gf | 6.2 mm | 6.2 mm | 0.4 VA | Sealed - Flux Protection | 4.4 mm | Top Actuated | Non-Illuminated | SPST-NO | Standard | Off-Mom | -20 ░C | 70 °C | Surface Mount |
