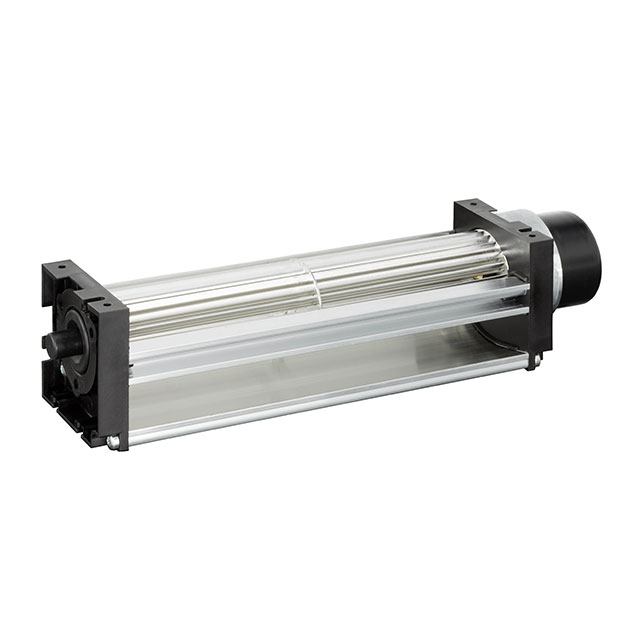

QG030 Series

Catalog

DC BLOWER BALL BEARING 12V 9.6W 91CFM 51DB FLANGE MOUNT

Part	Lifetime @ Temp.	Material - Frame	Voltage Range [Min]	Voltage Range [Max]	Material - Blade [custom]	Fan Type	Approval Agency	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Size / Dimension [z]	Size / Dimension	Size / Dimension [x]	Bearing Type	Weight [custom]	Weight [custom]	Width [x]	Noise	Termination	Air Flow	Air Flow	Voltage - Rated	Power (Watts)	Ingress Protection	Weight	Weight
ebm-papst Inc. QG030-353/12	30000 Hrs	Aluminum	8 V	14 V	Aluminum	Blower Cross Flow	CE CSA UL VDE	60 °C	60 °C	-4 °F	-20 ░C	50 mm	Rectangular	413 mm	Ball	415.04 g	0.915 lb	47.5 mm	51 dB(A)	2 Wire Leads	91 CFM	2.55 m³/min	12 VDC	9.6 W
ebm-papst Inc. QG030-353/14	30000 Hrs	Aluminum	16 VDC	28 V	Aluminum	Blower Cross Flow	CE CSA UL VDE	60 °C	60 °C	-4 °F	-20 ░C	50 mm	Rectangular	413 mm	Ball	415.04 g	0.915 lb	47.5 mm	51 dB(A)	2 Wire Leads	91 CFM	2.55 m³/min	24 VDC	9.6 W	IP20
ebm-papst Inc. QG030-303/14	30000 Hrs	Aluminum	16 VDC	28 V	Aluminum	Blower Cross Flow	CE CSA UL VDE	60 °C	60 °C	-4 °F	-20 ░C	50 mm		363 mm	Ball			47.5 mm	51 dB(A)	2 Wire Leads			24 VDC	8.7 W		0.838 lb	380.11 g
ebm-papst Inc. QG030-303/12	30000 Hrs	Aluminum	8 V	14 V	Aluminum	Blower Cross Flow	CE CSA UL VDE	60 °C	60 °C	-4 °F	-20 ░C	50 mm		363 mm	Ball			47.5 mm	51 dB(A)	2 Wire Leads			12 VDC	8.7 W		0.838 lb	380.11 g
