NPPN152 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HDR 30POS 0.079 GOLD PCB

Part	Contact Shape	Contact Material	Insulation Material	Contact Finish Thickness - Post	Connector Type	Pitch - Mating	Pitch - Mating	Insulation Color	Contact Length - Post [custom]	Contact Length - Post	Contact Finish - Post	Fastening Type	Number of Rows [custom]	Termination	Number of Positions	Insulation Height	Insulation Height	Contact Type	Mounting Type	Contact Finish Thickness - Mating	Material Flammability Rating	Row Spacing - Mating	Row Spacing - Mating	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions Loaded	Features	Current Rating (Amps)	Insulation Height	Contact Length - Post
Sullins Connector Solutions NPPN152AFEN-RC	Square	Phosphor Bronze	Nylon 6T Polyamide (PA6T)	Flash	Header	0.079 "	2 mm	Black	0.11 in	2.79 mm	Gold	Push-Pull	2	Solder	30	4.3 mm	0.169 "	Female Socket	Through Hole	Flash	UL94 V-0	2 mm	0.079 in	Gold	-40 C	105 ░C	All

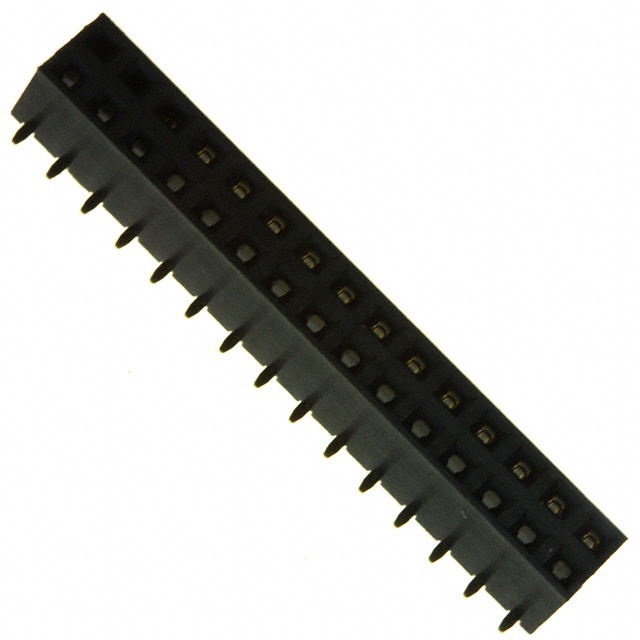

Sullins Connector Solutions NPPN152FFKP-RC	Square	Phosphor Bronze	Nylon 6T Polyamide (PA6T)	Flash	Header	0.079 "	2 mm	Black			Gold	Push-Pull	2	Solder	30	0.173 in		Female Socket	Surface Mount	Flash	UL94 V-0	2 mm	0.079 in	Gold	-40 C	105 ░C	All	Board Guide	2 A	4.4 mm
Sullins Connector Solutions NPPN152GFNS-RC	Square	Phosphor Bronze	Nylon 6T Polyamide (PA6T)	Flash	Header Top or Bottom Entry	0.079 "	2 mm	Black			Gold	Push-Pull	2	Solder	30			Female Socket	Surface Mount	Flash	UL94 V-0	2 mm	0.079 in	Gold	-40 C	105 ░C	All		2 A
Sullins Connector Solutions NPPN152AFCN-RC	Square	Phosphor Bronze	Nylon 6T Polyamide (PA6T)	Flash	Header	0.079 "	2 mm	Black		2.4 mm	Gold	Push-Pull	2	Solder	30	4.3 mm	0.169 "	Female Socket	Through Hole	Flash	UL94 V-0	2 mm	0.079 in	Gold	-40 C	105 ░C	All				0.094 in

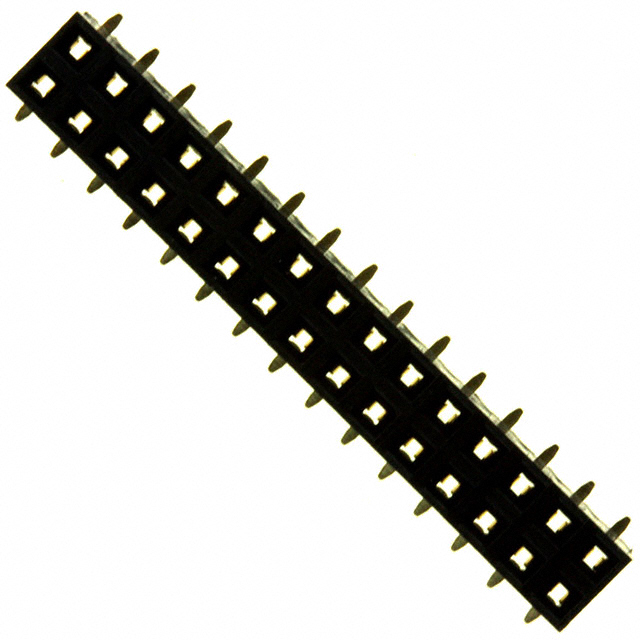

Sullins Connector Solutions NPPN152FFKS-RC	Square	Phosphor Bronze	Nylon 6T Polyamide (PA6T)	Flash	Header	0.079 "	2 mm	Black			Gold	Push-Pull	2	Solder	30	0.173 in		Female Socket	Surface Mount	Flash	UL94 V-0	2 mm	0.079 in	Gold	-40 C	105 ░C	All		2 A	4.4 mm

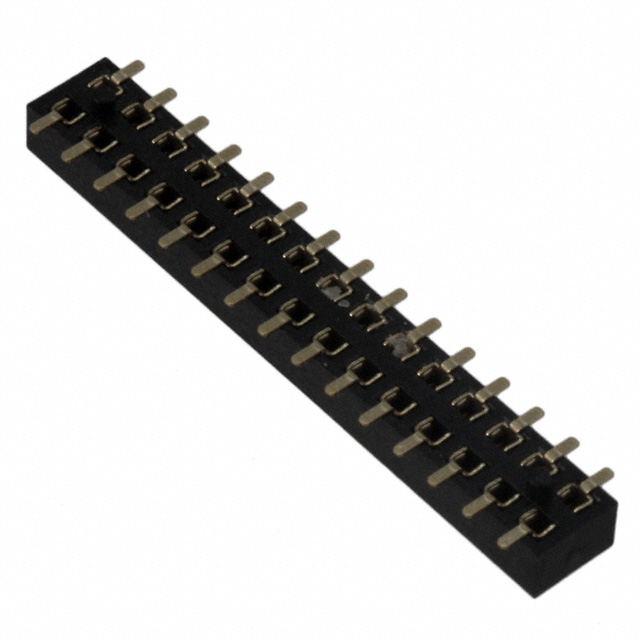

Sullins Connector Solutions NPPN152GFNP-RC	Square	Phosphor Bronze	Nylon 6T Polyamide (PA6T)	Flash	Header Top or Bottom Entry	0.079 "	2 mm	Black			Gold	Push-Pull	2	Solder	30			Female Socket	Surface Mount	Flash	UL94 V-0	2 mm	0.079 in	Gold	-40 C	105 ░C	All	Board Guide	2 A
Sullins Connector Solutions NPPN152GHNP-RC	Square	Phosphor Bronze	Nylon 6T Polyamide (PA6T)	Flash	Header Bottom Entry	0.079 "	2 mm	Black			Gold	Push-Pull	2	Solder	30			Female Socket	Surface Mount	Flash	UL94 V-0	2 mm	0.079 in	Gold	-40 C	105 ░C	All	Board Guide
