F8 Series

Catalog

POWER TRANSFORMERS POWER XFMR 20.0VCTA.5.0A UL/CUL 115V QUICK PACK W/LUGS/F8-20

Part	Voltage - Isolation	Height - Seated (Max) [Max] [z]	Mounting Type	Size / Dimension [y]	Size / Dimension [x]	Secondary Winding(s)	Voltage - Secondary (Full Load)	Termination Style	Termination Style	Termination Style	Power - Max [Max]	Type	Primary Winding(s)	Weight [custom]	Weight [custom]	Voltage - Primary	Current - Output (Max)	Current - Output (Max) [Max]

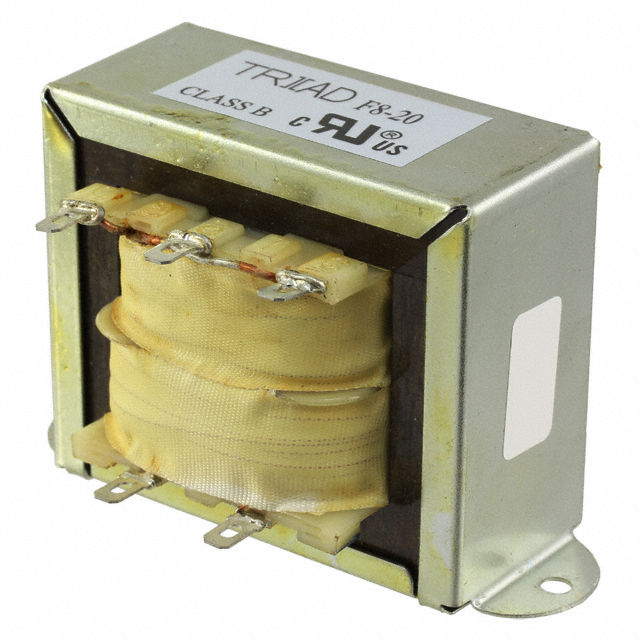

Triad Magnetics F8-20	2500 Vrms	65.07 mm	Chassis Mount	2.25 in	102.39 mm	Single	20 V	4.7 mm	0.187 in	Solder Quick Connect	100 VA	Laminated Core	Single	1.3 kg	2.8 lbs	115 V	5 A
Triad Magnetics F8-24	2500 Vrms	65.07 mm	Chassis Mount	2.25 in	102.39 mm	Single	24 V	4.7 mm	0.187 in	Solder Quick Connect	100 VA	Laminated Core	Single	1.3 kg	2.8 lbs	115 V		4 A

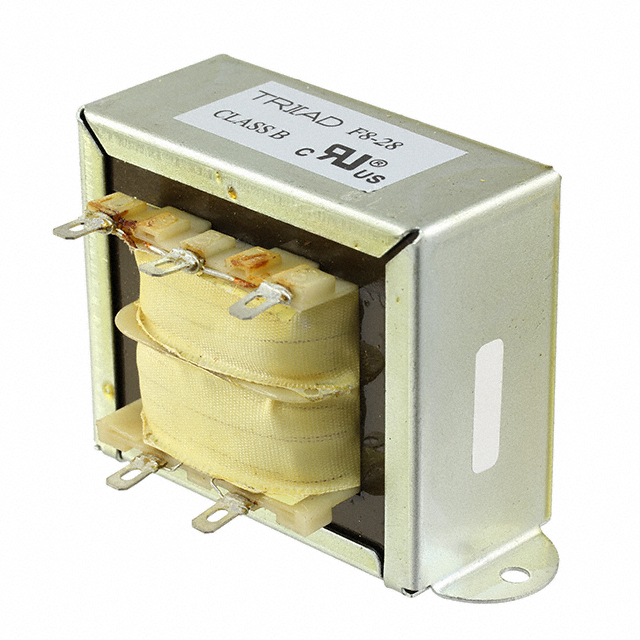

Triad Magnetics F8-28	2500 Vrms	65.07 mm	Chassis Mount	2.25 in	102.39 mm	Single	28 V	4.7 mm	0.187 in	Solder Quick Connect	100 VA	Laminated Core	Single	1.3 kg	2.8 lbs	115 V		3.6 A
Triad Magnetics F8-16	2500 Vrms	65.07 mm	Chassis Mount	2.25 in	102.39 mm	Single	16 V	4.7 mm	0.187 in	Solder Quick Connect	100 VA	Laminated Core	Single	1.3 kg	2.8 lbs	115 V		6.25 A
