HRS-2FY Series

Manufacturer: Adam Tech

Catalog

RECEPTACLE STRIP, 1.27MM, VERTIC

Part	Insulation Material	Applications	Contact Material	Contact Shape	Contact Finish Thickness - Post	Fastening Type	Connector Type	Contact Finish - Mating	Number of Positions Loaded	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Post	Contact Finish Thickness - Mating	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Insulation Height	Insulation Height	Insulation Color	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Type	Termination	Voltage Rating	Mounting Type	Number of Rows [custom]
Adam Tech HRS-2FY-08-SG-SMT	Thermoplastic	General Purpose	Phosphor Bronze	Square	Flash	Push-Pull	Receptacle	Gold	All	8	-40 C	105 ░C	Gold	Flash	UL94 V-0	1.27 mm	0.05 in	0.244 in	6.2 mm	Black	0.1 in	2.54 mm	Female Socket	Solder	250 VAC	Surface Mount	2

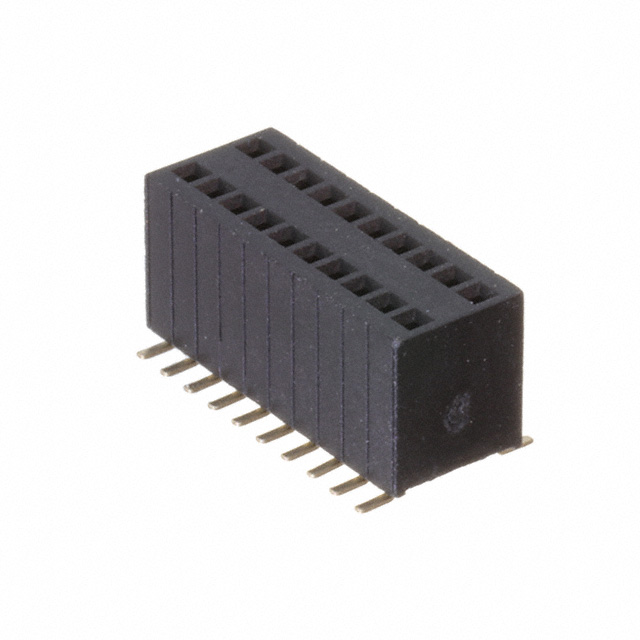

Adam Tech HRS-2FY-20-SG-SMT	Thermoplastic	General Purpose	Phosphor Bronze	Square	Flash	Push-Pull	Receptacle	Gold	All	20	-40 C	105 ░C	Gold	Flash	UL94 V-0	1.27 mm	0.05 in	0.244 in	6.2 mm	Black	0.1 in	2.54 mm	Female Socket	Solder	250 VAC	Surface Mount	2

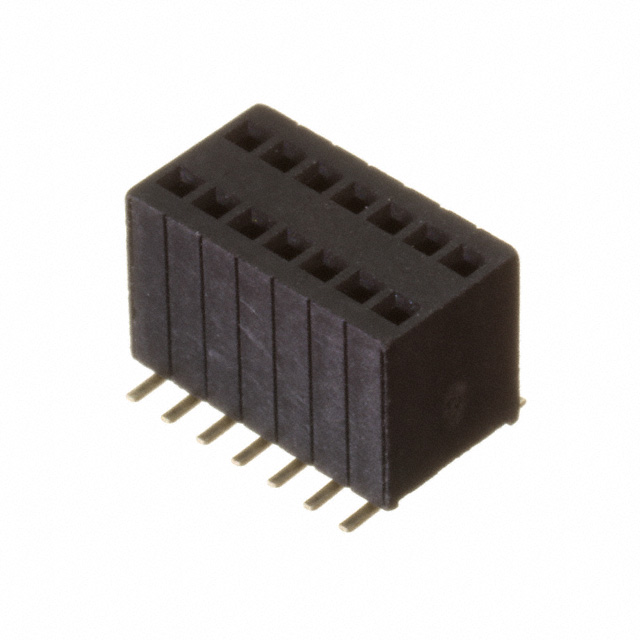

Adam Tech HRS-2FY-14-SG-SMT	Thermoplastic	General Purpose	Phosphor Bronze	Square	Flash	Push-Pull	Receptacle	Gold	All	14	-40 C	105 ░C	Gold	Flash	UL94 V-0	1.27 mm	0.05 in	0.244 in	6.2 mm	Black	0.1 in	2.54 mm	Female Socket	Solder	250 VAC	Surface Mount	2

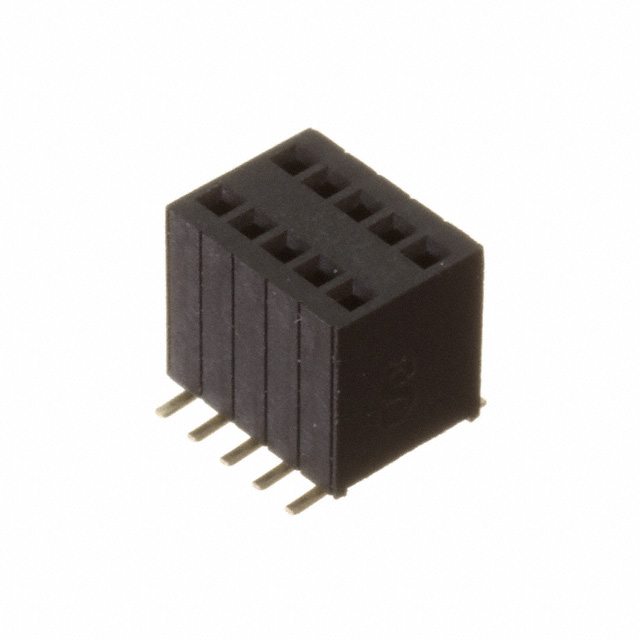

Adam Tech HRS-2FY-10-SG-SMT	Thermoplastic	General Purpose	Phosphor Bronze	Square	Flash	Push-Pull	Receptacle	Gold	All	10	-40 C	105 ░C	Gold	Flash	UL94 V-0	1.27 mm	0.05 in	0.244 in	6.2 mm	Black	0.1 in	2.54 mm	Female Socket	Solder	250 VAC	Surface Mount	2
Adam Tech HRS-2FY-12-SG-SMT	Thermoplastic	General Purpose	Phosphor Bronze	Square	Flash	Push-Pull	Receptacle	Gold	All	12	-40 C	105 ░C	Gold	Flash	UL94 V-0	1.27 mm	0.05 in	0.244 in	6.2 mm	Black	0.1 in	2.54 mm	Female Socket	Solder	250 VAC	Surface Mount	2

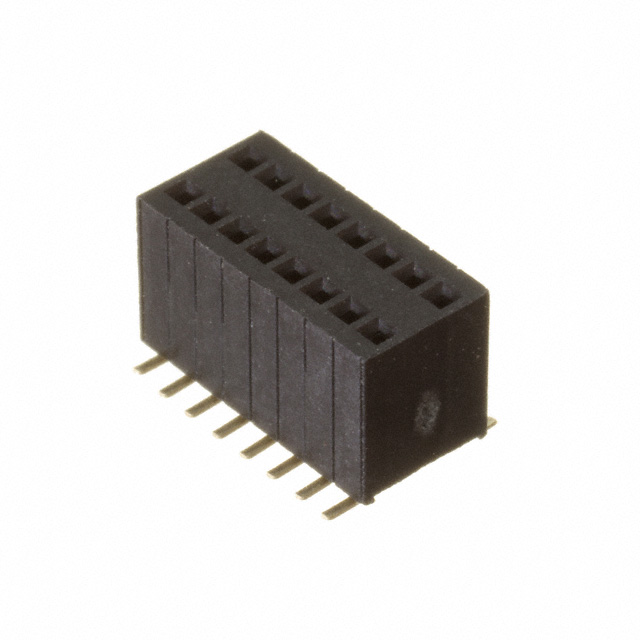

Adam Tech HRS-2FY-16-SG-SMT	Thermoplastic	General Purpose	Phosphor Bronze	Square	Flash	Push-Pull	Receptacle	Gold	All	16	-40 C	105 ░C	Gold	Flash	UL94 V-0	1.27 mm	0.05 in	0.244 in	6.2 mm	Black	0.1 in	2.54 mm	Female Socket	Solder	250 VAC	Surface Mount	2
Adam Tech HRS-2FY-04-SG-SMT	Thermoplastic	General Purpose	Phosphor Bronze	Square	Flash	Push-Pull	Receptacle	Gold	All	4	-40 C	105 ░C	Gold	Flash	UL94 V-0	1.27 mm	0.05 in	0.244 in	6.2 mm	Black	0.1 in	2.54 mm	Female Socket	Solder	250 VAC	Surface Mount	2

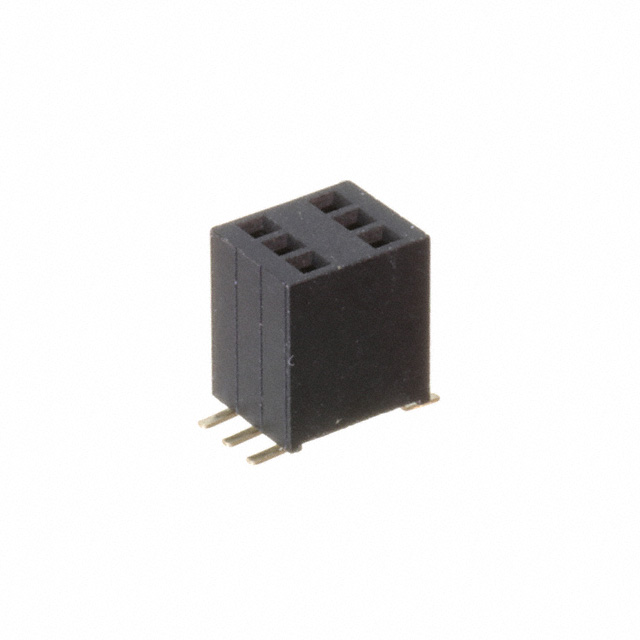

Adam Tech HRS-2FY-06-SG-SMT	Thermoplastic	General Purpose	Phosphor Bronze	Square	Flash	Push-Pull	Receptacle	Gold	All	6	-40 C	105 ░C	Gold	Flash	UL94 V-0	1.27 mm	0.05 in	0.244 in	6.2 mm	Black	0.1 in	2.54 mm	Female Socket	Solder	250 VAC	Surface Mount	2
