ARX383 Series

Image Sensor, 0.3 MP, Global Shutter, Hyperlux™ SG

Catalog

Image Sensor, 0.3 MP, Global Shutter, Hyperlux™ SG

Part	Package / Case	Active Pixel Array [y]	Active Pixel Array [x]	Frames per Second	Type	Supplier Device Package	Supplier Device Package [x]	Supplier Device Package [y]	Pixel Size [y]	Pixel Size [x]

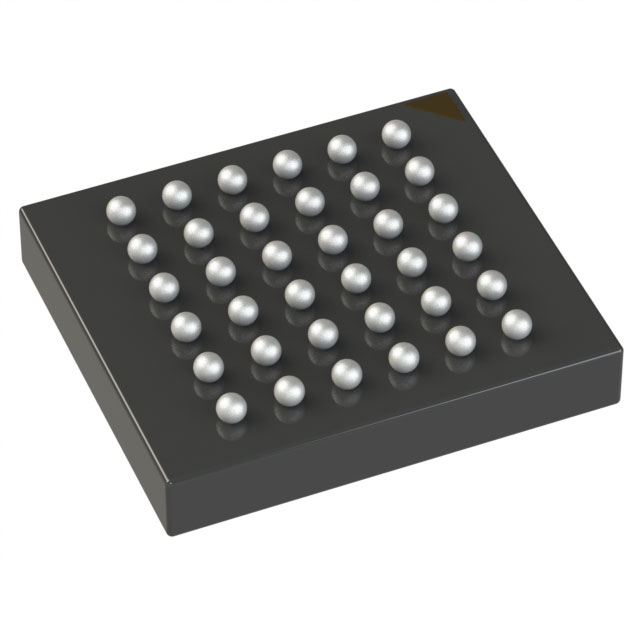

ON Semiconductor ARX383CSSM00SMKA0-CP	35-WFBGA CSPBGA	480	640	120	CMOS	35-ODCSP	3.92	3.55	2.8 µm	2.8 µm
ON Semiconductor ARX383CSSM00SMKA0-CR	35-WFBGA CSPBGA	480	640	120	CMOS	35-ODCSP	3.92	3.55	2.8 µm	2.8 µm
ON Semiconductor ARX383CSSM28SMKA0-CP2
ON Semiconductor ARX383CSSM00SMKA0-CP2

Catalog

Image Sensor, 0.3 MP, Global Shutter, Hyperlux™ SG

Key Features

• Best in Class Global Shutter Efficiency

• Low Operational Power

• Small Form Factor

• Built-In Statistics Engine

• Multiple Subsampling Modes

Description

The ARX383 is a 1/8−inch 0.3Mp VGA CMOS digital image sensor with an active−pixel array of 640 x 480. It incorporates an innovative global shutter pixel design optimized for accurate and fast capture of moving scenes at 120 frame per second, full resolution. The sensor produces clear, low noise images in both low−light and bright scenes. It includes sophisticated camera functions such as adjustable auto-exposure control, auto black-level correction, windowing, skipping, pixel−binning, and, both video & single frame modes. It is programmable through a simple two−wire serial interface. The ARX383 produces clear, sharp digital pictures with an industry leading Global Shutter Efficiency, and its ability to capture both continuous video and single frames makes it the perfect choice for a wide range of applications, including scanning, autonomous mobilty, AR/VR, AIoT and industrial quality control.
