XM3F Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
CONN D-SUB RCPT 9POS VERT SLDR
| Part | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Color | Voltage Rating | Dielectric Material | Current Rating (Amps) | Number of Positions | Contact Finish Thickness | Contact Finish Thickness | Termination | Connector Style | Contact Finish | Features | Contact Type | Mounting Type | Material Flammability Rating | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Number of Rows [custom] | Connector Type | Flange Feature | Shell Size, Connector Layout | Shell Size, Connector Layout | Shell Material, Finish | Shell Size, Connector Layout [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

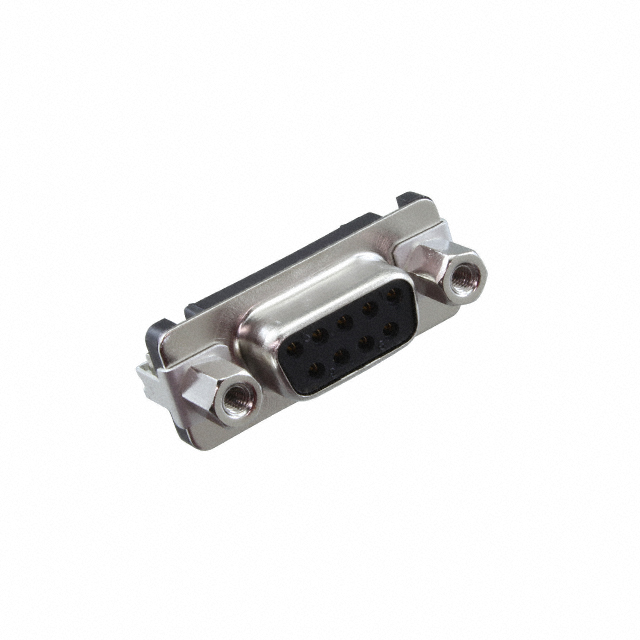

 Omron Electronics Inc-EMC Div | Phosphor Bronze | -55 C | 105 ░C | Black | 300 VDC | Polybutylene Terephthalate (PBT) Glass Filled | 5 A | 9 | 16 µin | 0.41 µm | Solder | D-Sub | Gold | Board Lock Shielded | Signal | Through Hole | UL94 V-0 | 1 | DE E | 2 | Receptacle Female Sockets | |||||

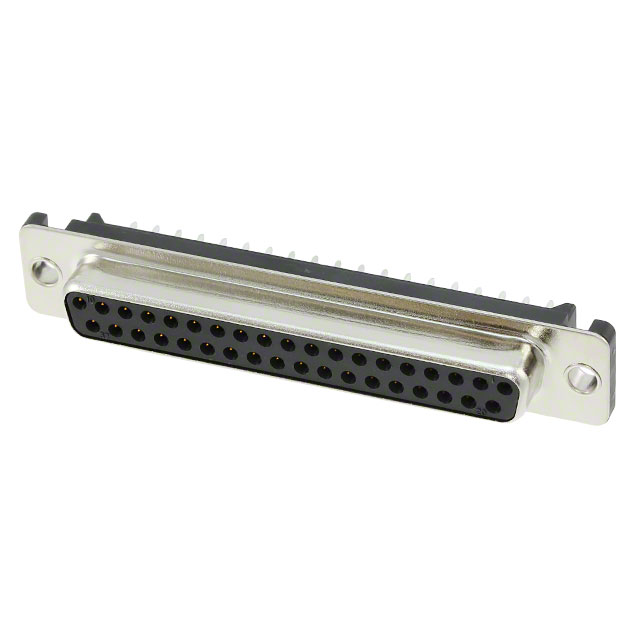

 Omron Electronics Inc-EMC Div | Phosphor Bronze | -55 C | 105 ░C | Black | 300 VDC | Polybutylene Terephthalate (PBT) Glass Filled | 5 A | 37 | 16 µin | 0.41 µm | Solder | D-Sub | Gold | Board Lock Shielded | Signal | Through Hole | UL94 V-0 | 2 | Receptacle Female Sockets | 4-40 Mating Side Female Screwlock | 4 | DC C | ||||
Omron Electronics Inc-EMC Div | Phosphor Bronze | -55 C | 105 ░C | Black | 300 VDC | Polybutylene Terephthalate (PBT) Glass Filled | 5 A | 9 | 16 µin | 0.41 µm | Solder | D-Sub | Gold | Shielded | Signal | Through Hole | UL94 V-0 | 1 | DE E | 2 | Receptacle Female Sockets | Housing/Shell (Unthreaded) | Nickel Plated Steel | |||

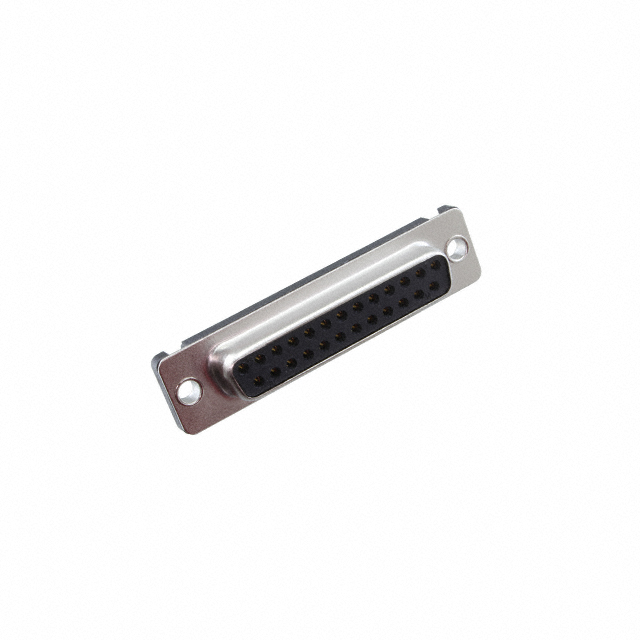

 Omron Electronics Inc-EMC Div | Phosphor Bronze | -55 C | 105 ░C | Black | 300 VDC | Polybutylene Terephthalate (PBT) Glass Filled | 5 A | 25 | 16 µin | 0.41 µm | Solder | D-Sub | Gold | Shielded | Signal | Through Hole | UL94 V-0 | 2 | Receptacle Female Sockets | Housing/Shell (Unthreaded) | B DB | Nickel Plated Steel | 3 | |||
 Omron Electronics Inc-EMC Div | Phosphor Bronze | -55 C | 105 ░C | Black | 300 VDC | Polybutylene Terephthalate (PBT) Glass Filled | 5 A | 37 | 16 µin | 0.41 µm | Solder | D-Sub | Gold | Board Lock Shielded | Signal | Through Hole | UL94 V-0 | 2 | Receptacle Female Sockets | 4 | DC C | |||||
Omron Electronics Inc-EMC Div | Phosphor Bronze | -55 C | 105 ░C | Black | 300 VDC | Polybutylene Terephthalate (PBT) Glass Filled | 5 A | 37 | 16 µin | 0.41 µm | Solder | D-Sub | Gold | Shielded | Signal | Through Hole | UL94 V-0 | 2 | Receptacle Female Sockets | Housing/Shell (Unthreaded) | 4 | DC C | Nickel Plated Steel |
