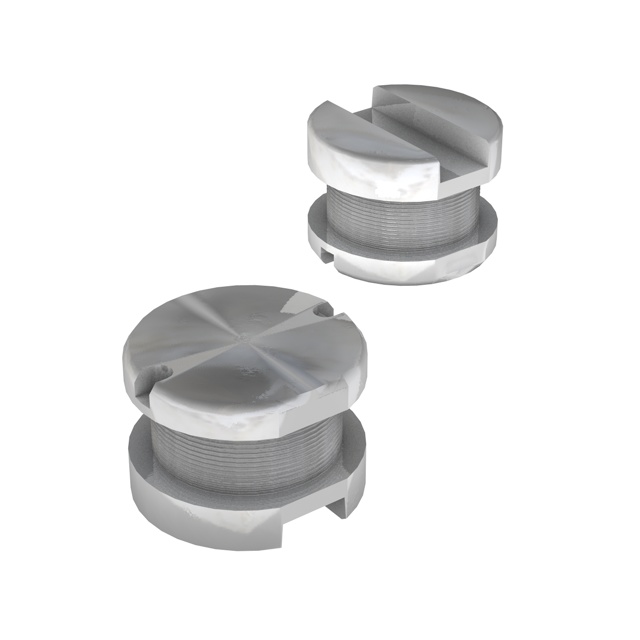

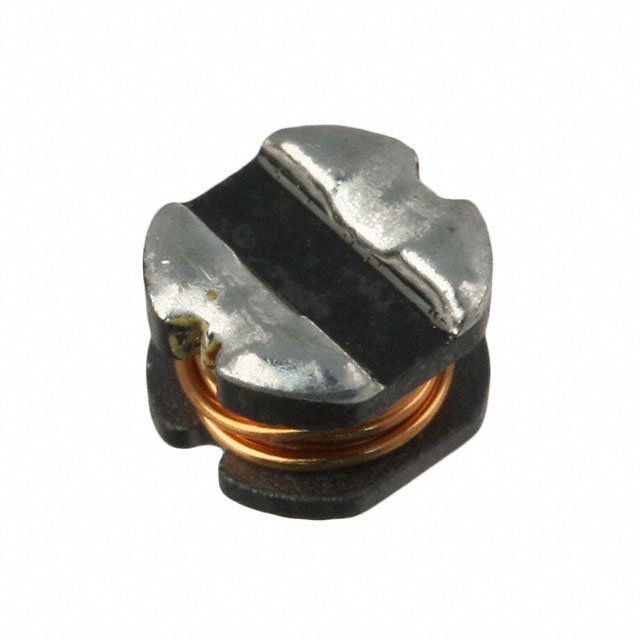

SDR0403 Series
Manufacturer: Bourns Inc.
Beta
⌘K
POWER INDUCTOR (SMD), 3.3 ΜH, 2.15 A, UNSHIELDED, 3 A, SDR0403 SERIES
| Part | Tolerance | Inductance | DC Resistance (DCR) [Max] | Q @ Freq | Type | Shielding | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Frequency - Self Resonant | Current Rating (Amps) | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Package / Case | Material - Core | Inductance Frequency - Test | Current - Saturation (Isat) | DC Resistance (DCR) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | 20 % | 3.3 µH | 58 mOhm | 7.96 MHz 28 | Drum Core Wirewound | Unshielded | 0.138 " | 3.5 mm | Surface Mount | 125 °C | -40 C | 65 MHz | 2.15 A | 0.157 " | 0.177 in | 4.5 mm | 4 mm | Nonstandard | Ferrite | 1 kHz | 3 A | |
 Bourns Inc. | 10 % | 2.2 Ohm | 50 796 kHz | Drum Core Wirewound | Unshielded | 0.138 " | 3.5 mm | Surface Mount | 125 °C | -40 C | 8 MHz | 320 mA | 0.157 " | 0.177 in | 4.5 mm | 4 mm | Nonstandard | Ferrite | 1 kHz | 440 mA | ||
Bourns Inc. | 10 % | 470 µH | 50 796 kHz | Drum Core Wirewound | Unshielded | 0.138 " | 3.5 mm | Surface Mount | 125 °C | -40 C | 3 MHz | 130 mA | 0.157 " | 0.177 in | 4.5 mm | 4 mm | Nonstandard | Ferrite | 1 kHz | 190 mA | ||
 Bourns Inc. | 10 % | 680 µH | 8.6 Ohm | 40 796 kHz | Drum Core Wirewound | Unshielded | 0.138 " | 3.5 mm | Surface Mount | 125 °C | -40 C | 2.8 MHz | 110 mA | 0.157 " | 0.177 in | 4.5 mm | 4 mm | Nonstandard | Ferrite | 1 kHz | 160 mA | |
 Bourns Inc. | 20 % | 6.8 µH | 120 mOhm | 7.96 MHz 28 | Drum Core Wirewound | Unshielded | 0.138 " | 3.5 mm | Surface Mount | 125 °C | -40 C | 40 MHz | 1.41 A | 0.157 " | 0.177 in | 4.5 mm | 4 mm | Nonstandard | Ferrite | 1 kHz | 2.1 A | |
 Bourns Inc. | 20 % | 1.8 µH | 42 mOhm | 7.96 MHz 28 | Drum Core Wirewound | Unshielded | 0.138 " | 3.5 mm | Surface Mount | 125 °C | -40 C | 90 MHz | 2.91 A | 0.157 " | 0.177 in | 4.5 mm | 4 mm | Nonstandard | Ferrite | 1 kHz | 4.4 A | |
 Bourns Inc. | 20 % | 8.2 µH | 7.96 MHz 28 | Drum Core Wirewound | Unshielded | 0.138 " | 3.5 mm | Surface Mount | 125 °C | -40 C | 36 MHz | 1.26 A | 0.157 " | 0.177 in | 4.5 mm | 4 mm | Nonstandard | Ferrite | 1 kHz | 1.9 A | 130 mOhm | |
 Bourns Inc. | 20 % | 18 µH | 340 mOhm | 2.52 MHz 25 | Drum Core Wirewound | Unshielded | 0.138 " | 3.5 mm | Surface Mount | 125 °C | -40 C | 23 MHz | 0.84 A | 0.157 " | 0.177 in | 4.5 mm | 4 mm | Nonstandard | Ferrite | 1 kHz | 1.3 A | |
Bourns Inc. | 20 % | 10 µH | 180 mOhm | 2.52 MHz 28 | Drum Core Wirewound | Unshielded | 0.138 " | 3.5 mm | Surface Mount | 125 °C | -40 C | 33 MHz | 1.15 A | 0.157 " | 0.177 in | 4.5 mm | 4 mm | Nonstandard | Ferrite | 1 kHz | 1.7 A | |
Bourns Inc. | 10 % | 56 µH | 940 mOhm | 2.52 MHz 20 | Drum Core Wirewound | Unshielded | 0.138 " | 3.5 mm | Surface Mount | 125 °C | -40 C | 12 MHz | 0.5 A | 0.157 " | 0.177 in | 4.5 mm | 4 mm | Nonstandard | Ferrite | 1 kHz | 740 mA |
