Schaffner FN406 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

LINE FILTER 250VAC 3A TH

Part	Applications	Current	Approval Agency	Inductance	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Mounting Type	Filter Type	Frequency - Operating	Configuration	Voltage - Rated AC
TE Connectivity AMP Connectors FN406-3-02	General Purpose	3 A	CSA ENEC UR	2.5 mH	100 °C	-25 °C	PC Pins	Through Hole	Single Phase	DC ~ 400Hz	Single Stage	250 V

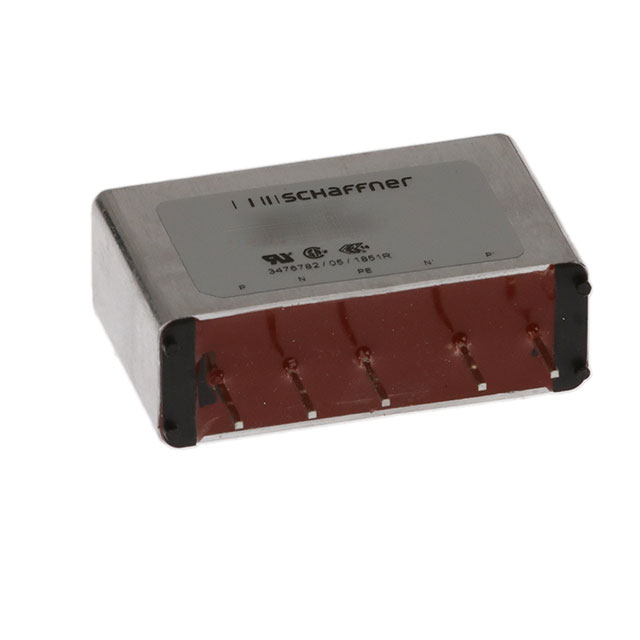

TE Connectivity AMP Connectors FN406B-0.5-02	General Purpose	500 mA	CSA ENEC UR	24 mH	100 °C	-25 °C	PC Pins	Through Hole	Single Phase	DC ~ 400Hz	Single Stage	250 V
TE Connectivity AMP Connectors FN406B-1-02	General Purpose	1 A	CSA ENEC UR	12 mH	100 °C	-25 °C	PC Pins	Through Hole	Single Phase	DC ~ 400Hz	Single Stage	250 V
TE Connectivity AMP Connectors FN406-0.5-02	General Purpose	500 mA	CSA ENEC UR	24 mH	100 °C	-25 °C	PC Pins	Through Hole	Single Phase	DC ~ 400Hz	Single Stage	250 V

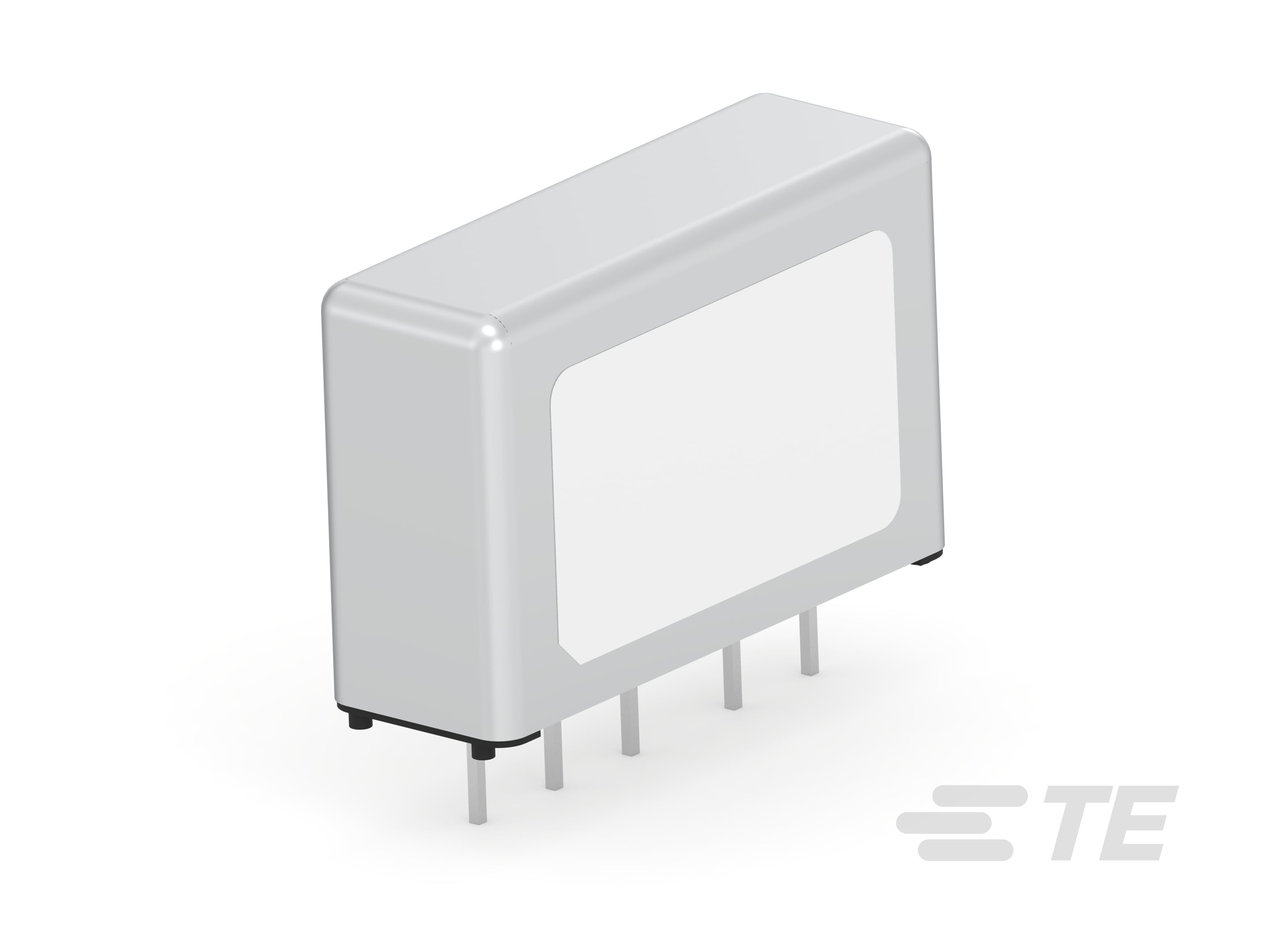

TE Connectivity AMP Connectors FN406-8.4-02	General Purpose	8.4 A	CSA ENEC UR	300 µH	100 °C	-25 °C	PC Pins	Through Hole	Single Phase	DC ~ 400Hz	Single Stage	250 V
TE Connectivity AMP Connectors FN406-6-02	General Purpose	6 A	CSA ENEC UR	780 µH	100 °C	-25 °C	PC Pins	Through Hole	Single Phase	DC ~ 400Hz	Single Stage	250 V
TE Connectivity AMP Connectors FN406B-8.4-02	General Purpose	8.4 A	CSA ENEC UR	300 µH	100 °C	-25 °C	PC Pins	Through Hole	Single Phase	DC ~ 400Hz	Single Stage	250 V
TE Connectivity AMP Connectors FN406B-8.4-02	General Purpose	8.4 A	CSA ENEC UR	300 µH	100 °C	-25 °C	PC Pins	Through Hole	Single Phase	DC ~ 400Hz	Single Stage	250 V
TE Connectivity AMP Connectors FN406-1-02	General Purpose	1 A	CSA ENEC UR	12 mH	100 °C	-25 °C	PC Pins	Through Hole	Single Phase	DC ~ 400Hz	Single Stage	250 V
TE Connectivity AMP Connectors FN406B-0.5-02	General Purpose	500 mA	CSA ENEC UR	24 mH	100 °C	-25 °C	PC Pins	Through Hole	Single Phase	DC ~ 400Hz	Single Stage	250 V
