46.52.9 Series

Catalog

RELAY GEN PURPOSE DPDT 8A 125V

Part	Coil Resistance	Approval Agency	Release Time	Contact Rating (Current)	Coil Voltage	Load - Max Switching	Contact Form	Operating Temperature [Max]	Operating Temperature [Min]	Relay Type	Mounting Type	Features	Coil Type	Must Release Voltage	Switching Voltage [Max]	Operate Time	Must Operate Voltage	Contact Material	Coil Current
Finder Relays, Inc. 46.52.9.125.0040	32 kOhms	CCC CE CSA cURus EAC ENEC RINA UKCA VDE	3 ms	8 A	125 VDC	3520 VA	DPDT (2 Form C)	70 °C	-40 C	General Purpose	Socketable	Mechanical Indicator Test Button	Non Latching	25 VDC	440 VAC	10 ms	91.2 VDC	Silver Nickel (AgNi)	3.9 mA
Finder Relays, Inc. 46.52.9.024.5040	1.2 kOhms	CCC CE CSA cURus EAC ENEC RINA UKCA VDE	3 ms	8 A	24 VDC	3520 VA	DPDT (2 Form C)	70 °C	-40 C	General Purpose	Socketable	Mechanical Indicator Test Button	Non Latching	4.8 VDC	440 VAC	10 ms	17.5 VDC	Gold (Au) Silver Nickel (AgNi)	0.02 A
Finder Relays, Inc. 46.52.9.024.0020	1.2 kOhms	CCC CE CSA cURus EAC ENEC RINA UKCA VDE	3 ms	8 A	24 VDC	3520 VA	DPDT (2 Form C)	70 °C	-40 C	General Purpose	Socketable	Mechanical Indicator	Non Latching	4.8 VDC	440 VAC	10 ms	17.5 VDC	Silver Nickel (AgNi)	0.02 A
Finder Relays, Inc. 46.52.9.024.5000T	1.2 kOhms	CCC CE CSA cURus EAC ENEC RINA UKCA VDE	3 ms	8 A	24 VDC	3520 VA	DPDT (2 Form C)	70 °C	-40 C	General Purpose	Socketable		Non Latching	4.8 VDC	440 VAC	10 ms	17.5 VDC	Gold (Au) Silver Nickel (AgNi)	0.02 A
Finder Relays, Inc. 46.52.9.125.0074	32 kOhms	CCC CE CSA cURus EAC ENEC RINA UKCA VDE	3 ms	8 A	125 VDC	3520 VA	DPDT (2 Form C)	70 °C	-40 C	General Purpose	Socketable		Non Latching	25 VDC	440 VAC	10 ms	91.2 VDC	Silver Nickel (AgNi)	3.9 mA
Finder Relays, Inc. 46.52.9.048.0074	4.8 kOhms	CCC CE CSA cURus EAC ENEC RINA UKCA VDE	3 ms	8 A	48 VDC	3520 VA	DPDT (2 Form C)	70 °C	-40 C	General Purpose	Socketable		Non Latching	9.6 VDC	440 VAC	10 ms	35 VDC	Silver Nickel (AgNi)	10 mA

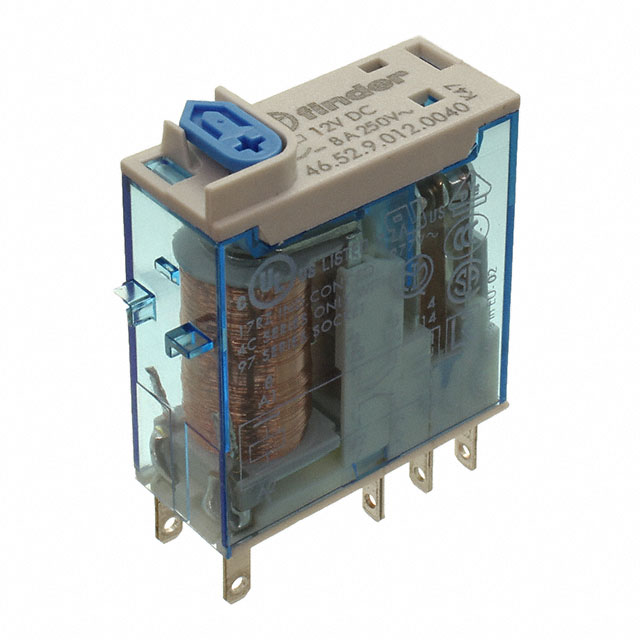

Finder Relays, Inc. 46.52.9.012.0040	300 Ohms	CCC CE CSA cURus EAC ENEC RINA UKCA VDE	3 ms	8 A	12 VDC	3520 VA	DPDT (2 Form C)	70 °C	-40 C	General Purpose	Socketable	Mechanical Indicator Test Button	Non Latching	2.4 VDC	440 VAC	10 ms	8.8 VDC	Silver Nickel (AgNi)	40 mA

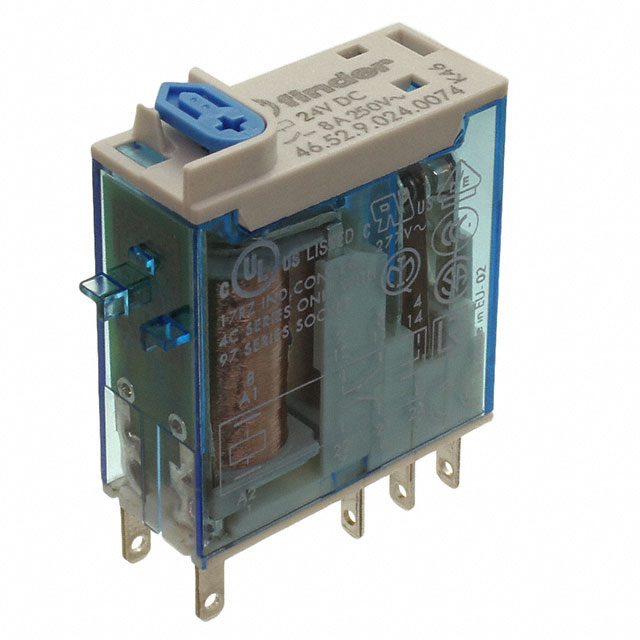

Finder Relays, Inc. 46.52.9.024.0074	1.2 kOhms	CCC CE CSA cURus EAC ENEC RINA UKCA VDE	3 ms	8 A	24 VDC	3520 VA	DPDT (2 Form C)	70 °C	-40 C	General Purpose	Socketable		Non Latching	4.8 VDC	440 VAC	10 ms	17.5 VDC	Silver Nickel (AgNi)	0.02 A
Finder Relays, Inc. 46.52.9.110.0040	23.5 kOhms	CCC CE CSA cURus EAC ENEC RINA UKCA VDE	3 ms	8 A	110 VDC	3520 VA	DPDT (2 Form C)	70 °C	-40 C	General Purpose	Socketable	Mechanical Indicator Test Button	Non Latching	22 VDC	440 VAC	10 ms	80 VDC	Silver Nickel (AgNi)	4.7 mA
Finder Relays, Inc. 46.52.9.024.5074	1.2 kOhms	CCC CE CSA cURus EAC ENEC RINA UKCA VDE	3 ms	8 A	24 VDC	3520 VA	DPDT (2 Form C)	70 °C	-40 C	General Purpose	Socketable		Non Latching	4.8 VDC	440 VAC	10 ms	17.5 VDC	Gold (Au) Silver Nickel (AgNi)	0.02 A
