5120.2304 Series
Manufacturer: SCHURTER Inc.
Beta
⌘K
PWR ENT RCPT IEC320-C18 PANEL QC
| Part | Connector Type | Termination | Termination | Termination | Number of Positions | Connector Style | Material Flammability Rating | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Current Rating - Appliance Inlet | Filter Type | Approval Agency | Current Rating - Filter | Mounting Type | Panel Thickness [Min] | Panel Thickness [Max] | Panel Thickness [Min] | Panel Thickness [Max] | Voltage Rating - Appliance Inlet | Accomodates a Fuse | Features | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

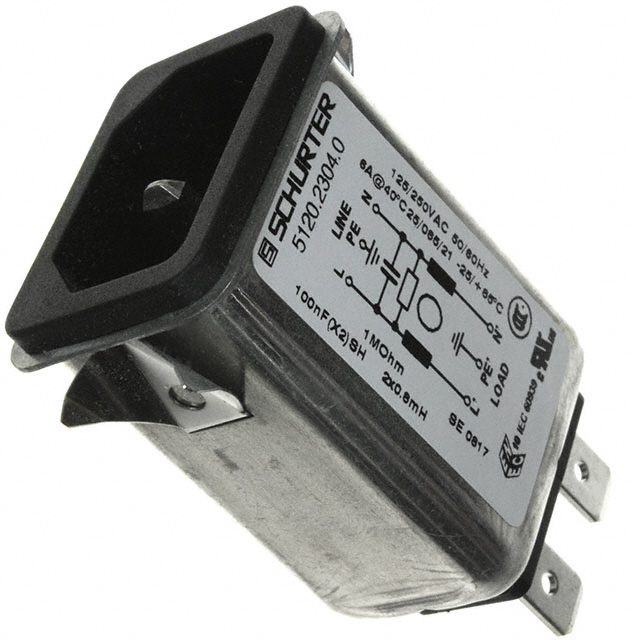

 SCHURTER Inc. | Receptacle Male Blades | 6.3 mm | Quick Connect | 0.25 " | 2 | IEC 320-C18 | UL94 V-0 | 29.4 mm | 21.5 mm | 6 A | Filtered (EMI RFI) - Commercial Medical | CCC cULus ENEC | 6 A | Panel Mount Snap-In | 0.79 mm | 0.079 " | 0.031 " | 2 mm | 250 VAC | Shielded | IP40 | |

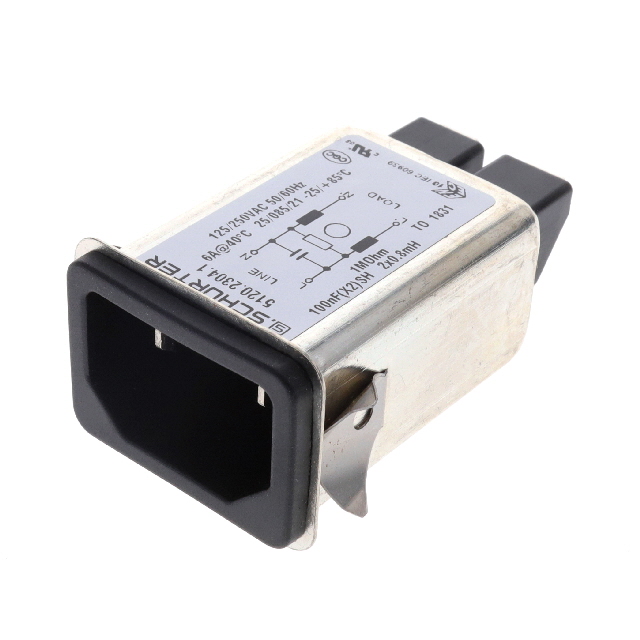

 SCHURTER Inc. | Receptacle Male Blades | 6.3 mm | Quick Connect | 0.25 " | IEC 320-C14 | UL94 V-0 | 29.4 mm | 21.5 mm | 6 A | Filtered (EMI RFI) - Commercial Medical | CCC cULus ENEC | 6 A | Panel Mount Snap-In | 0.79 mm | 0.079 " | 0.031 " | 2 mm | 250 VAC | Shielded | IP40 |
