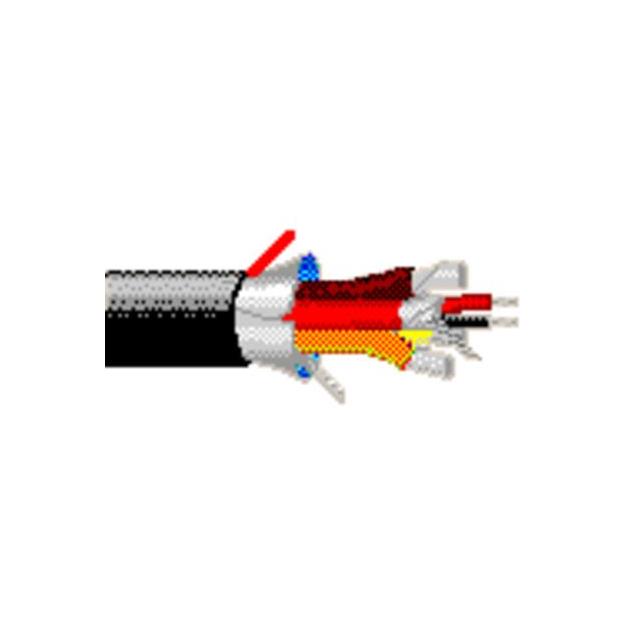

1410R Series
Manufacturer: Belden Inc.
Beta
⌘K
8 #24 PR BFS PVC FS PVC
| Part | Shield Coverage | Shield Material | Usage | Ratings | Operating Temperature [Max] | Operating Temperature [Min] | Voltage | Number of Conductors | Wire Gauge | Shield Type | Conductor Insulation | Jacket Color | Jacket (Insulation) Material | Length | Length | Conductor Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Thickness [custom] | Jacket (Insulation) Thickness [custom] | Conductor Strand [custom] | Conductor Strand [custom] | Cable Type | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 100 % | Aluminum Polyester Copper Tinned | Audio | UL Style CMR | 75 ░C | -30 ░C | 300 VDC | 16 | 24 AWG | Foil | Polypropylene (PP) | Black | Poly-Vinyl Chloride (PVC) Riser | 304.8 m | 1000 ft | Copper Tinned | 11.33 mm | 0.446 in | 0.038 in | 0.965 mm | 7 | 32 AWG | Multi-Pair | Drain Wire Rip Cord |
