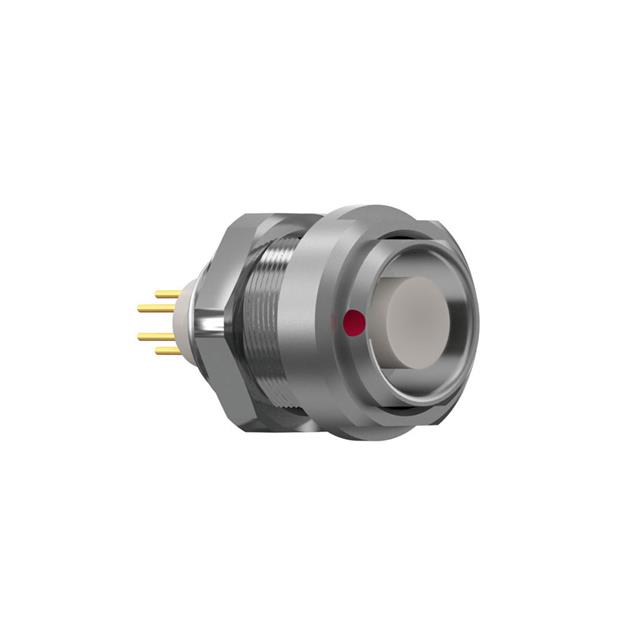

G50LAC-P Series
Manufacturer: ODU
Beta
⌘K
CONN RCPT FMALE 9P GOLD SLDR CUP
| Part | Contact Material | Insert Material | Applications | Operating Temperature [Max] | Operating Temperature [Min] | Features | Current Rating (Amps) | Color | Ingress Protection | Contact Finish - Mating | Mounting Type | Shell Size - Insert [custom] | Shell Finish | Number of Positions | Primary Material | Orientation | Mounting Feature | Connector Type | Shielding | Fastening Type | Shell Material | Termination | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Brass | Polyetheretherketone (PEEK) | Industrial Medical Military Testing Equipment & Measurement | 120 °C | -40 C | Ground | 4 A | Silver | IP50 - Dust Protected | Gold | Panel Mount | 0 | Chrome over Nickel | 9 | Metal | A | Bulkhead - Front or Rear Side Nut | Receptacle Female Sockets | Shielded | Push-Pull | Brass | |||
Brass | Polyetheretherketone (PEEK) | Industrial Medical Military Testing Equipment & Measurement | 120 °C | -40 C | Ground | 7.5 A | Silver | IP50 - Dust Protected | Gold | Panel Mount | 0 | Chrome over Nickel | 4 | Metal | A | Bulkhead - Front or Rear Side Nut | Receptacle Female Sockets | Shielded | Push-Pull | Brass | |||
Brass | Polyetheretherketone (PEEK) | Industrial Medical Military Testing Equipment & Measurement | 120 °C | -40 C | Ground | 7.5 A | Silver | IP50 - Dust Protected | Gold | Panel Mount | 0 | Chrome over Nickel | 2 | Metal | A | Bulkhead - Front or Rear Side Nut | Receptacle Female Sockets | Shielded | Push-Pull | Brass | |||
Brass | Polyetheretherketone (PEEK) | Industrial Medical Military Testing Equipment & Measurement | 120 °C | -40 C | Ground | 7.5 A | Silver | IP50 - Dust Protected | Gold | Panel Mount | 0 | Chrome over Nickel | Metal | A | Bulkhead - Front or Rear Side Nut | Receptacle Female Sockets | Shielded | Push-Pull | Brass | ||||
Brass | Polyetheretherketone (PEEK) | Industrial Medical Military Testing Equipment & Measurement | 120 °C | -40 C | Ground | 6 A | Silver | IP50 - Dust Protected | Gold | Panel Mount Through Hole | 0 | Chrome over Nickel | 5 | Metal | A | Bulkhead - Front or Rear Side Nut | Receptacle Female Sockets | Unshielded | Push-Pull | Brass | Solder | 366 V | |
Brass | Polyetheretherketone (PEEK) | Industrial Medical Military Testing Equipment & Measurement | 120 °C | -40 C | Ground | 6 A | Silver | IP50 - Dust Protected | Gold | Panel Mount Through Hole | 0 | Chrome over Nickel | 4 | Metal | A | Bulkhead - Front or Rear Side Nut | Receptacle Female Sockets | Unshielded | Push-Pull | Brass | Solder | 300 VDC | |
Brass | Polyetheretherketone (PEEK) | Industrial Medical Military Testing Equipment & Measurement | 120 °C | -40 C | Ground | 4 A | Silver | IP50 - Dust Protected | Gold | Panel Mount | 0 | Chrome over Nickel | 7 | Metal | A | Bulkhead - Front or Rear Side Nut | Receptacle Female Sockets | Shielded | Push-Pull | Brass | |||
Brass | Polyetheretherketone (PEEK) | Industrial Medical Military Testing Equipment & Measurement | 120 °C | -40 C | Ground | 4 A | Silver | IP50 - Dust Protected | Gold | Panel Mount | 0 | Chrome over Nickel | 10 | Metal | A | Bulkhead - Front or Rear Side Nut | Receptacle Female Sockets | Shielded | Push-Pull | Brass | |||
Brass | Polyetheretherketone (PEEK) | Industrial Medical Military Testing Equipment & Measurement | 120 °C | -40 C | Ground | 7.5 A | Silver | IP50 - Dust Protected | Gold | Panel Mount Through Hole | 0 | Chrome over Nickel | Metal | A | Bulkhead - Front or Rear Side Nut | Receptacle Female Sockets | Unshielded | Push-Pull | Brass | Solder | 400 V | ||
Brass | Polyetheretherketone (PEEK) | Industrial Medical Military Testing Equipment & Measurement | 120 °C | -40 C | Ground | 7.5 A | Silver | IP50 - Dust Protected | Gold | Panel Mount | 0 | Chrome over Nickel | 5 | Metal | A | Bulkhead - Front or Rear Side Nut | Receptacle Female Sockets | Shielded | Push-Pull | Brass |
