MXH Series

Catalog

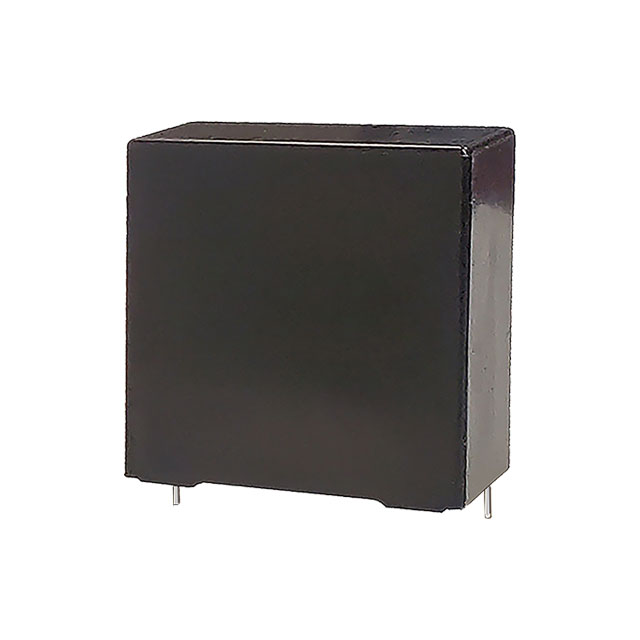

CAP FILM 0.1UF 10% 305VAC RADIAL

Part	Applications	Lead Spacing	Lead Spacing	Voltage Rating - AC	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Dielectric Material	Features	Capacitance	Mounting Type	Tolerance	Termination	Package / Case	Ratings	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [y]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
Cornell Dubilier Knowles MXH104K305E10	Automotive EMI RFI Suppression	15 mm	0.591 in	305 V	11.5 mm	0.453 in	Polypropylene (PP) Metallized	85C/85% Humidity Long Life Low ESL Low ESR THB	100000 pF	Through Hole	10 %	PC Pins	Radial	AEC-Q200 X2	0.709 in	5 mm	18 mm	0.197 "	-40 C	110 °C
Cornell Dubilier Knowles MXH684K305H11	Automotive EMI RFI Suppression	27.5 mm	1.083 in	305 V			Polypropylene (PP) Metallized	85C/85% Humidity Long Life Low ESL Low ESR THB	0.68 µF	Through Hole	10 %	PC Pins	Radial	AEC-Q200 X2	1.26 in		32 mm	0.354 in	-40 C	110 °C	9 mm
Cornell Dubilier Knowles MXH105K305G20	Automotive EMI RFI Suppression	22.5 mm	0.886 in	305 V		19.5 mm	Polypropylene (PP) Metallized	85C/85% Humidity Long Life Low ESL Low ESR THB	1 µF	Through Hole	10 %	PC Pins	Radial	AEC-Q200 X2	1.024 in		26 mm	0.394 in	-40 C	110 °C	10 mm	0.768 in
Cornell Dubilier Knowles MXH475K305H30	Automotive EMI RFI Suppression	27.5 mm	1.083 in	305 V	37.8 mm	1.488 in	Polypropylene (PP) Metallized	85C/85% Humidity Long Life Low ESL Low ESR THB	4.7 µF	Through Hole	10 %	PC Pins	Radial	AEC-Q200 X2	1.26 in		32 mm	0.866 in	-40 C	110 °C	22 mm
Cornell Dubilier Knowles MXH335K305H28	Automotive EMI RFI Suppression	27.5 mm	1.083 in	305 V			Polypropylene (PP) Metallized	85C/85% Humidity Long Life Low ESL Low ESR THB	3.3 µF	Through Hole	10 %	PC Pins	Radial	AEC-Q200 X2	1.26 in		32 mm	0.709 in	-40 C	110 °C	18 mm
Cornell Dubilier Knowles MXH334K305G11	Automotive EMI RFI Suppression	22.5 mm	0.886 in	305 V		17 mm	Polypropylene (PP) Metallized	85C/85% Humidity Long Life Low ESL Low ESR THB	0.33 µF	Through Hole	10 %	PC Pins	Radial	AEC-Q200 X2	1.024 in		26 mm	0.276 in	-40 C	110 °C	7 mm		0.669 "
Cornell Dubilier Knowles MXH224K305E14	Automotive EMI RFI Suppression	15 mm	0.591 in	305 V			Polypropylene (PP) Metallized	85C/85% Humidity Long Life Low ESL Low ESR THB	0.22 µF	Through Hole	10 %	PC Pins	Radial	AEC-Q200 X2	0.709 in		18 mm	0.335 in	-40 C	110 °C	8.5 mm		0.591 "	15 mm
Cornell Dubilier Knowles MXH156K305N40	Automotive EMI RFI Suppression	37.5 mm	1.476 in	305 V		46 mm	Polypropylene (PP) Metallized	85C/85% Humidity Long Life Low ESL Low ESR THB	15 µF	Through Hole	10 %	PC Pins	Radial	AEC-Q200 X2	1.654 in		42 mm	1.181 in	-40 C	110 °C	30 mm	1.811 in
Cornell Dubilier Knowles MXH684K305E21	Automotive EMI RFI Suppression	15 mm	0.591 in	305 V		19.5 mm	Polypropylene (PP) Metallized	85C/85% Humidity Long Life Low ESL Low ESR THB	0.68 µF	Through Hole	10 %	PC Pins	Radial	AEC-Q200 X2	0.709 in		18 mm	0.433 in	-40 C	110 °C	11 mm	0.768 in
Cornell Dubilier Knowles MXH105K305H20	Automotive EMI RFI Suppression	27.5 mm	1.083 in	305 V		20.8 mm	Polypropylene (PP) Metallized	85C/85% Humidity Long Life Low ESL Low ESR THB	1 µF	Through Hole	10 %	PC Pins	Radial	AEC-Q200 X2	1.26 in	11 mm	32 mm	0.433 in	-40 C	110 °C		0.819 in
