LPPB072 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K

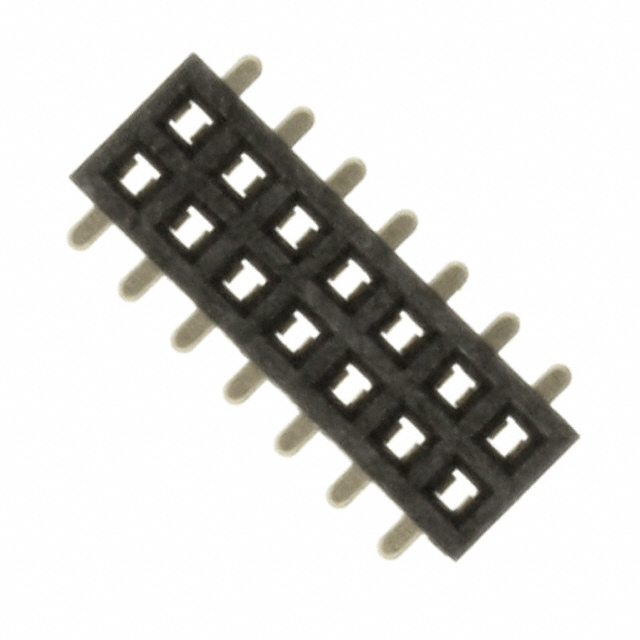

BOARD CONNECTOR, 14 CONTACT(S), 2 ROW(S), FEMALE, STRAIGHT, 0.05 INCH PITCH, SURFACE MOUNT TERMINAL, LOCKING
| Part | Contact Finish - Post | Contact Shape | Contact Finish - Mating | Insulation Material | Insulation Color | Pitch - Mating | Pitch - Mating | Contact Finish Thickness - Post | Insulation Height | Insulation Height | Material Flammability Rating | Connector Type | Contact Finish Thickness - Mating | Termination | Fastening Type | Operating Temperature [Max] | Operating Temperature [Min] | Number of Rows | Number of Positions | Mounting Type | Number of Positions Loaded | Row Spacing - Mating | Row Spacing - Mating | Contact Material | Contact Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sullins Connector Solutions | Gold | Square | Gold | Liquid Crystal Polymer (LCP) | Black | 0.05 in | 1.27 mm | Flash | 4.65 mm | 0.183 in | UL94 V-0 | Header Top or Bottom Entry | Flash | Solder | Push-Pull | 125 °C | -40 °C | 2 | 14 | Surface Mount | All | 0.05 in | 1.27 mm | Phosphor Bronze | Female Socket |
