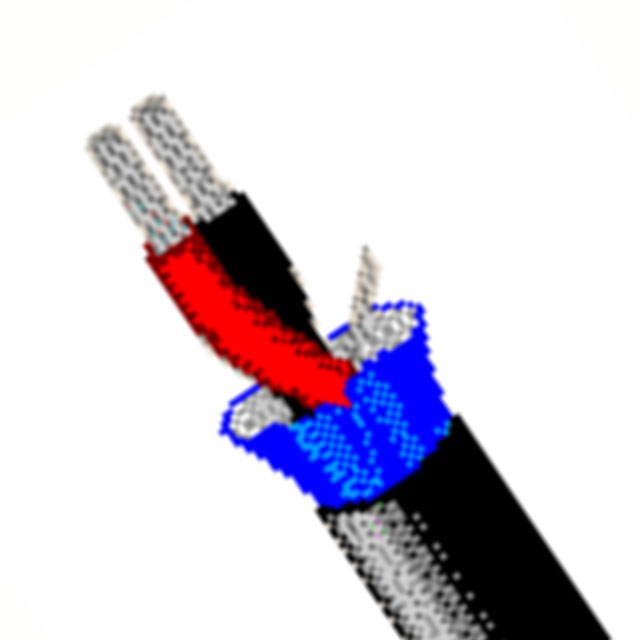

1266A Series
Manufacturer: Belden Inc.
Beta
⌘K
2 #22 PP FS PVC
| Part | Shield Coverage | Shield Material | Features | Conductor Insulation | Operating Temperature [Min] | Operating Temperature [Max] | Conductor Material | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket (Insulation) Material | Jacket Color | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Cable Type | Wire Gauge | Shield Type | Length | Length | Conductor Strand [custom] | Conductor Strand [custom] | Number of Conductors | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 100 % | Aluminum | Drain Wire | Polypropylene (PP) | -20 ░C | 60 °C | Copper Tinned | 0.02 " | 0.508 mm | Poly-Vinyl Chloride (PVC) | Green | 3.63 mm | 0.143 " | Multi-Conductor | 22 AWG | Foil | 304.8 m | 1000 ft | 30 AWG | 7 | 2 | ||
Belden Inc. | 100 % | Aluminum | Drain Wire | Polypropylene (PP) | -20 ░C | 60 °C | Copper Tinned | 0.02 " | 0.508 mm | Poly-Vinyl Chloride (PVC) | Yellow | 3.63 mm | 0.143 " | Multi-Conductor | 22 AWG | Foil | 304.8 m | 1000 ft | 30 AWG | 7 | 2 | ||
Belden Inc. | 100 % | Aluminum | Drain Wire | Polypropylene (PP) | -20 ░C | 60 °C | Copper Tinned | 0.02 " | 0.508 mm | Poly-Vinyl Chloride (PVC) | Gray | 3.63 mm | 0.143 " | Multi-Conductor | 22 AWG | Foil | 304.8 m | 1000 ft | 30 AWG | 7 | 2 | ||
Belden Inc. | 100 % | Aluminum | Drain Wire | Polypropylene (PP) | -20 ░C | 60 °C | Copper Tinned | 0.02 " | 0.508 mm | Poly-Vinyl Chloride (PVC) | Blue | 3.63 mm | 0.143 " | Multi-Conductor | 22 AWG | Foil | 304.8 m | 1000 ft | 30 AWG | 7 | 2 | ||
 Belden Inc. | 100 % | Aluminum | Drain Wire | Polypropylene (PP) | -20 ░C | 60 °C | Copper Tinned | 0.02 " | 0.508 mm | Poly-Vinyl Chloride (PVC) | Black | 3.63 mm | 0.143 " | Multi-Conductor | 22 AWG | Foil | 152.4 m 304.8 m | 500 ft 1000 ft | 30 AWG | 7 | 2 | 100 ft | 30.5 m |
Belden Inc. | 100 % | Aluminum | Drain Wire | Polypropylene (PP) | -20 ░C | 60 °C | Copper Tinned | 0.02 " | 0.508 mm | Poly-Vinyl Chloride (PVC) | Black | 3.63 mm | 0.143 " | Multi-Conductor | 22 AWG | Foil | 304.8 m | 1000 ft | 30 AWG | 7 | 2 |
