16491 Series

Catalog

PELTIER MS2,94,10,10,13,13,22 W8

Part	Current - Max	Size / Dimension Shape	Size / Dimension Length	Size / Dimension Width	Voltage - Max	Height	Features	Delta Tmax	Number of Stages	Operating Temperature	Maximum Power Dissipation (Qmax)

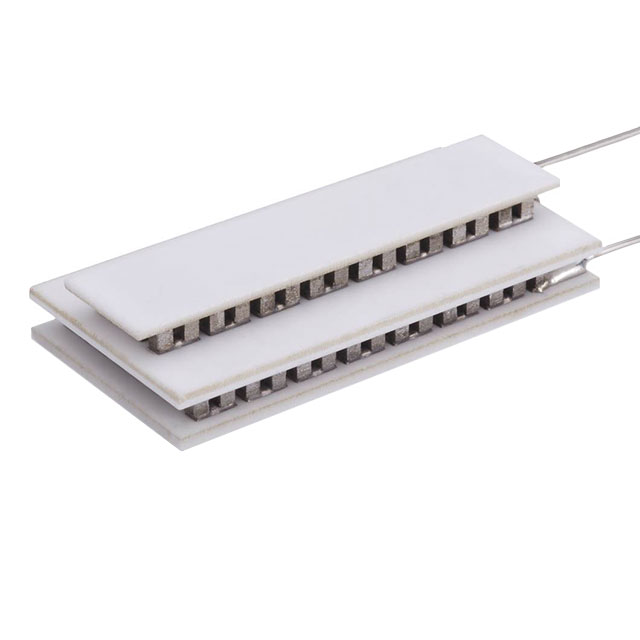

Laird Thermal Systems, Inc. 16491-304	2.9 A	Rectangular	29.7 mm	14.86 mm	7.5 V	6.04 mm	Lead Wires Non-Sealed	85 °C	2	80 °C	7.6 W

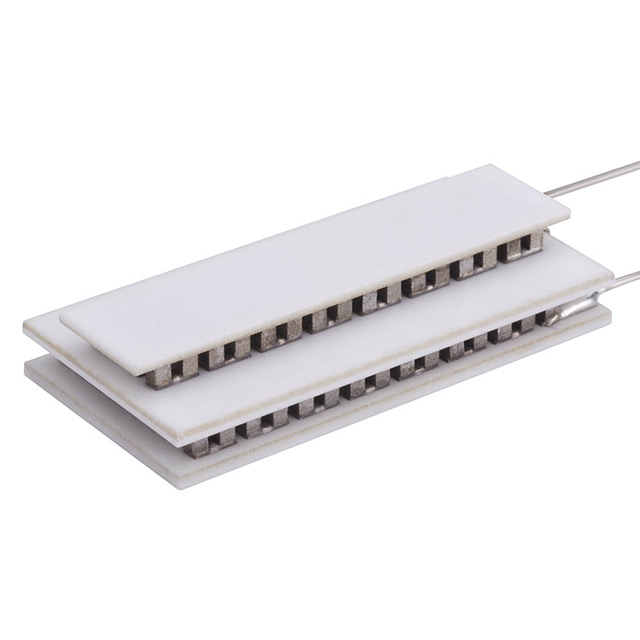

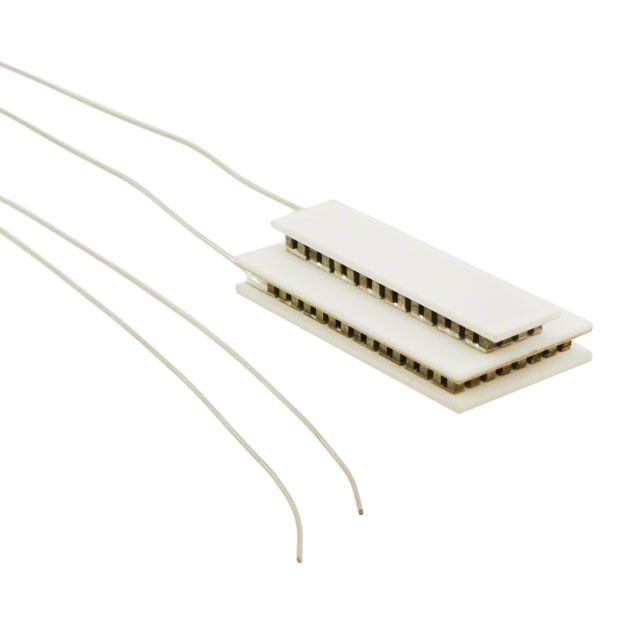

Laird Thermal Systems, Inc. 16491-302	2.9 A	Rectangular	29.7 mm	14.86 mm	7.5 V	5.84 mm	Lead Wires Non-Sealed	85 °C	2	80 °C	7.6 W
Laird Thermal Systems, Inc. 16491-303	2.9 A	Rectangular	29.7 mm	14.86 mm	7.5 V	5.84 mm	Lead Wires Non-Sealed	85 °C	2	80 °C	7.6 W
