THA0948 Series
Manufacturer: Delta Electronics
Beta
⌘K

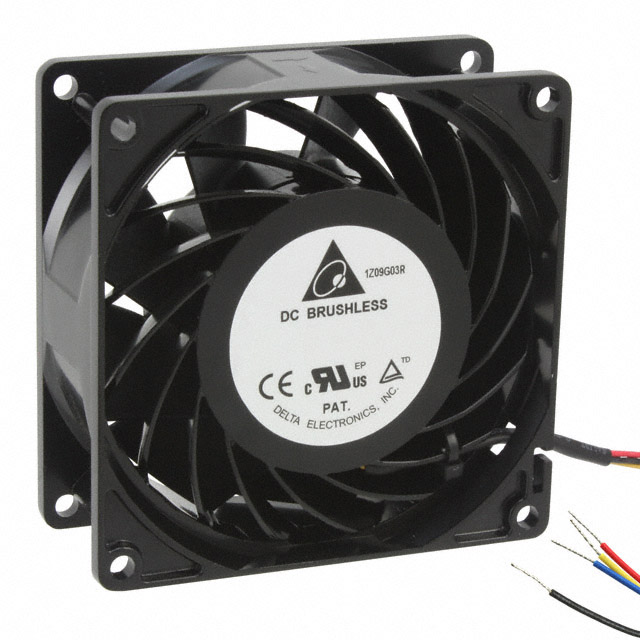

FAN AXIAL 92X38MM 48VDC WIRE
| Part | Voltage Range [Max] | Voltage Range [Min] | Material - Blade | Lifetime @ Temp. | Material - Frame | Current Rating (Amps) | Power (Watts) | Width [y] | RPM | Weight [custom] | Weight [custom] | Approval Agency | Fan Type | Termination | Features | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Rated | Air Flow | Air Flow | Bearing Type | Size / Dimension [y] | Size / Dimension [x] | Noise | Static Pressure | Static Pressure |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Delta Electronics | 56 VDC | 30 VDC | Plastic | 70000 Hrs | Aluminum | 1.4 A | 67.2 W | 38 mm | 9500 RPM | 1.1 lbs | 500 g | CE cURus TUV | Tubeaxial | 4 Wire Leads | Locked Rotor Protection PWM Control Speed Sensor (Tach) | -10 °C | 60 °C | 48 VDC | 5.31 m³/min | 189.7 CFM | Ball | 92 mm | 92 mm | 71 dB(A) | 3.02 in H2O | 752.3 Pa |
