RYZ014 Series
Manufacturer: Renesas Electronics Corporation
Beta
⌘K
EXPANSION BOARD, CELLULAR IOT MODULE ROHS COMPLIANT: YES
| Part | Interconnect System | Contents | Type | Utilized IC / Part | Function | Platform | Package / Case | Current - Transmitting [Min] | Current - Transmitting [Max] | Sensitivity | Modulation | Power - Output | Operating Temperature [Max] | Operating Temperature [Min] | Frequency | Data Rate | Antenna Type | Protocol | RF Family/Standard | Mounting Type | Serial Interfaces | Voltage - Supply [Min] | Voltage - Supply [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

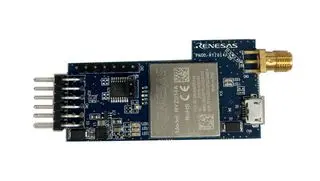

 Renesas Electronics Corporation | Pmod | Accessories Board(s) | RF | RYZ014A | Cellular | Pmod™ | |||||||||||||||||
 Renesas Electronics Corporation | SQN3330 | 138-LGA Module | 210 mA | 420 mA | -104 dBm | 16-QAM QPSK | 23 dBm | 85 °C | -40 C | 1.7 GHz 1.8 GHz 1.9 GHz 700 MHz 850 MHz | 921.6 kBaud | Antenna Not Included | GNSS LTE | Cellular | Surface Mount | GPIO JTAG UART | 3.1 V | 4.5 V |
