SDSA30 Series

Manufacturer: ChromeLED

Catalog

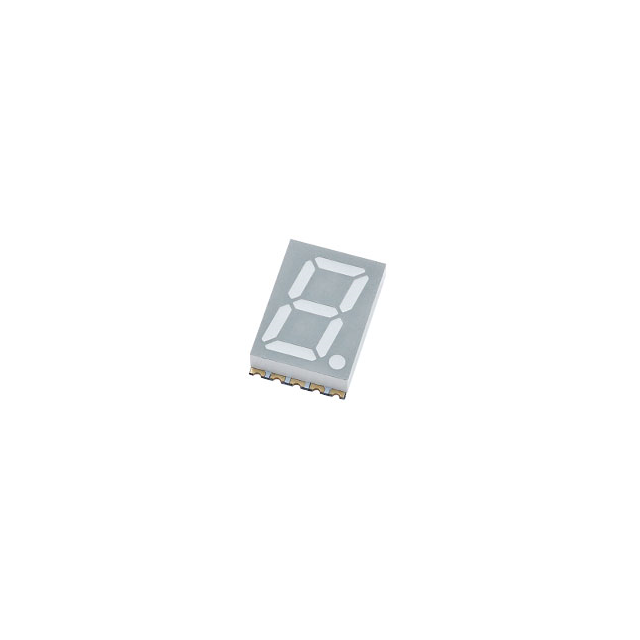

DISPLAY 7SEG 0.30" SGL RED 10SMD

Part	Voltage - Forward (Vf) (Typ)	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Color	Power Dissipation (Max) [Max]	Current - Test	Common Pin	Wavelength - Peak	Digit/Alpha Size	Digit/Alpha Size	Package / Case	Number of Characters	Millicandela Rating	Display Type	Power Dissipation (Max)
ChromeLED SDSA30RR1W	2 V	0.394 in	10 mm	3.85 mm	7.3 mm	0.287 in	0.152 "	Red	75 mw	20 mA	Common Anode	644 nm	7.62 mm	0.3 in	10-SMD No Lead	1	20 mcd	7-Segment
ChromeLED SDSA30G2W	2 V	0.394 in	10 mm	3.85 mm	7.3 mm	0.287 in	0.152 "	Green	70 mW	20 mA	Common Anode	571 nm	7.62 mm	0.3 in	10-SMD No Lead	1	25 mcd	7-Segment
ChromeLED SDSA30A2W	2 V	0.394 in	10 mm	3.85 mm	7.3 mm	0.287 in	0.152 "	Amber	70 mW	20 mA	Common Anode	606 nm	7.62 mm	0.3 in	10-SMD No Lead	1	45 mcd	7-Segment
ChromeLED SDSA30R2W	2 V	0.394 in	10 mm	3.85 mm	7.3 mm	0.287 in	0.152 "	Red	70 mW	20 mA	Common Anode	624 nm	7.62 mm	0.3 in	10-SMD No Lead	1	40 mcd	7-Segment
ChromeLED SDSA30Y2W	2 V	0.394 in	10 mm	3.85 mm	7.3 mm	0.287 in	0.152 "	Yellow	70 mW	20 mA	Common Anode	590 nm	7.62 mm	0.3 in	10-SMD No Lead	1	35 mcd	7-Segment
ChromeLED SDSA30B2W	3.2 V	0.394 in	10 mm	3.85 mm	7.3 mm	0.287 in	0.152 "	Blue		20 mA	Common Anode	470 nm	7.62 mm	0.3 in	10-SMD No Lead	1	30 mcd	7-Segment	120 mW
