MS272491 Series
Manufacturer: Keystone Electronics
Beta
⌘K

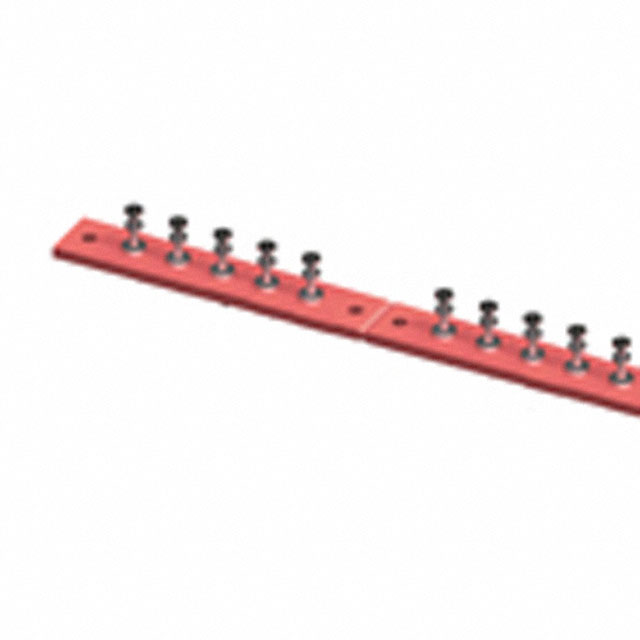

TURRET BOARD 10POS 0.375" SINGLE
| Part | Contact Material | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Contact Finish | Number of Rows | Number of Positions | Board Size [z] | Board Size [y] | Board Size [z] | Board Size [x] | Board Size [x] | Board Size [y] | Material - Board | Type | Terminal Type | Pitch | Pitch | Board Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Keystone Electronics | Brass | 0.12 in | 3.05 mm | Tin | 1 | 10 | 3.18 mm | 0.5 " | 0.125 in | 5.25 in | 133.35 mm | 12.7 mm | Glass Epoxy | Turret Board Scored | Double Turret Single End Turret | 9.53 mm | 0.375 in | |
Keystone Electronics | Brass | 0.12 in | 3.05 mm | Tin | 1 | 20 | 3.18 mm | 0.5 " | 0.125 in | 10.5 in | 266.7 mm | 12.7 mm | Glass Epoxy | Turret Board Scored | Double Turret Single End Turret | 9.53 mm | 0.375 in | |
Keystone Electronics | Brass | 0.12 in | 3.05 mm | Tin | 1 | 20 | 3.18 mm | 0.5 " | 0.125 in | 10.5 in | 266.7 mm | 12.7 mm | Glass Epoxy | Turret Board Scored | Double Turret Single End Turret | 9.53 mm | 0.375 in | |

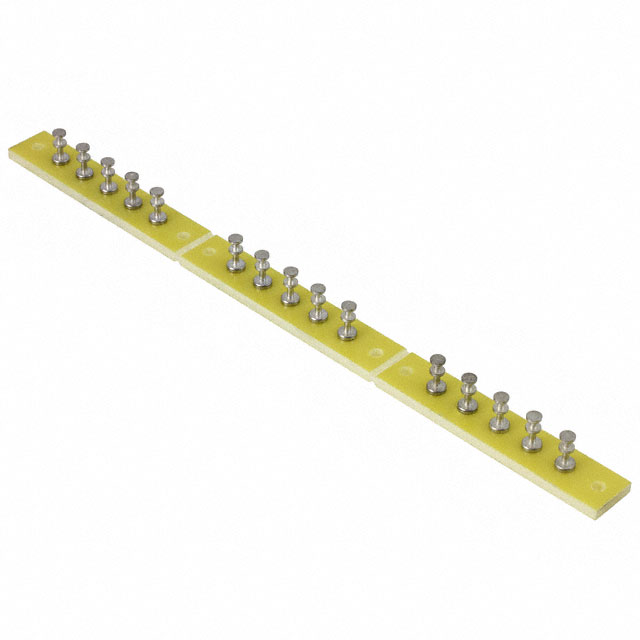

 Keystone Electronics | Brass | 0.12 in | 3.05 mm | Tin | 1 | 15 | 0.5 " | 7.875 " | 200.03 mm | Glass Epoxy | Turret Board Scored | Double Turret Single End Turret | 9.53 mm | 0.375 in | ||||
Keystone Electronics | Brass | 0.12 in | 3.05 mm | Tin | 1 | 5 | 3.18 mm | 0.5 " | 0.125 in | 2.625 in | 66.7 mm | 12.7 mm | Glass Epoxy | Turret Board | Double Turret Single End Turret | 9.53 mm | 0.375 in |
