1528A Series
Manufacturer: Belden Inc.
Beta
⌘K

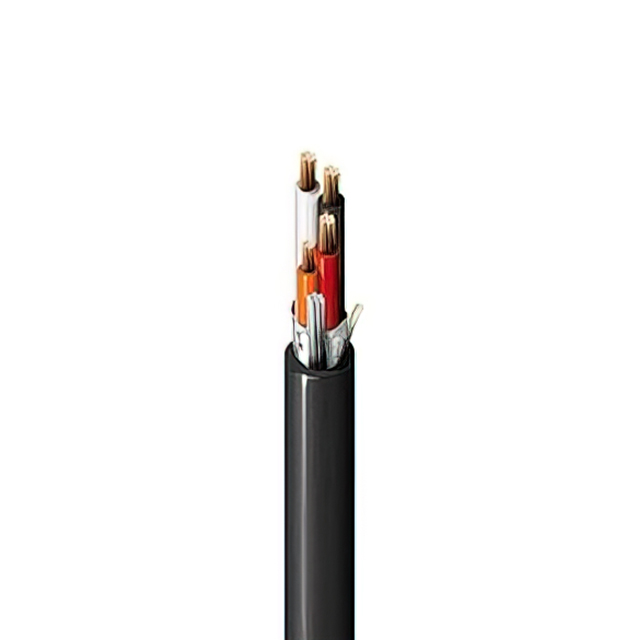

MULTI-PAIR 7COND 16/22AWG
| Part | Shield Material | Shield Coverage | Cable Type | Number of Conductors | Features | Conductor Insulation | Jacket (Insulation) Material | Wire Gauge | Length | Length [x] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Voltage | Conductor Material | Ratings | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket Color | Operating Temperature [Min] | Operating Temperature [Max] | Shield Type | Conductor Strand [y] | Conductor Strand [x] | Usage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum | 100 % | Multi-Pair | 7 | Drain Wire Rip Cord | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) | 16 AWG 22 AWG | 2286 m | 7500 ft | 0.465 in | 11.81 mm | 300 VDC | Copper Bare | UL Style 2464 | 0.053 " | 1.346 mm | Black | -30 ░C | 105 ░C | Foil | 24 AWG 30 AWG | 7 | Instrumentation |
