325011 Series

Catalog

CONN BARRIER STRP 24CIRC 0.325"

Part	Material - Insulation	Operating Temperature	Material Flammability Rating	Mounting Type	Pitch	Pitch	Current Rating (Amps)	Terminal Block Type	Bottom Termination	Wire Gauge [Min]	Wire Gauge [Max]	Barrier Type	Number of Rows	Features	Number of Circuits	Top Termination	Voltage Rating	Number of Wire Entries	Number of Circuits [custom]
Curtis Industries 325011-24-0	Polypropylene (PP)	105 C	UL94 V-0	Chassis Panel Through Hole	0.325 in	8.26 mm	15 A	Barrier Block	PC Pin	14 AWG	22 AWG	2 Wall (Dual)	1	Flange	24	Screws	300 VDC

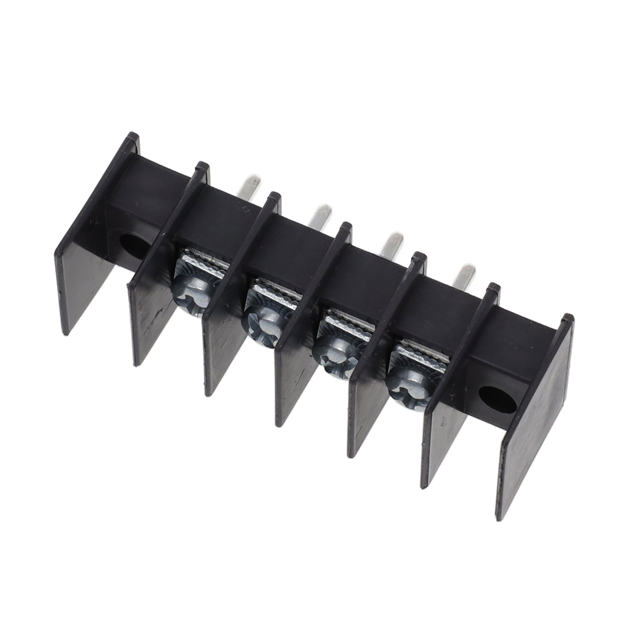

Curtis Industries 325011-04-0	Polypropylene (PP)	105 C	UL94 V-0	Chassis Panel Through Hole	0.325 in	8.26 mm	15 A	Barrier Block	PC Pin	14 AWG	22 AWG	2 Wall (Dual)	1	Flange	4	Screws	300 VDC	4
Curtis Industries 325011-18-0	Polypropylene (PP)	105 C	UL94 V-0	Chassis Panel Through Hole	0.325 in	8.26 mm	15 A	Barrier Block	PC Pin	14 AWG	22 AWG	2 Wall (Dual)	1	Flange	18	Screws	300 VDC	18
Curtis Industries 325011-17-0	Polypropylene (PP)	105 C	UL94 V-0	Chassis Panel Through Hole	0.325 in	8.26 mm	15 A	Barrier Block	PC Pin	14 AWG	22 AWG	2 Wall (Dual)	1	Flange	17	Screws	300 VDC	17

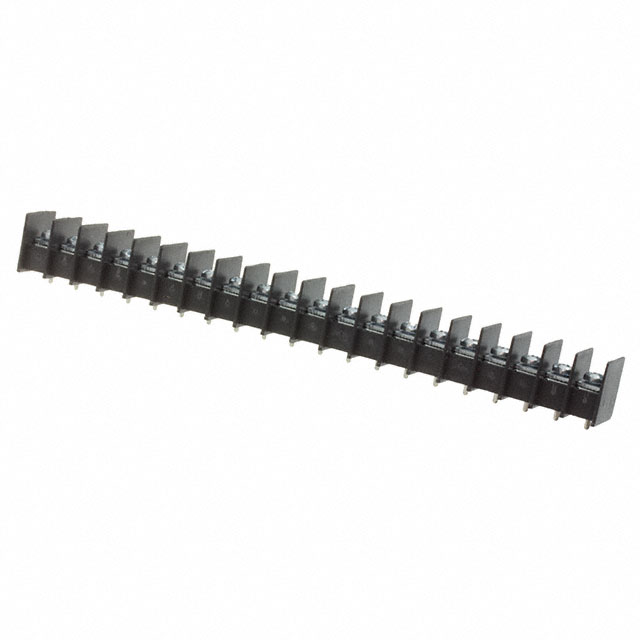

Curtis Industries 325011-20-0	Polypropylene (PP)	105 C	UL94 V-0	Chassis Panel Through Hole	0.325 in	8.26 mm	15 A	Barrier Block	PC Pin	14 AWG	22 AWG	2 Wall (Dual)	1	Flange	20	Screws	300 VDC	20

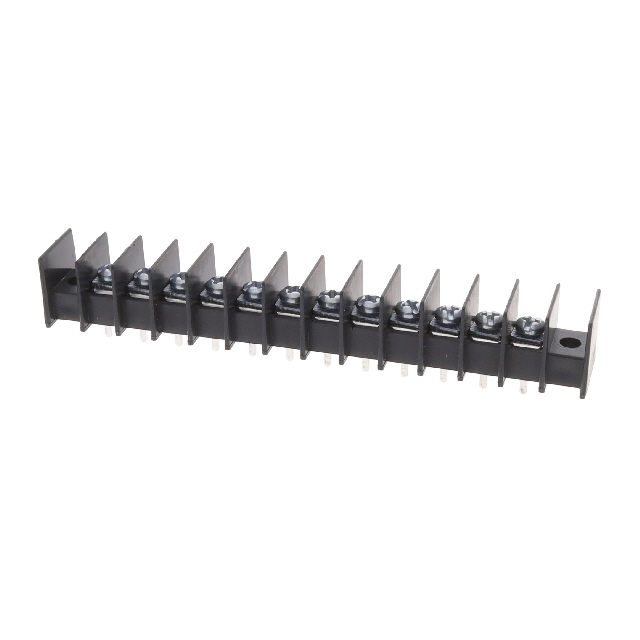

Curtis Industries 325011-12-0	Polypropylene (PP)	105 C	UL94 V-0	Chassis Panel Through Hole	0.325 in	8.26 mm	15 A	Barrier Block	PC Pin	14 AWG	22 AWG	2 Wall (Dual)	1	Flange	12	Screws	300 VDC	12

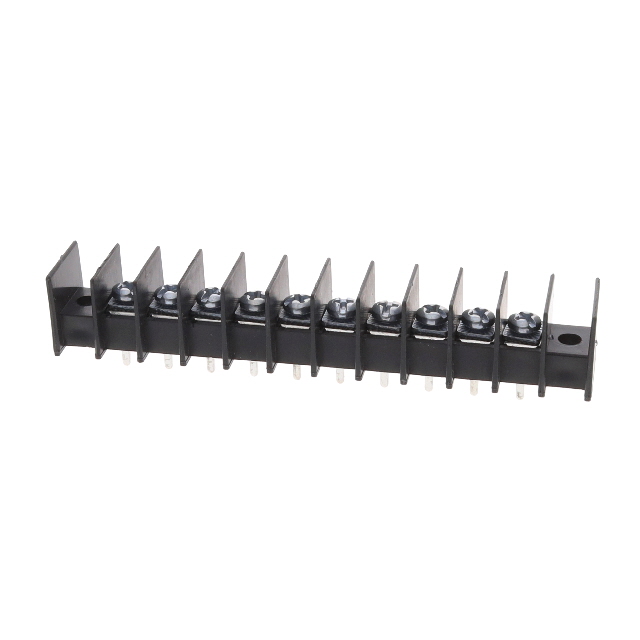

Curtis Industries 325011-10-0	Polypropylene (PP)	105 C	UL94 V-0	Chassis Panel Through Hole	0.325 in	8.26 mm	15 A	Barrier Block	PC Pin	14 AWG	22 AWG	2 Wall (Dual)	1	Flange	10	Screws	300 VDC	10

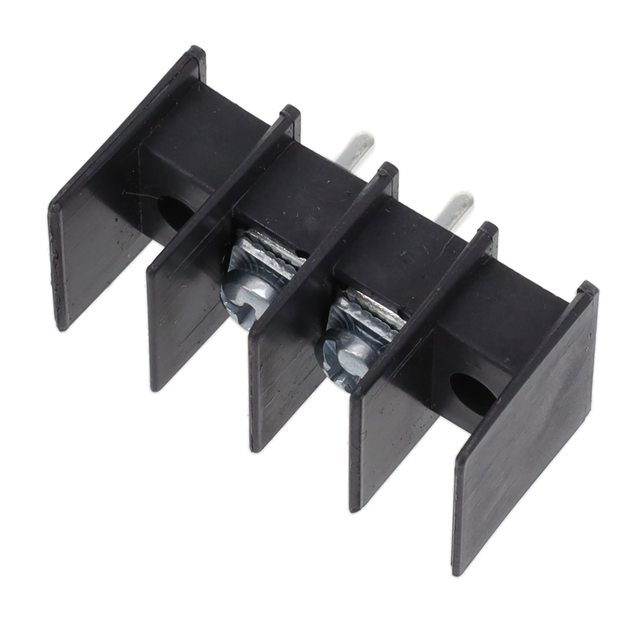

Curtis Industries 325011-02-0	Polypropylene (PP)	105 C	UL94 V-0	Chassis Panel Through Hole	0.325 in	8.26 mm	15 A	Barrier Block	PC Pin	14 AWG	22 AWG	2 Wall (Dual)	1	Flange	2	Screws	300 VDC	2
Curtis Industries 325011-26-0	Polypropylene (PP)	105 C	UL94 V-0	Chassis Panel Through Hole	0.325 in	8.26 mm	15 A	Barrier Block	PC Pin	14 AWG	22 AWG	2 Wall (Dual)	1	Flange	26	Screws	300 VDC	26
Curtis Industries 325011-23-0	Polypropylene (PP)	105 C	UL94 V-0	Chassis Panel Through Hole	0.325 in	8.26 mm	15 A	Barrier Block	PC Pin	14 AWG	22 AWG	2 Wall (Dual)	1	Flange		Screws	300 VDC	23	23
