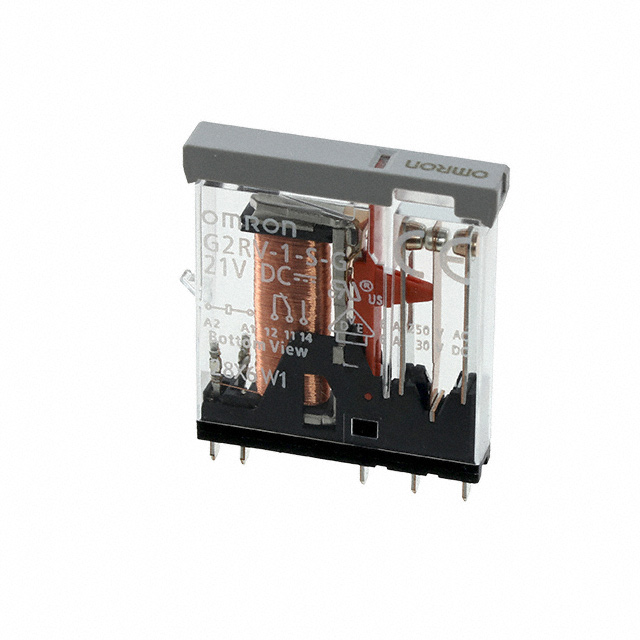

G2RV-1-S Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
RELAY GEN PURPOSE SPDT 50MA 48V
| Part | Coil Voltage | Mounting Type | Coil Resistance | Relay Type | Termination Style | Coil Current | Approval Agency | Switching Voltage | Contact Rating (Current) | Operating Temperature [Min] | Operating Temperature [Max] | Contact Form | Contact Material | Must Release Voltage | Must Operate Voltage | Coil Type | Operate Time | Load - Max Switching | Release Time | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Omron Electronics Inc-EMC Div | 48 VDC | Socketable | 9231 Ohms | General Purpose | Plug In | 5.2 mA | CE cULus TUV | 30 VAC 36 VDC | 50 mA | -40 °C | 55 °C | SPDT (1 Form C) | Gold (Au) Silver Tin Indium (AgSnIn) | 4.8 VDC | 38.4 VDC | Non Latching | 20 ms | |||

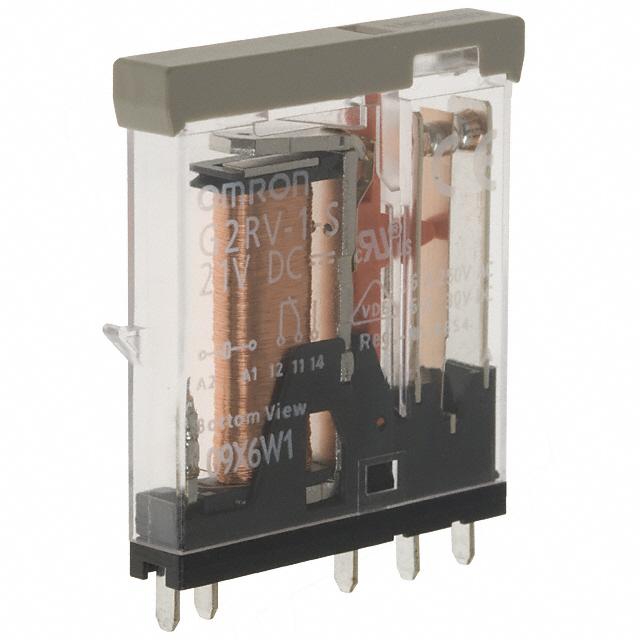

Omron Electronics Inc-EMC Div | 21 VDC | Through Hole | General Purpose | PC Pin | CE cULus TUV | 6 A | -40 °C | 55 °C | SPDT (1 Form C) | Gold (Au) Silver (Ag) | Non Latching | 20 ms | ||||||||
 Omron Electronics Inc-EMC Div | 24 VDC | Socketable | General Purpose | Plug In | 13.3 mA | CE cULus TUV | 125 VDC 440 VAC | 6 A | -40 °C | 55 °C | SPDT (1 Form C) | Silver Tin Indium (AgSnIn) | 2.4 VDC | 19.2 VDC | Non Latching | 20 ms | 750 W 2640 VA | |||
 Omron Electronics Inc-EMC Div | 24 VDC | Socketable | 1.77 kOhms | General Purpose | Plug In | 13.5 mA | CE cULus TUV | 125 VDC 440 VAC | 6 A | -40 °C | 55 °C | SPDT (1 Form C) | Silver Alloy | 2.4 VDC | 19.2 VDC | Non Latching | 20 ms | 750 W 2640 VA | 20 ms | |

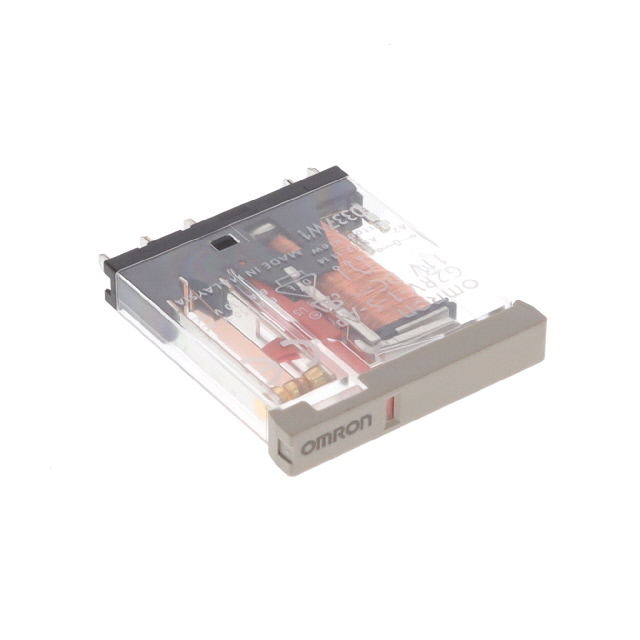

Omron Electronics Inc-EMC Div | 11 VDC | Through Hole | General Purpose | PC Pin | CE cULus TUV | 6 A | -40 °C | 55 °C | SPDT (1 Form C) | Silver Alloy | Non Latching | 20 ms | ||||||||
Omron Electronics Inc-EMC Div | 11 VDC | Through Hole | General Purpose | PC Pin | CE cULus TUV | 6 A | -40 °C | 55 °C | SPDT (1 Form C) | Gold (Au) Silver (Ag) | Non Latching | 20 ms | ||||||||

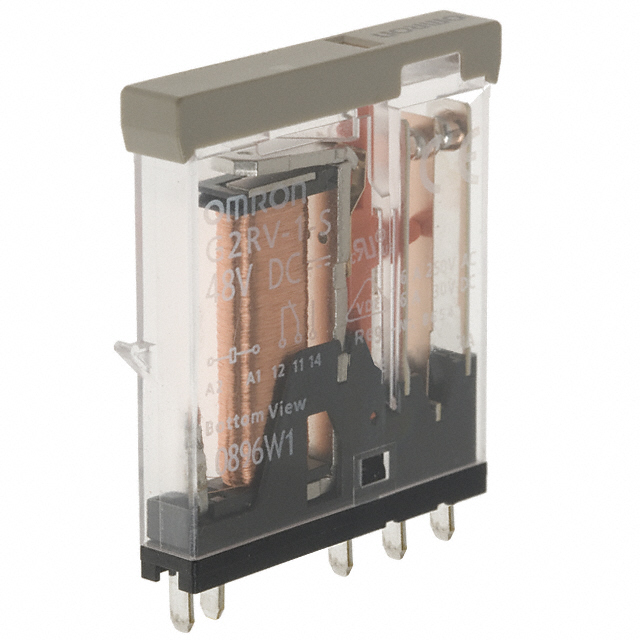

 Omron Electronics Inc-EMC Div | 48 VDC | Socketable | 9.23 kOhms | General Purpose | Plug In | 5.2 mA | CE cULus TUV | 125 VDC 440 VAC | 6 A | -40 °C | 55 °C | SPDT (1 Form C) | Silver Tin Indium (AgSnIn) | 4.8 VDC | 38.4 VDC | Non Latching | 20 ms | 750 W 2640 VA | ||
Omron Electronics Inc-EMC Div | 21 VDC | Socketable | General Purpose | Plug In | 13.3 mA | CE cULus TUV | 125 VDC 440 VAC | 6 A | -40 °C | 55 °C | SPDT (1 Form C) | Silver Tin Indium (AgSnIn) | 2.4 VDC | 19.2 VDC | Non Latching | 20 ms | 750 W 2640 VA | Test Button | ||
 Omron Electronics Inc-EMC Div | 12 VDC | Socketable | 441 Ohms | General Purpose | Plug In | 27.2 mA | CE cULus TUV | 30 VAC 36 VDC | 50 mA | -40 °C | 55 °C | SPDT (1 Form C) | Gold (Au) Silver Tin Indium (AgSnIn) | 1.2 VDC | 9.6 VDC | Non Latching | 20 ms | |||
Omron Electronics Inc-EMC Div | 48 VDC | Socketable | 9.23 kOhms | General Purpose | Plug In | 5.2 mA | CE cULus TUV | 125 VDC 440 VAC | 6 A | -40 °C | 55 °C | SPDT (1 Form C) | Silver Alloy | 4.8 VDC | 38.4 VDC | Non Latching | 20 ms | 750 W 2640 VA | 20 ms |
