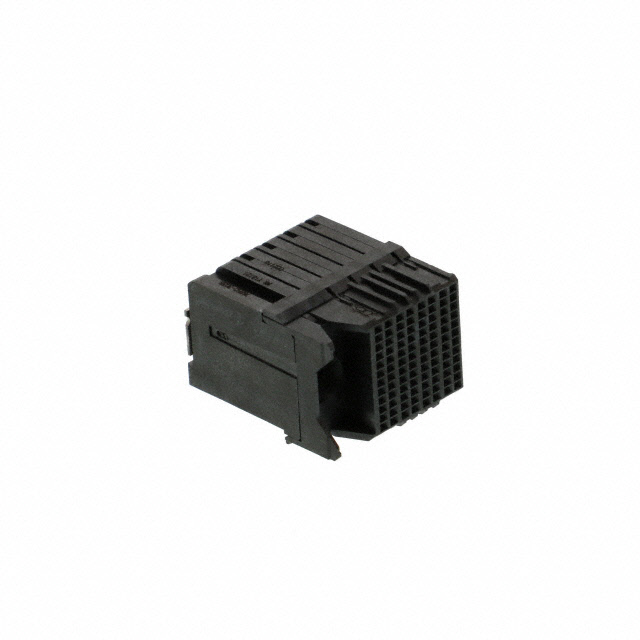

076850 Series

Manufacturer: Molex

Catalog

CONN RCPT IMPACT 120POS EDGE MNT

Part	Connector Type	Termination	Contact Finish	Mounting Type	Contact Layout, Typical	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating	Pitch [x]	Pitch [x]	Number of Columns	Features	Number of Positions	Number of Positions Loaded	Number of Rows	Color	Contact Finish Thickness	Contact Finish Thickness	Connector Style
Molex 0768505020	Receptacle Female Sockets	Press-Fit	Gold	Board Edge Right Angle Through Hole	40 Differential Pairs	UL94 V-0	85 °C	-55 °C	30 VDC	0.053 in	1.35 mm	10	Board Guide	120	All	12	Black	0.76 Ám	30 Áin
Molex 0768505006	Receptacle Female Sockets	Press-Fit	Gold	Board Edge Right Angle Through Hole	24 Differential Pairs	UL94 V-0	85 °C	-55 °C	30 VDC	0.053 in	1.35 mm	6	Board Guide	72	All	12	Black	0.76 Ám	30 Áin
Molex 0768503008	Receptacle Female Sockets	Press-Fit	Gold	Board Edge Right Angle Through Hole	32 Differential Pairs	UL94 V-0	85 °C	-55 °C	30 VDC	0.053 in	1.35 mm	8	Board Guide	96	All	12	Black	0.76 Ám	30 Áin	Guide Left Impact
Molex 0768503006	Receptacle Female Sockets	Press-Fit	Gold	Board Edge Right Angle Through Hole	24 Differential Pairs	UL94 V-0	85 °C	-55 °C	30 VDC	0.053 in	1.35 mm	6	Board Guide	72	All	12	Black	0.76 Ám	30 Áin	Guide Left Impact
Molex 0768501020	Receptacle Female Sockets	Press-Fit	Gold	Board Edge Right Angle Through Hole	40 Differential Pairs	UL94 V-0	85 °C	-55 °C	30 VDC	0.053 in	1.35 mm	10		120	All	12	Black	0.76 Ám	30 Áin	Impact
Molex 0768501008	Receptacle Female Sockets	Press-Fit	Gold	Board Edge Right Angle Through Hole	32 Differential Pairs	UL94 V-0	85 °C	-55 °C	30 VDC	0.053 in	1.35 mm	8		96	All	12	Black	0.76 Ám	30 Áin	Impact
Molex 0768503038	Receptacle Female Sockets	Press-Fit	Gold	Board Edge Right Angle Through Hole	32 Differential Pairs	UL94 V-0	85 °C	-55 °C	30 VDC	0.053 in	1.35 mm	8	Board Guide	96	All	12	Black	0.76 Ám	30 Áin	Guide Left Impact
Molex 0768503020	Receptacle Female Sockets	Press-Fit	Gold	Board Edge Right Angle Through Hole	40 Differential Pairs	UL94 V-0	85 °C	-55 °C	30 VDC	0.053 in	1.35 mm	10	Board Guide	120	All	12	Black	0.76 Ám	30 Áin	Guide Left Impact
Molex 0768505008	Receptacle Female Sockets	Press-Fit	Gold	Board Edge Right Angle Through Hole	32 Differential Pairs	UL94 V-0	85 °C	-55 °C	30 VDC	0.053 in	1.35 mm	8	Board Guide	96	All	12	Black	0.76 Ám	30 Áin
Molex 0768503010	Receptacle Female Sockets	Press-Fit	Gold	Board Edge Right Angle Through Hole	40 Differential Pairs	UL94 V-0	85 °C	-55 °C	30 VDC	0.053 in	1.35 mm	10	Board Guide	120	All	12	Black	0.76 Ám	30 Áin	Guide Left Impact
