DS25MB100 Series

2.5-Gbps 2:1/1:2 CML mux/buffer with transmit pre-emphasis and receive equalization

Catalog

2.5-Gbps 2:1/1:2 CML mux/buffer with transmit pre-emphasis and receive equalization

Part	Output	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Mounting Type	Delay Time	Package / Case	Number of Channels [custom]	Number of Channels [custom]	Signal Conditioning	Data Rate (Max)	Input	Type	Voltage - Supply [Max]	Voltage - Supply [Min]

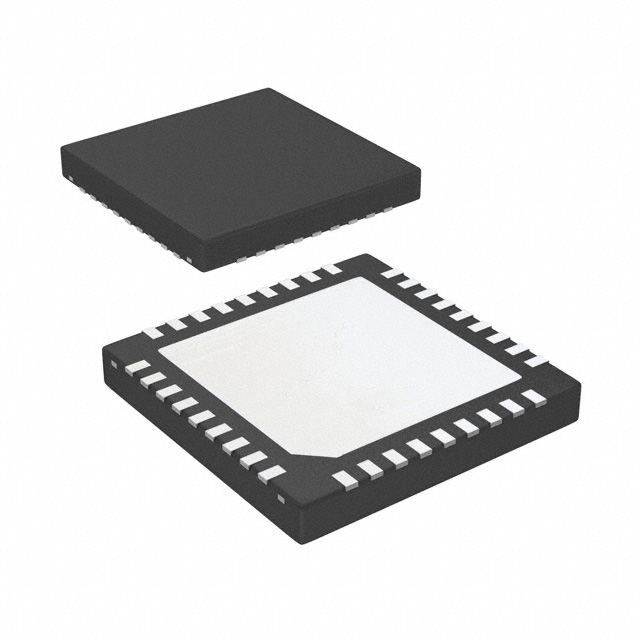

Texas Instruments DS25MB100TSQE/NOPB	CML	85 °C	-40 °C	36-WQFN (6x6)	Surface Mount	1 ns	36-WFQFN Exposed Pad	1 x 1:2	2:1	Input Equalization Output Pre-Emphasis	2.5 Gbps	CML	Buffer Multiplexer	3.465 V	3.135 V
Texas Instruments DS25MB100TSQ/NOPB	CML	85 °C	-40 °C	36-WQFN (6x6)	Surface Mount	1 ns	36-WFQFN Exposed Pad	1 x 1:2	2:1	Input Equalization Output Pre-Emphasis	2.5 Gbps	CML	Buffer Multiplexer	3.465 V	3.135 V
Texas Instruments DS25MB100TSQX/NOPB	CML	85 °C	-40 °C	36-WQFN (6x6)	Surface Mount	1 ns	36-WFQFN Exposed Pad	1 x 1:2	2:1	Input Equalization Output Pre-Emphasis	2.5 Gbps	CML	Buffer Multiplexer	3.465 V	3.135 V

Catalog

2.5-Gbps 2:1/1:2 CML mux/buffer with transmit pre-emphasis and receive equalization

Key Features

• 2:1 Multiplexer and 1:2 Buffer0.25-Gbps to 2.5-Gbps Fully Differential Data PathsFixed Input EqualizationProgrammable Output Pre-EmphasisIndependent Pre-Emphasis ControlsProgrammable Loopback ModesOn-Chip TerminationsESD Rating of 6-kV HBM3.3-V SupplyLow power, 0.45 W TypicalLead-Less WQFN-36 Package–40°C to +85°C Operating Temperature Range2:1 Multiplexer and 1:2 Buffer0.25-Gbps to 2.5-Gbps Fully Differential Data PathsFixed Input EqualizationProgrammable Output Pre-EmphasisIndependent Pre-Emphasis ControlsProgrammable Loopback ModesOn-Chip TerminationsESD Rating of 6-kV HBM3.3-V SupplyLow power, 0.45 W TypicalLead-Less WQFN-36 Package–40°C to +85°C Operating Temperature Range

Description

The DS25MB100 device is a signal conditioning 2:1 multiplexer and 1:2 fan-out buffer designed for use in backplane-redundancy or cable driving applications. Signal conditioning features include continuous time linear equalization (CTLE) and programmable output pre-emphasis that enable data communication in FR4 backplane up to 2.5 Gbps. Each input stage has a fixed equalizer to reduce ISI distortion from board traces. All output drivers have four selectable levels of pre-emphasis to compensate for transmission losses from long FR4 backplane or cable attenuation reducing deterministic jitter. The pre-emphasis levels can be independently controlled for the line-side and switch-side drivers. The internal loopback paths from switch-side input to switch-side output enable at-speed system testing. All receiver inputs are internally terminated with 100-Ω differential terminating resistors. All driver outputs are internally terminated with 50-Ω terminating resistors to VCC. The DS25MB100 device is a signal conditioning 2:1 multiplexer and 1:2 fan-out buffer designed for use in backplane-redundancy or cable driving applications. Signal conditioning features include continuous time linear equalization (CTLE) and programmable output pre-emphasis that enable data communication in FR4 backplane up to 2.5 Gbps. Each input stage has a fixed equalizer to reduce ISI distortion from board traces. All output drivers have four selectable levels of pre-emphasis to compensate for transmission losses from long FR4 backplane or cable attenuation reducing deterministic jitter. The pre-emphasis levels can be independently controlled for the line-side and switch-side drivers. The internal loopback paths from switch-side input to switch-side output enable at-speed system testing. All receiver inputs are internally terminated with 100-Ω differential terminating resistors. All driver outputs are internally terminated with 50-Ω terminating resistors to VCC.
