892-007 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE SINGLE FML 7POS 0.100

Part	Termination Rows	Material - Insulation	Number of Positions	Card Type	Card Thickness [Max]	Card Thickness [Min]	Gender	Contact Type	Color	Contact Finish	Flange Feature	Termination	Read Out	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Number of Positions/Bay/Row	Pitch	Pitch	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 892-007-544-107	1	Polyphenylene Sulfide (PPS)	7	Non Specified - Single Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Cantilever	Black	Gold	Flush Mount M3 Threaded Insert Top Opening	Wire Wrap	Single	125 °C	-40 C	Copper Alloy	7	0.1 "	2.54 mm	Through Hole	0.25 Ám	10 Áin	1

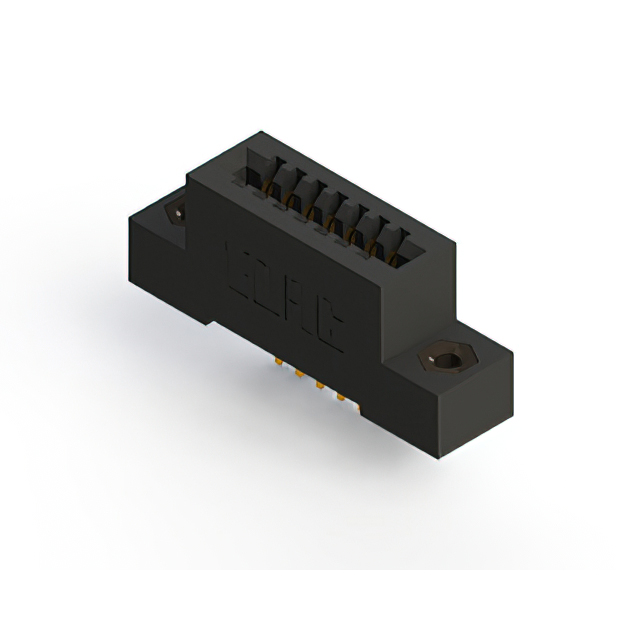

EDAC Inc. 892-007-523-108	1	Polyphenylene Sulfide (PPS)	7	Non Specified - Single Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Cantilever	Black	Gold	4-40 Flush Mount Threaded Insert Top Opening	Solder	Single	125 °C	-40 C	Copper Alloy	7	0.1 "	2.54 mm	Through Hole	0.25 Ám	10 Áin	1

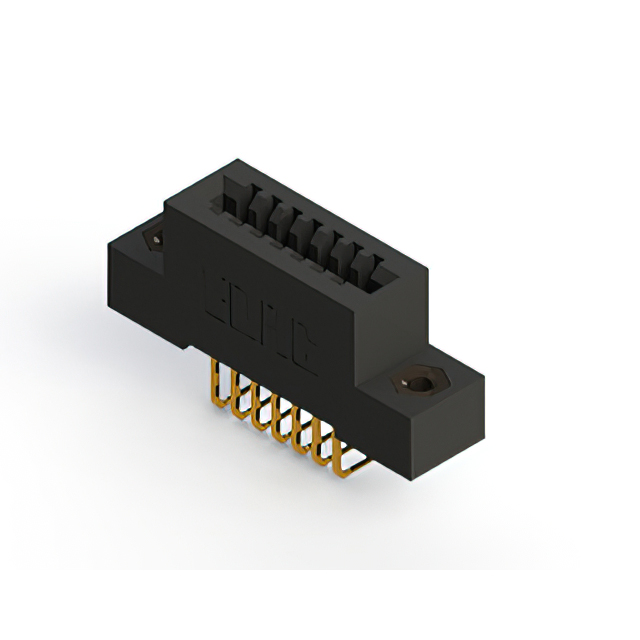

EDAC Inc. 892-007-558-108	1	Polyphenylene Sulfide (PPS)	7	Non Specified - Single Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Cantilever	Black	Gold	4-40 Flush Mount Threaded Insert Top Opening	Solder	Single	125 °C	-40 C	Copper Alloy	7	0.1 "	2.54 mm	Right Angle Through Hole	0.25 Ám	10 Áin	1

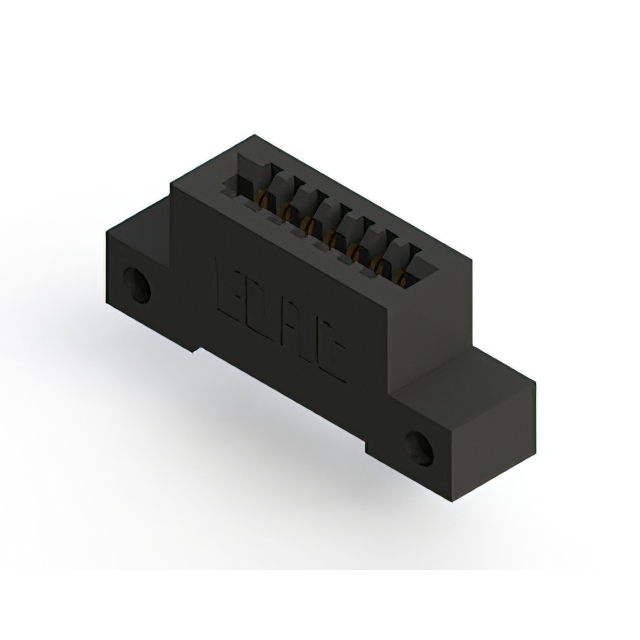

EDAC Inc. 892-007-521-112	1	Polyphenylene Sulfide (PPS)	7	Non Specified - Single Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Cantilever	Black	Gold	Flush Mount Side Opening Unthreaded	Solder	Single	125 °C	-40 C	Copper Alloy	7	0.1 "	2.54 mm	Through Hole	0.25 Ám	10 Áin	1	0.128 "	3.25 mm

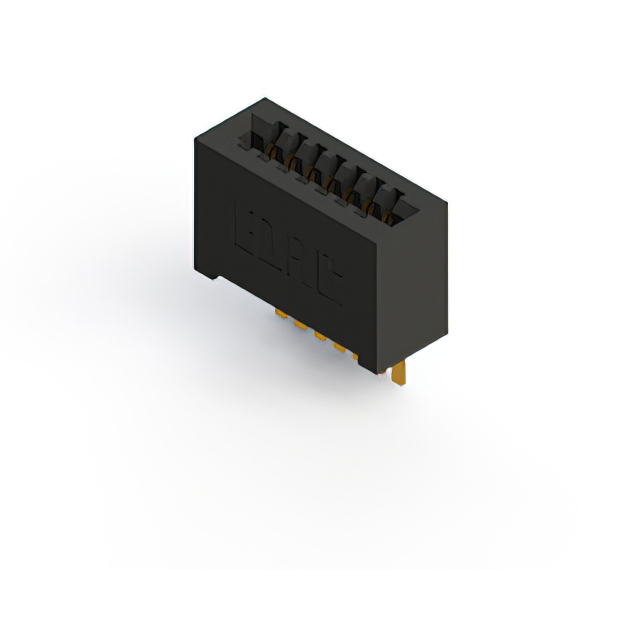

EDAC Inc. 892-007-544-101	1	Polyphenylene Sulfide (PPS)	7	Non Specified - Single Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Cantilever	Black	Gold		Wire Wrap	Single	125 °C	-40 C	Copper Alloy	7	0.1 "	2.54 mm	Through Hole	0.25 Ám	10 Áin	1

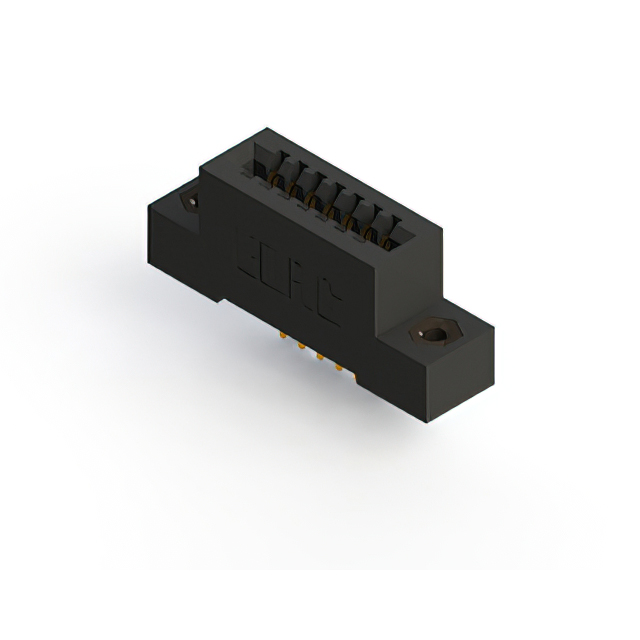

EDAC Inc. 892-007-542-108	1	Polyphenylene Sulfide (PPS)	7	Non Specified - Single Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Cantilever	Black	Gold	4-40 Flush Mount Threaded Insert Top Opening	Wire Wrap	Single	125 °C	-40 C	Copper Alloy	7	0.1 "	2.54 mm	Through Hole	0.25 Ám	10 Áin	1

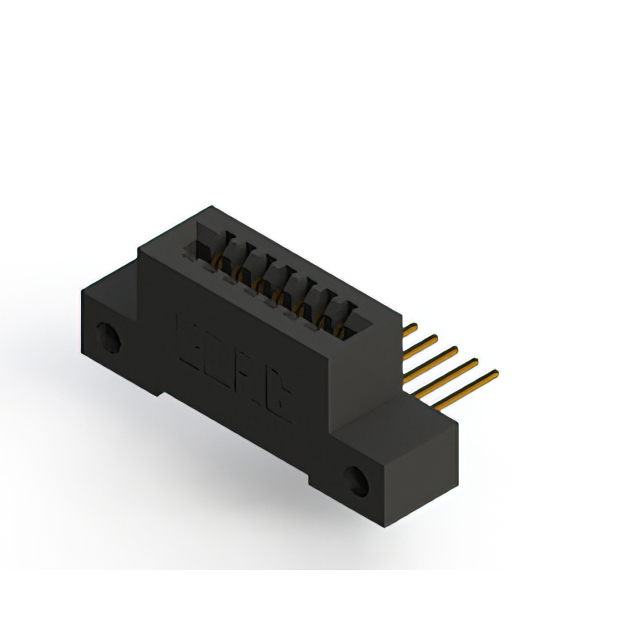

EDAC Inc. 892-007-559-112	1	Polyphenylene Sulfide (PPS)	7	Non Specified - Single Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Cantilever	Black	Gold	Flush Mount Side Opening Unthreaded	Solder	Single	125 °C	-40 C	Copper Alloy	7	0.1 "	2.54 mm	Right Angle Through Hole	0.25 Ám	10 Áin	1	0.128 "	3.25 mm

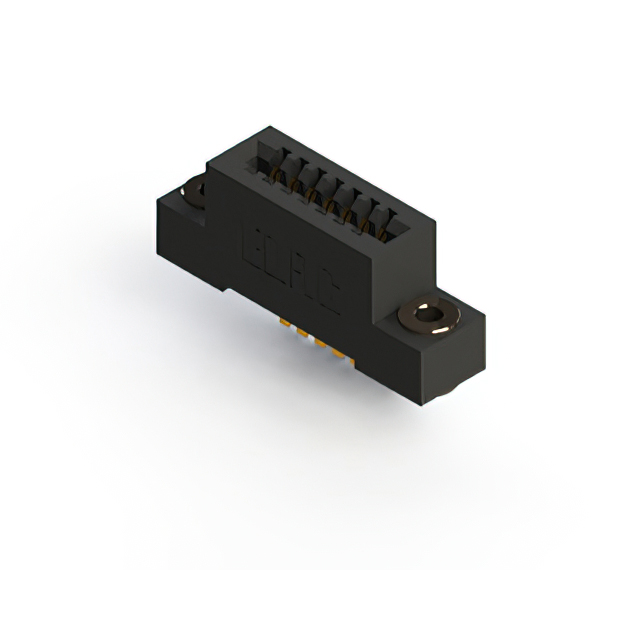

EDAC Inc. 892-007-544-103	1	Polyphenylene Sulfide (PPS)	7	Non Specified - Single Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Cantilever	Black	Gold	Floating Bobbin Flush Mount	Wire Wrap	Single	125 °C	-40 C	Copper Alloy	7	0.1 "	2.54 mm	Through Hole	0.25 Ám	10 Áin	1	0.116 "	2.95 mm

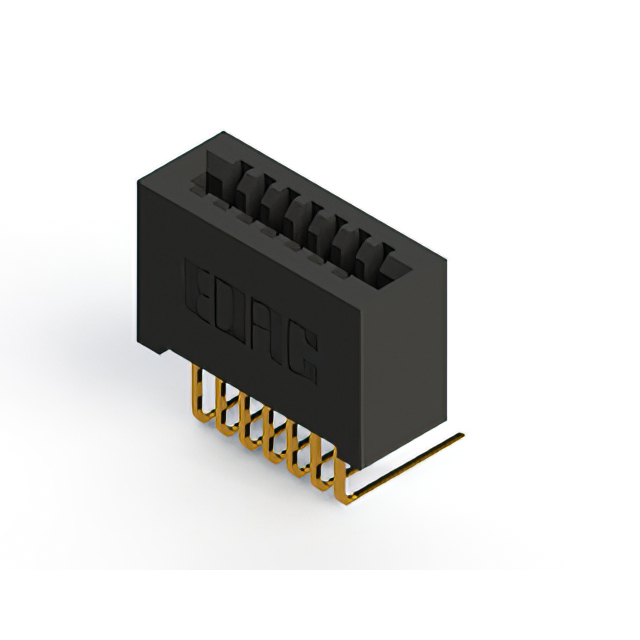

EDAC Inc. 892-007-558-101	1	Polyphenylene Sulfide (PPS)	7	Non Specified - Single Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Cantilever	Black	Gold		Solder	Single	125 °C	-40 C	Copper Alloy	7	0.1 "	2.54 mm	Right Angle Through Hole	0.25 Ám	10 Áin	1

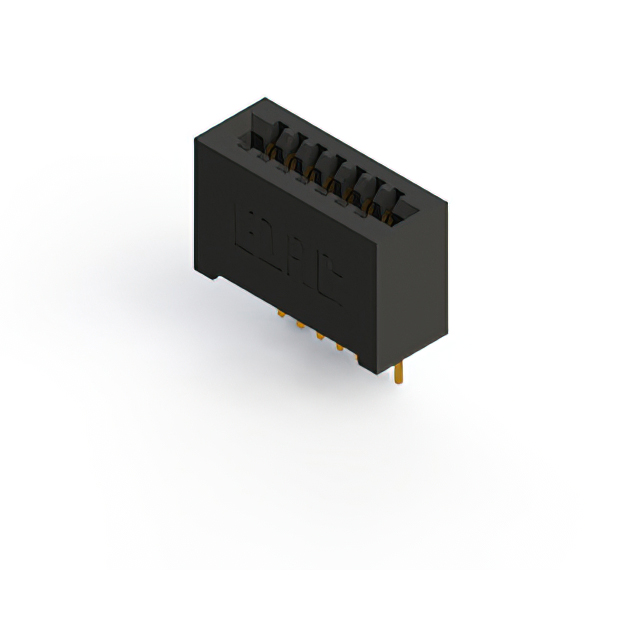

EDAC Inc. 892-007-541-101	1	Polyphenylene Sulfide (PPS)	7	Non Specified - Single Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Cantilever	Black	Gold		Wire Wrap	Single	125 °C	-40 C	Copper Alloy	7	0.1 "	2.54 mm	Through Hole	0.25 Ám	10 Áin	1
