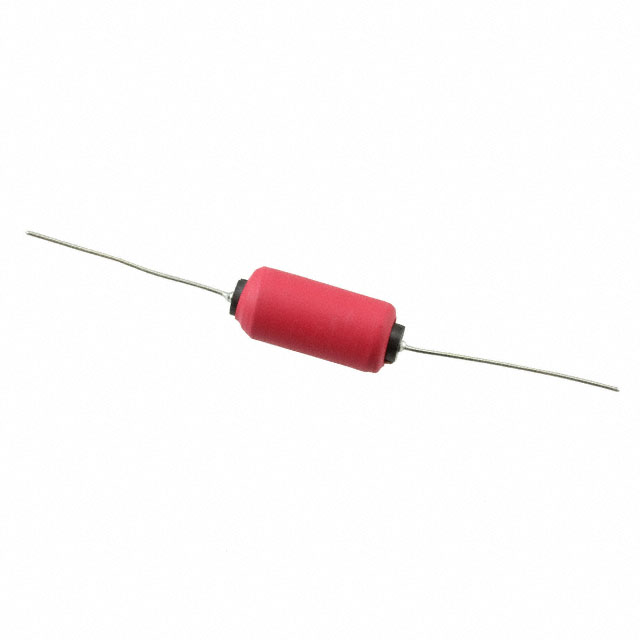

IHA Series
Manufacturer: Vishay Dale
Beta
⌘K
POWER INDUCTORS - LEADED IHA-504 EB E2
| Part | Mounting Type | Tolerance | Package / Case | Current Rating | Material - Core | Shielding | DC Resistance (DCR) (Max) | Operating Temperature (Max) | Operating Temperature (Min) | Type | Inductance | Size / Dimension Length | Size / Dimension Diameter | Inductance Frequency - Test |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Vishay Dale | Through Hole | 10 % | Axial | 6.1 A | Ferrite | Unshielded | 40 mOhm | 125 °C | -55 °C | Drum Core Wirewound | 50 µH | 1.05 in | 0.7 in | 1 kHz |
 Vishay Dale | Through Hole | 10 % | Axial | 1.6 A | Ferrite | Unshielded | 420 mOhm | 125 °C | -55 °C | Drum Core Wirewound | 500 µH | 1.175 in | 0.55 in | 1 kHz |
