3410 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

CONN RING SLOTTED 16-22AWG #6

Part	Stud/Tab Size	Wire Gauge [Max]	Wire Gauge [Min]	Features	Length - Overall	Length - Overall	Termination	Insulation Diameter [Min] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Thickness	Thickness	Width - Outer Edges [y]	Width - Outer Edges [y]	Insulation	Contact Finish	Contact Material	Mounting Type	Terminal Type	Width - Outer Edges [x]	Width - Outer Edges [x]	Length - Overall [x]	Length - Overall [x]	Stud/Tab Size
TE Connectivity Raychem Cable Protection 34101	6 Stud	22 AWG	16 AWG	Serrated Termination	18.03 mm	0.71 "	Crimp	2.03 mm	3.18 mm	0.125 "	0.08 in	0.031 in	0.79 mm	7.14 mm	0.281 in	Non-Insulated	Tin	Copper	Free Hanging (In-Line)	Slotted

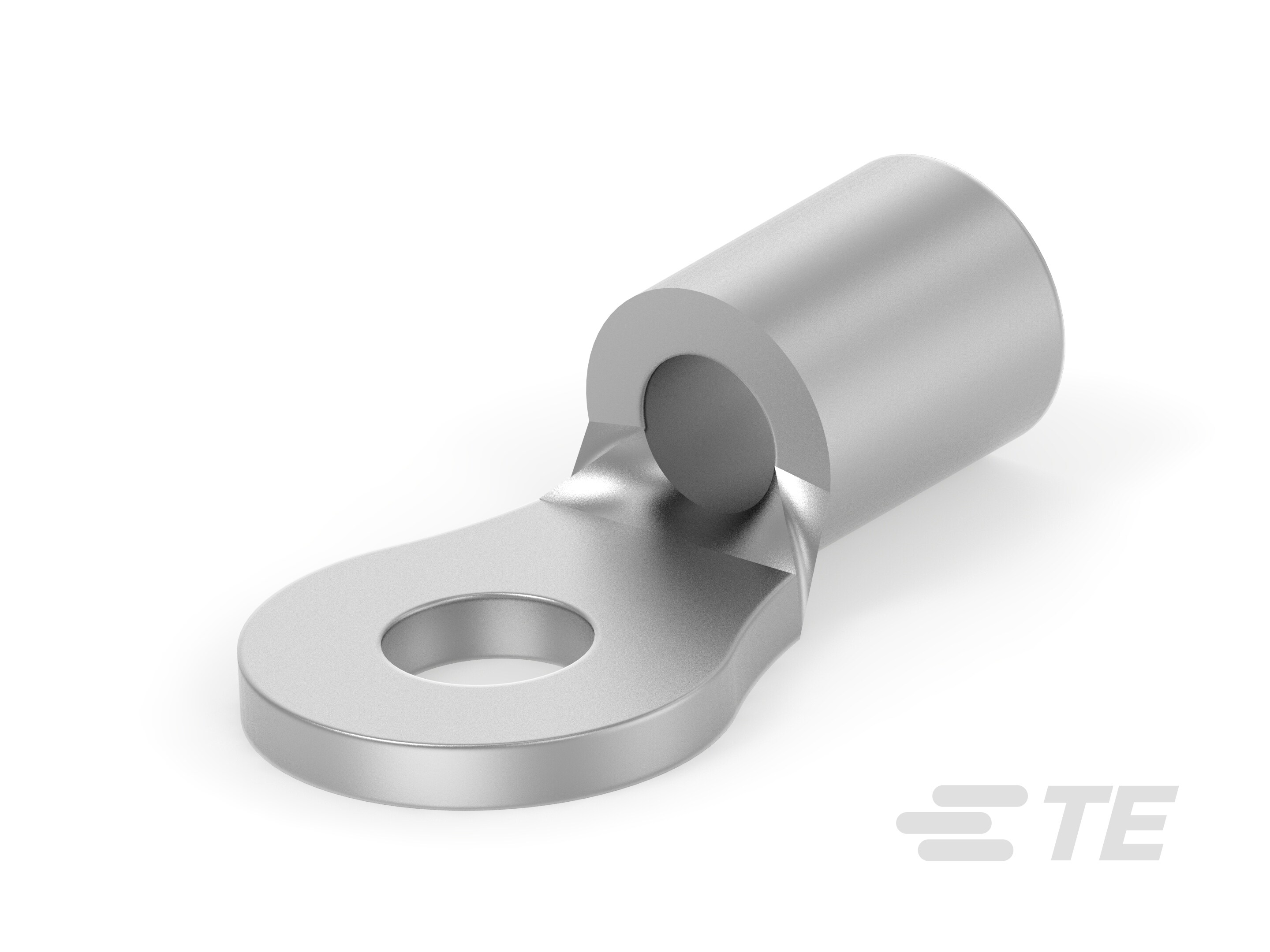

TE Connectivity Raychem Cable Protection 34103	2 Stud	22 AWG	16 AWG	Brazed Seam Serrated Termination			Crimp					0.031 in	0.79 mm			Non-Insulated	Tin	Copper	Free Hanging (In-Line)	Circular	5.54 mm	0.218 in	0.449 "	11.4 mm
TE Connectivity Raychem Cable Protection 341039		14 AWG	12 AWG				Crimp					0.031 in	0.79 mm			Insulated	Nickel		Free Hanging (In-Line)						M6 Stud

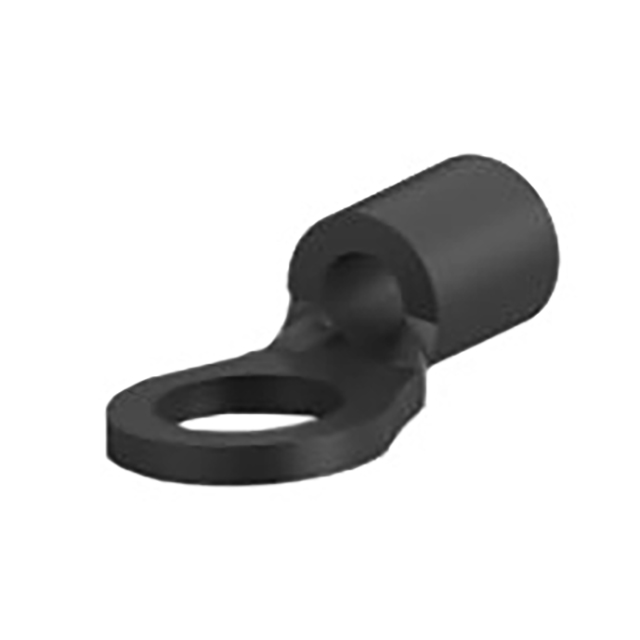

TE Connectivity Raychem Cable Protection 34105	6 Stud	22 AWG	16 AWG	Brazed Seam Serrated Termination			Crimp					0.031 in	0.79 mm			Non-Insulated	Tin	Copper	Free Hanging (In-Line)	Circular	5.54 mm	0.218 in	0.449 "	11.4 mm

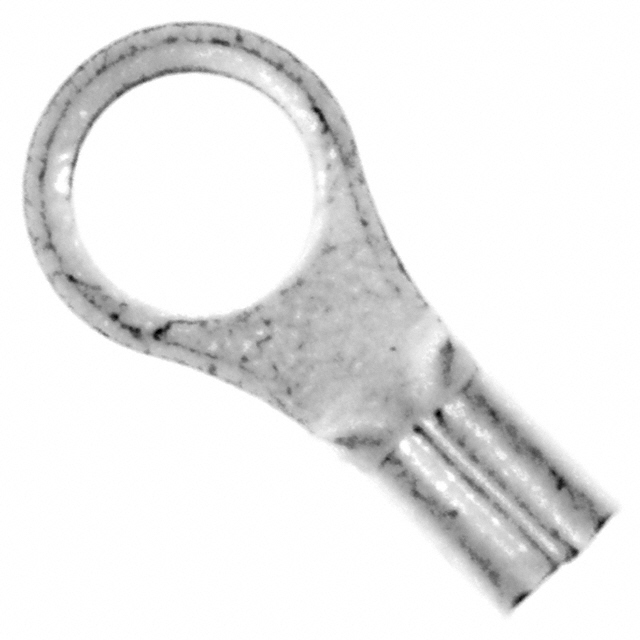

TE Connectivity Raychem Cable Protection 34109	10 Stud	22 AWG	16 AWG	Brazed Seam Serrated Termination	14.58 mm		Crimp					0.031 in	0.79 mm	7.14 mm	0.281 in	Non-Insulated	Tin	Copper	Free Hanging (In-Line)	Circular			0.574 in

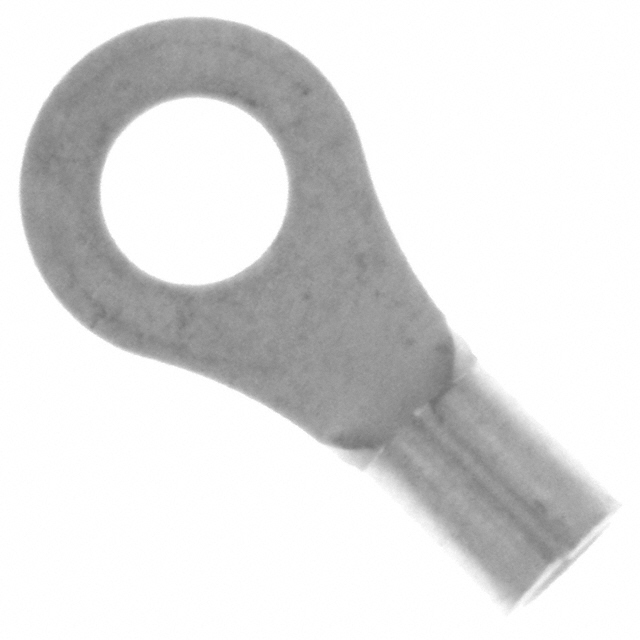

TE Connectivity Raychem Cable Protection 34107	6 Stud	22 AWG	16 AWG	Brazed Seam Serrated Termination	14.58 mm		Crimp					0.031 in	0.79 mm	7.14 mm	0.281 in	Non-Insulated	Tin	Copper	Free Hanging (In-Line)	Circular			0.574 in
