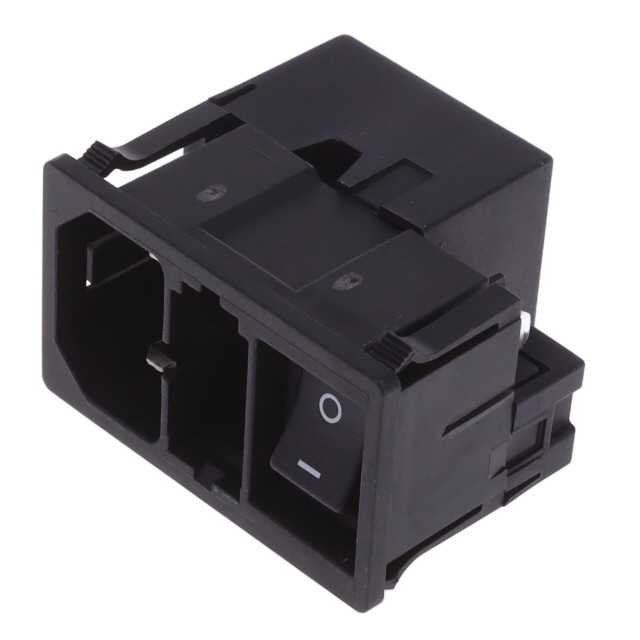

KMF0.2293 Series
Manufacturer: SCHURTER Inc.
Beta
⌘K
PWR ENT MOD RCPT IEC320-C18 PNL
| Part | Switch Features | Mounting Type | Approval Agency | Accomodates a Fuse | Current Rating - Appliance Inlet | Voltage Rating - Appliance Inlet | Connector Style | Fuse Holder, Drawer | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Panel Thickness [Max] | Panel Thickness [Min] | Panel Thickness [Max] | Panel Thickness [Min] | Material Flammability Rating | Connector Type | Termination | Termination | Termination | Ingress Protection | Filter Type | Current Rating - Filter |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SCHURTER Inc. | Switch On-Off | Panel Mount Snap-In | CCC cURus ENEC | 10 A | 250 VAC | IEC 320-C18 | Fuse Holder | 28.8 mm | 47.8 mm | 2.5 mm | 0.039 in | 0.098 in | 1 mm | UL94 V-0 | Receptacle Male Blades - Module | 0.189 " | 4.8 mm | Quick Connect | IP40 | Filtered (EMI RFI) - Commercial Medical | 10 A |
