INND-SS30 Series

Catalog

DISP 7SEG 0.3" SGL YLW-GRN 10SMD

Part	Number of Characters	Display Type	Package / Case	Color	Wavelength - Peak [custom]	Digit/Alpha Size	Digit/Alpha Size	Millicandela Rating	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Voltage - Forward (Vf) (Typ)	Common Pin	Current - Test	Power Dissipation (Max) [Max]	Wavelength - Peak

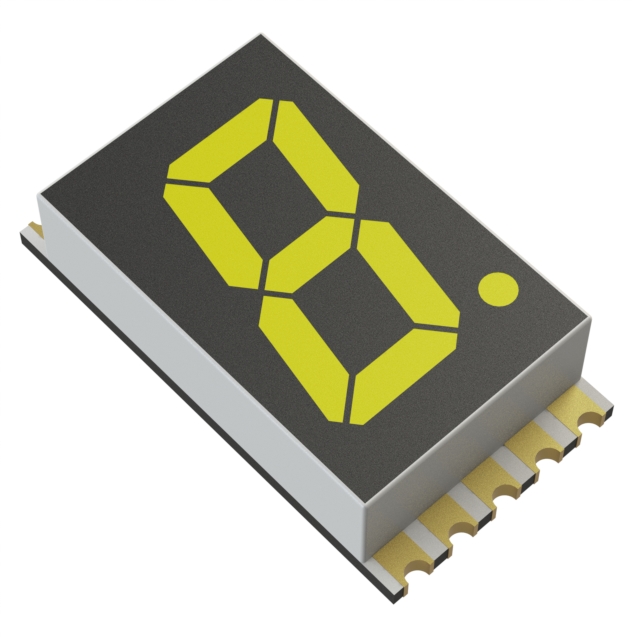

Inolux Corporation INND-SS30YGAG	1	7-Segment	10-SMD No Lead	Yellow-Green	572 nm	7.62 mm	0.3 in	2 mcd	0.287 in	0.472 in	0.124 in	2 V	Common Anode	20 mA	70 mW
Inolux Corporation INND-SS30WAB	1	7-Segment	10-SMD No Lead	White		7.62 mm	0.3 in	19.3 mcd	0.287 in	0.472 in	0.124 in	3.2 V	Common Anode	20 mA	114 mW
Inolux Corporation INND-SS30ACG	1	7-Segment	10-SMD No Lead	Amber		7.62 mm	0.3 in	9 mcd	0.287 in	0.472 in	0.124 in	2 V	Common Cathode	20 mA	70 mW	612 nm

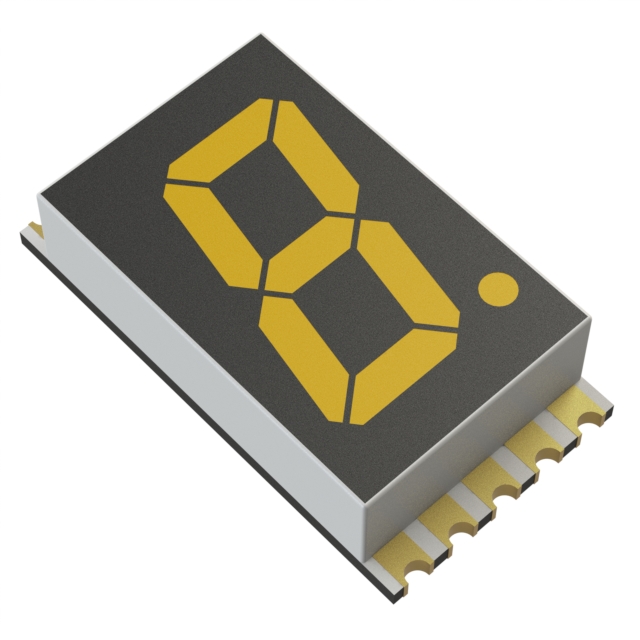

Inolux Corporation INND-SS30YCG	1	7-Segment	10-SMD No Lead	Yellow		7.62 mm	0.3 in	8 mcd	0.287 in	0.472 in	0.124 in	2 V	Common Cathode	20 mA	70 mW	592 nm

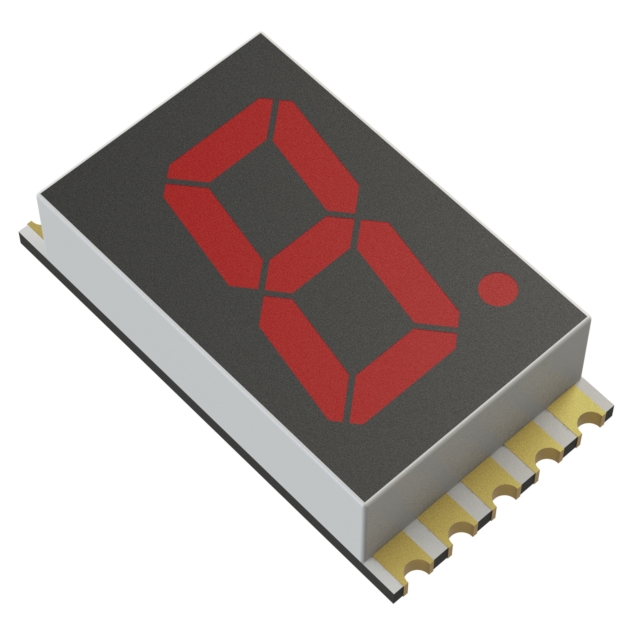

Inolux Corporation INND-SS30DRCB	1	7-Segment	10-SMD No Lead	Red		7.62 mm	0.3 in	2 mcd	0.287 in	0.472 in	0.124 in	2 V	Common Cathode	20 mA	70 mW	645 nm
Inolux Corporation INND-SS30YGAB	1	7-Segment	10-SMD No Lead	Yellow-Green	572 nm	7.62 mm	0.3 in	2 mcd	0.287 in	0.472 in	0.124 in	2 V	Common Anode	20 mA	70 mW
