0508-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

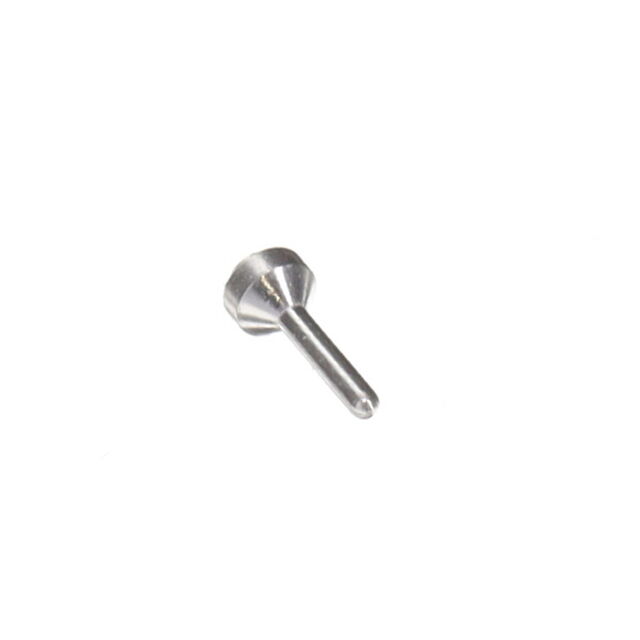

CONN PIN RCPT
| Part | Contact Finish | Contact Material | Contact Finish Thickness | Contact Finish Thickness | Length - Above Flange [custom] | Length - Above Flange [custom] | Terminal Style | Termination | Insulation | Terminal Type | Pin Size - Below Flange [diameter] | Pin Size - Below Flange [diameter] | Mounting Type | Length - Overall [x] | Length - Overall [x] | Flange Diameter | Flange Diameter |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | Tin | Brass Alloy | 200 Áin | 5.08 Ám | 0.125 in | 3.18 mm | Single End | Solder | Non-Insulated | PC Pin | 0.02 in | 0.51 mm | Surface Mount | 3.94 mm | 0.155 in | 0.058 in | 1.47 mm |
 Mill-Max Manufacturing Corp. | Tin-Lead | Brass Alloy | 200 Áin | 5.08 Ám | 0.125 in | 3.18 mm | Single End | Solder | Non-Insulated | PC Pin | 0.02 in | 0.51 mm | Surface Mount | 3.94 mm | 0.155 in | 0.058 in | 1.47 mm |
