1445057 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

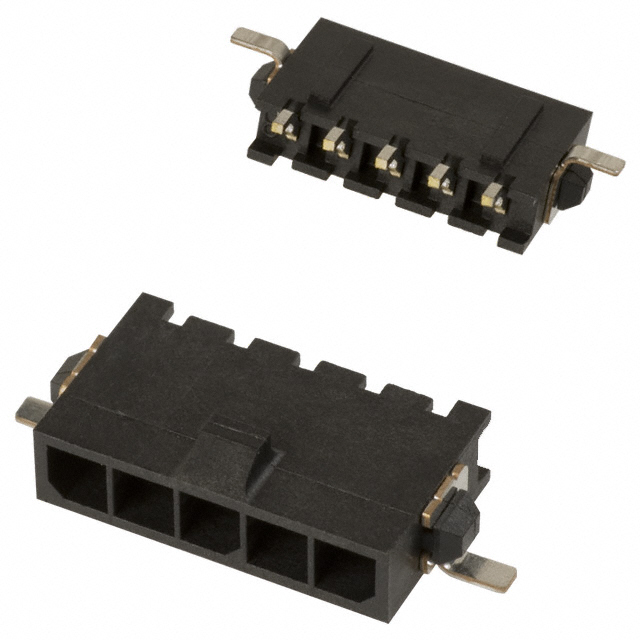

CONN HEADER SMD R/A 5POS 3MM
| Part | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Applications | Contact Finish - Mating | Insulation Height [custom] | Insulation Height [custom] | Style | Operating Temperature [Min] | Operating Temperature [Max] | Fastening Type | Contact Shape | Mounting Type | Features | Shrouding | Number of Positions Loaded | Termination | Current Rating (Amps) | Material Flammability Rating | Pitch - Mating | Pitch - Mating | Insulation Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Voltage Rating | Connector Type | Contact Type | Insulation Color | Number of Rows | Contact Finish - Post | Number of Positions | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 2.54 µm | 100 µin | General Purpose | Tin-Lead | 0.152 in | 3.85 mm | Board to Cable/Wire | -40 C | 105 ░C | Locking Ramp | Square | Right Angle Surface Mount | Solder Retention | Shrouded - 4 Wall | All | Solder | Varies by Wire Gauge | UL94 V-0 | 3 mm | 0.118 in | Nylon Polyamide (PA) | 100 çin | 2.54 çm | 250 V | Header | Male Pin | Black | 1 | Tin-Lead | 5 | Brass |

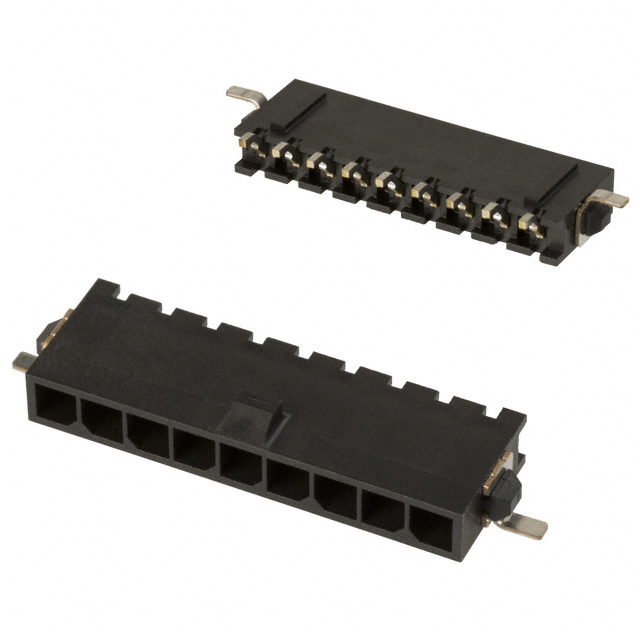

 TE Connectivity AMP Connectors | 2.54 µm | 100 µin | General Purpose | 0.152 in | 3.85 mm | Board to Cable/Wire | -40 C | 105 ░C | Locking Ramp | Square | Right Angle Surface Mount | Solder Retention | Shrouded - 4 Wall | All | Solder | Varies by Wire Gauge | UL94 V-0 | 3 mm | 0.118 in | Nylon Polyamide (PA) | 100 çin | 2.54 çm | 250 V | Header | Male Pin | Black | 1 | Tin | 9 | Brass | |

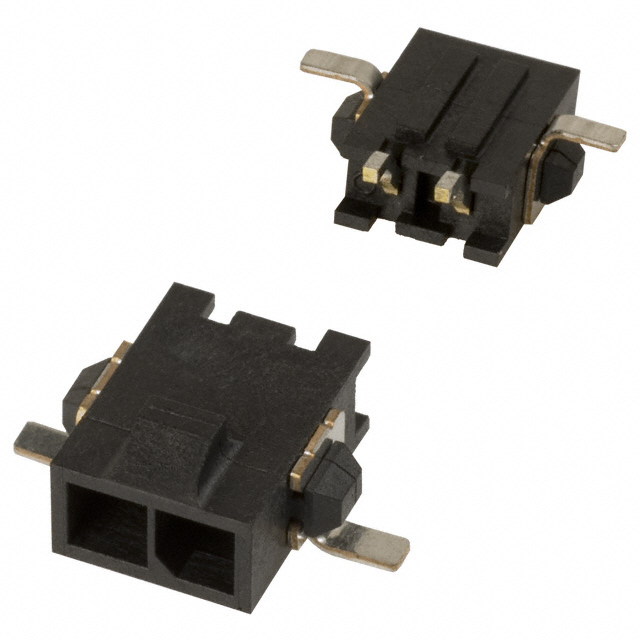

 TE Connectivity AMP Connectors | 2.54 µm | 100 µin | General Purpose | Tin-Lead | 0.152 in | 3.85 mm | Board to Cable/Wire | -40 C | 105 ░C | Locking Ramp | Square | Right Angle Surface Mount | Solder Retention | Shrouded - 4 Wall | All | Solder | Varies by Wire Gauge | UL94 V-0 | 3 mm | 0.118 in | Nylon Polyamide (PA) | 100 çin | 2.54 çm | 250 V | Header | Male Pin | Black | 1 | Tin-Lead | 2 | Brass |

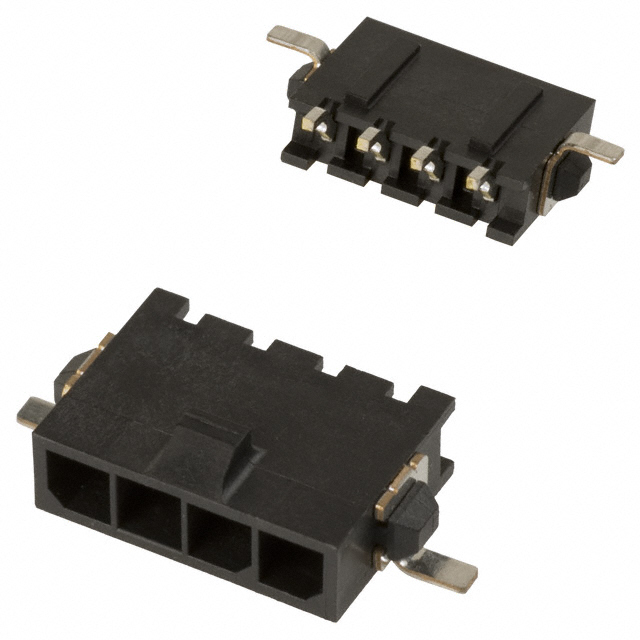

 TE Connectivity AMP Connectors | 2.54 µm | 100 µin | General Purpose | Tin-Lead | 0.152 in | 3.85 mm | Board to Cable/Wire | -40 C | 105 ░C | Locking Ramp | Square | Right Angle Surface Mount | Solder Retention | Shrouded - 4 Wall | All | Solder | Varies by Wire Gauge | UL94 V-0 | 3 mm | 0.118 in | Nylon Polyamide (PA) | 100 çin | 2.54 çm | 250 V | Header | Male Pin | Black | 1 | Tin-Lead | 4 | Brass |
