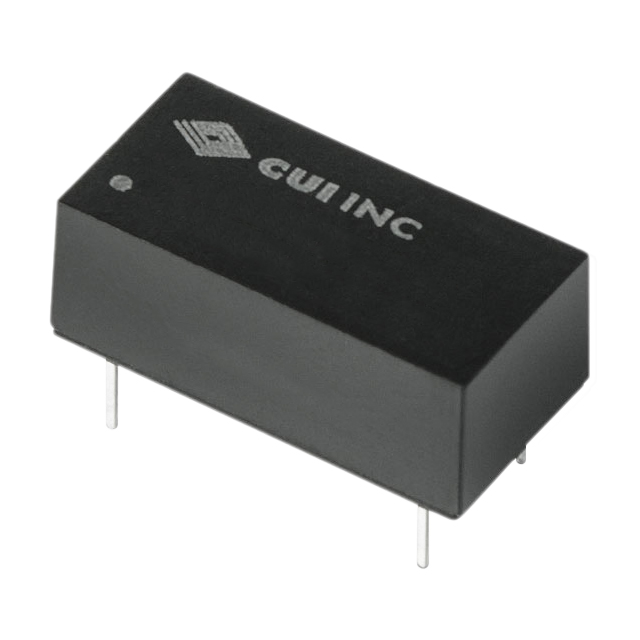

PDM2-S12 Series

Manufacturer: CUI Inc.

Catalog

DC DC CONVERTER 24V 2W

Part	Type	Standard Number	Approval Agency	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Number of Outputs	Voltage - Input (Max) [Max]	Features	Efficiency	Voltage - Input (Min) [Min]	Mounting Type	Power (Watts)	Current - Output (Max) [Max]	Applications	Voltage - Output 1	Package / Case	Voltage - Isolation	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output (Max)	Voltage - Output 2
CUI Inc. PDM2-S12-S24-D	Isolated Module	55024 55032 Class A 60950-1	CB Scheme EN IEC UL	0.32 "	8.2 mm	0.8 "	20.3 mm	10.2 mm	0.4 "	1	13.2 V	SCP	84 %	10.8 V	Through Hole	2 W	83 mA	ITE (Commercial)	24 V	14-DIP Module 6 Leads	1.5 kV	105 C	-40 °C
CUI Inc. PDM2-S12-S5-S	Isolated Module	55024 55032 Class A 60950-1	CB Scheme EN IEC UL	0.39 "	10 mm	0.77 in	19.6 mm	7 mm	0.28 in	1	13.2 V	SCP	84 %	10.8 V	Through Hole	2 W	400 mA	ITE (Commercial)	5 V	6-SIP Module 4 Leads	1.5 kV	105 ░C	-40 C
CUI Inc. PDM2-S12-D9-D	Isolated Module	55024 55032 Class A 60950-1	CB Scheme EN IEC UL	0.32 "	8.2 mm	0.8 "	20.3 mm	10.2 mm	0.4 "	2	13.2 V	SCP	84 %	10.8 V	Through Hole	2 W		ITE (Commercial)	9 V	14-DIP Module 6 Leads	1.5 kV	105 C	-40 °C	111 mA	-9 V
CUI Inc. PDM2-S12-S5-D	Isolated Module	55024 55032 Class A 60950-1	CB Scheme EN IEC UL	0.32 "	8.2 mm	0.8 "	20.3 mm	10.2 mm	0.4 "	1	13.2 V	SCP	84 %	10.8 V	Through Hole	2 W	400 mA	ITE (Commercial)	5 V	14-DIP Module 6 Leads	1.5 kV	105 C	-40 °C
CUI Inc. PDM2-S12-S12-S	Isolated Module	55024 55032 Class A 60950-1	CB Scheme EN IEC UL	0.39 "	10 mm	0.77 in	19.6 mm	7 mm	0.28 in	1	13.2 V	SCP	84 %	10.8 V	Through Hole	2 W	167 mA	ITE (Commercial)	12 V	6-SIP Module 4 Leads	1.5 kV	105 ░C	-40 C
CUI Inc. PDM2-S12-S12-D	Isolated Module	55024 55032 Class A 60950-1	CB Scheme EN IEC UL	0.32 "	8.2 mm	0.8 "	20.3 mm	10.2 mm	0.4 "	1	13.2 V	SCP	84 %	10.8 V	Through Hole	2 W	167 mA	ITE (Commercial)	12 V	14-DIP Module 6 Leads	1.5 kV	105 C	-40 °C
