HCPL-354 Series

Catalog

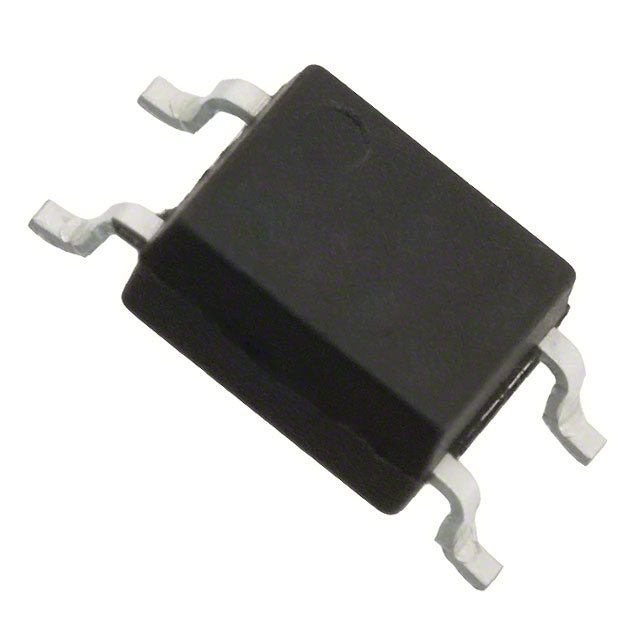

OPTOISO 3.75KV TRANS 4-MINI-FLAT

Part	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Number of Channels [custom]	Current - Output / Channel [custom]	Current Transfer Ratio (Min)	Vce Saturation (Max) [Max]	Voltage - Isolation	Current Transfer Ratio (Max) [Max]	Supplier Device Package	Current - DC Forward (If) (Max) [Max]	Output Type	Voltage - Output (Max) [Max]	Current Transfer Ratio (Max)	Current Transfer Ratio (Min) [Min]
Broadcom Limited HCPL-354-00AE	Surface Mount	100 °C	-55 C	4-SMD Gull Wing	4 µs	3 µs	1	50 mA	50 %	200 mV	3750 Vrms	150 %	4-Mini-Flat	50 mA	Transistor	35 V
Broadcom Limited HCPL-354-000E	Surface Mount	100 °C	-55 C	4-SMD Gull Wing	4 µs	3 µs	1	50 mA		200 mV	3750 Vrms		4-Mini-Flat	50 mA	Transistor	35 V	400 %	20 %
Broadcom Limited HCPL-354-06AE	Surface Mount	100 °C	-55 C	4-SMD Gull Wing	4 µs	3 µs	1	50 mA	50 %	200 mV	3750 Vrms	150 %	4-Mini-Flat	50 mA	Transistor	35 V
