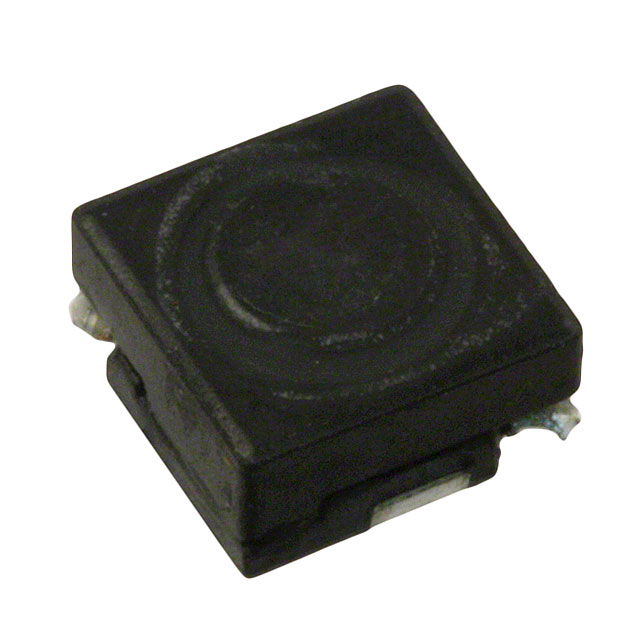

SRR0603 Series

Catalog

INDUCTOR,FERRITE,22UH,20+% TOL,20-% TOL,2626-CASE ROHS COMPLIANT: YES

Part	Frequency - Self Resonant	Inductance	Current Rating (Amps)	Type	Inductance Frequency - Test	DC Resistance (DCR) [Max]	Tolerance	Mounting Type	Q @ Freq	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Material - Core	Shielding	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Current - Saturation (Isat)	DC Resistance (DCR)
Bourns Inc. SRR0603-220ML	20 MHz	22 µH	700 mA	Drum Core Wirewound	1 kHz	270 mOhm	20 %	Surface Mount	2.52 MHz 16	0.13 in	3.3 mm	Ferrite	Shielded	Nonstandard Corner Terminals	125 °C	-40 C	0.256 in	6.5 mm	6.5 mm	0.256 "	1.05 A
Bourns Inc. SRR0603-4R7ML	45 MHz	4.7 ÁH	1.6 A	Drum Core Wirewound	1 kHz		20 %	Surface Mount	7.96 MHz 13	0.13 in	3.3 mm	Ferrite	Shielded	Nonstandard Corner Terminals	125 °C	-40 C	0.256 in	6.5 mm	6.5 mm	0.256 "	2.2 A	70 mOhm
Bourns Inc. SRR0603-150ML	25 MHz	15 µH	900 mA	Drum Core Wirewound	1 kHz	180 mOhm	20 %	Surface Mount	2.52 MHz 16	0.13 in	3.3 mm	Ferrite	Shielded	Nonstandard Corner Terminals	125 °C	-40 C	0.256 in	6.5 mm	6.5 mm	0.256 "	1.2 A
Bourns Inc. SRR0603-330KL	16 MHz	33 µH	600 mA	Drum Core Wirewound	1 kHz	430 mOhm	10 %	Surface Mount	2.52 MHz 15	0.13 in	3.3 mm	Ferrite	Shielded	Nonstandard Corner Terminals	125 °C	-40 C	0.256 in	6.5 mm	6.5 mm	0.256 "	830 mA
Bourns Inc. SRR0603-470YL	13 MHz	47 µH	0.5 A	Drum Core Wirewound	1 kHz		15 %	Surface Mount	2.52 MHz 13	0.13 in	3.3 mm	Ferrite	Shielded	Nonstandard Corner Terminals	125 °C	-40 C	0.256 in	6.5 mm	6.5 mm	0.256 "	730 mA	550 mOhm
