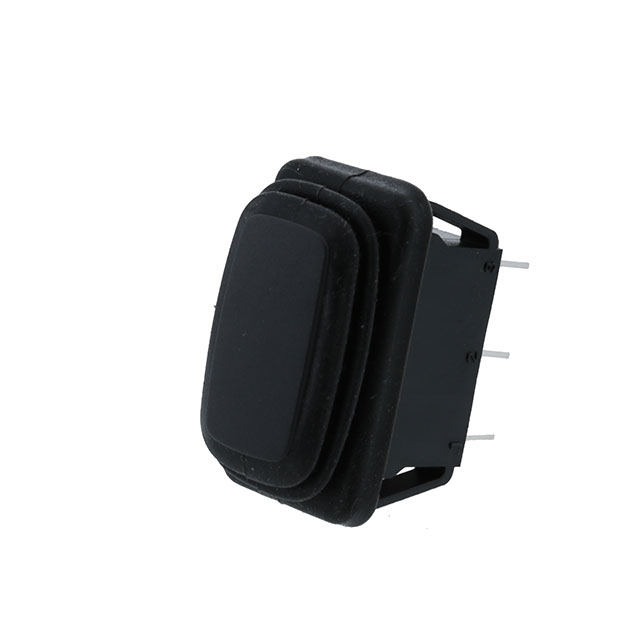

RE2-1F Series
Manufacturer: Switch Components
Beta
⌘K
SWITCH ROCKER SPDT 15A 125V
| Part | Electrical Life | Mechanical Life | Circuit | Mounting Type | Actuator Marking | Switch Function | Voltage Rating - DC | Actuator Type | Current Rating (Amps) | Color - Actuator/Cap | Voltage Rating - AC | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Operating Temperature [Max] | Operating Temperature [Min] | Ingress Protection | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Switch Components | 6000 Cycles | 10000 Steps | SPDT | Panel Mount Snap-In | No Marking | On-Off-On | 12 V | Flat | 16 A 20 A | Black | 125 V | 27.6 mm | 13.8 mm | 85 °C | -25 °C | IP65 - Dust Tight Water Resistant | Quick Connect - 0.250" (6.3mm) |
