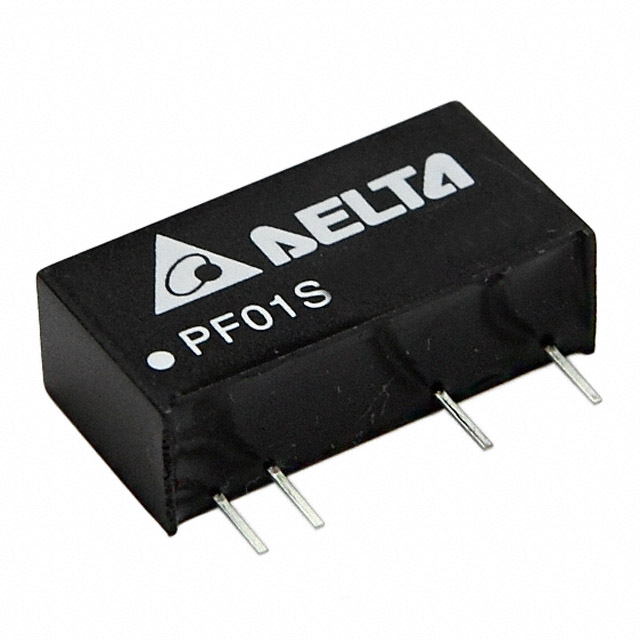

PF01S Series
Manufacturer: Delta Electronics
Beta
⌘K
DC DC CONVERTER 5V 1W
| Part | Mounting Type | Package / Case | Voltage - Output 1 | Operating Temperature [Max] | Operating Temperature [Min] | Number of Outputs | Efficiency | Type | Features | Voltage - Input (Min) [Min] | Voltage - Input (Max) [Max] | Current - Output (Max) [Max] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Voltage - Isolation | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Delta Electronics | Through Hole | 7-SIP Module 4 Leads | 5 V | 85 °C | -40 C | 1 | 84 % | Isolated Module | SCP | 21.6 V | 26.4 V | 200 mA | 0.4 " | 0.24 " | 0.77 in | 6 mm | 10.2 mm | 19.6 mm | 3000 V | Medical |
Delta Electronics | Through Hole | 7-SIP Module 4 Leads | 12 V | 85 °C | -40 C | 1 | 87 % | Isolated Module | SCP | 4.5 V | 5.5 V | 84 mA | 0.4 " | 0.24 " | 0.77 in | 6 mm | 10.2 mm | 19.6 mm | 3000 V | Medical |
Delta Electronics | Through Hole | 7-SIP Module 4 Leads | 5 V | 85 °C | -40 C | 1 | 84 % | Isolated Module | SCP | 4.5 V | 5.5 V | 200 mA | 0.4 " | 0.24 " | 0.77 in | 6 mm | 10.2 mm | 19.6 mm | 3000 V | Medical |
Delta Electronics | Through Hole | 7-SIP Module 4 Leads | 15 V | 85 °C | -40 C | 1 | 87.5 % | Isolated Module | SCP | 4.5 V | 5.5 V | 67 mA | 0.4 " | 0.24 " | 0.77 in | 6 mm | 10.2 mm | 19.6 mm | 3000 V | Medical |
