A8L-11-12 Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
SWITCH ROCKER SPST 10A 125V
| Part | Mechanical Life | Electrical Life | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Current Rating (Amps) | Actuator Type | Color - Actuator/Cap | Voltage Rating - AC | Operating Temperature [Max] | Operating Temperature [Min] | Circuit | Approval Agency | Termination Style | Actuator Marking | Mounting Type | Switch Function |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

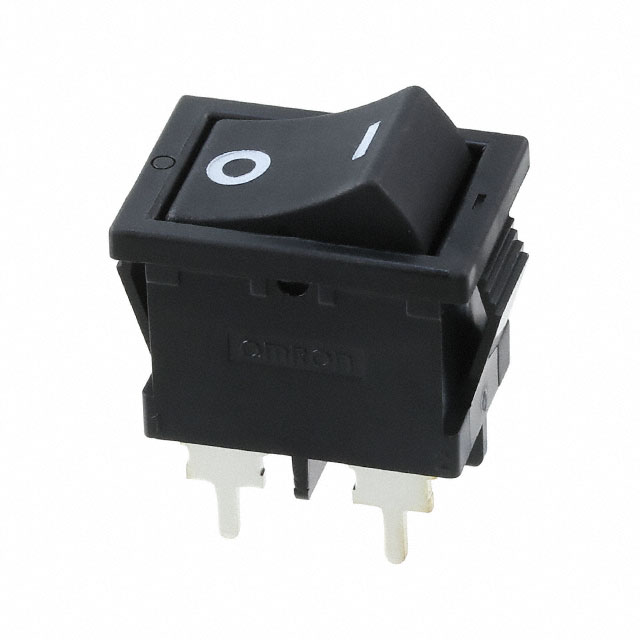

 Omron Electronics Inc-EMC Div | 50000 Cycles | 10000 Cycles | 12.9 mm | 19.2 mm | 10 A | Concave (Curved) | Black | 125 V | 55 °C | -20 ░C | SPST | cULus EN UL | PC Pin | O I | Panel Mount Snap-In | On-Off |

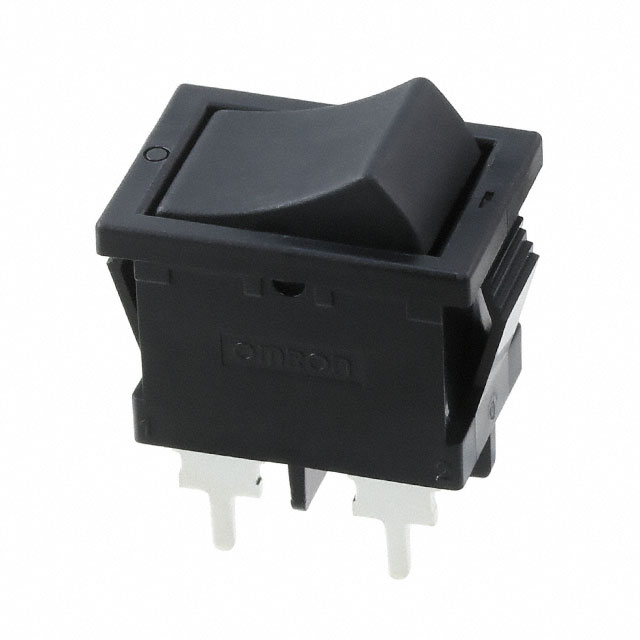

 Omron Electronics Inc-EMC Div | 50000 Cycles | 10000 Cycles | 12.9 mm | 19.2 mm | 10 A | Concave (Curved) | Black | 125 V | 55 °C | -20 ░C | SPST | cULus EN UL | PC Pin | No Marking | Panel Mount Snap-In | On-Off |
