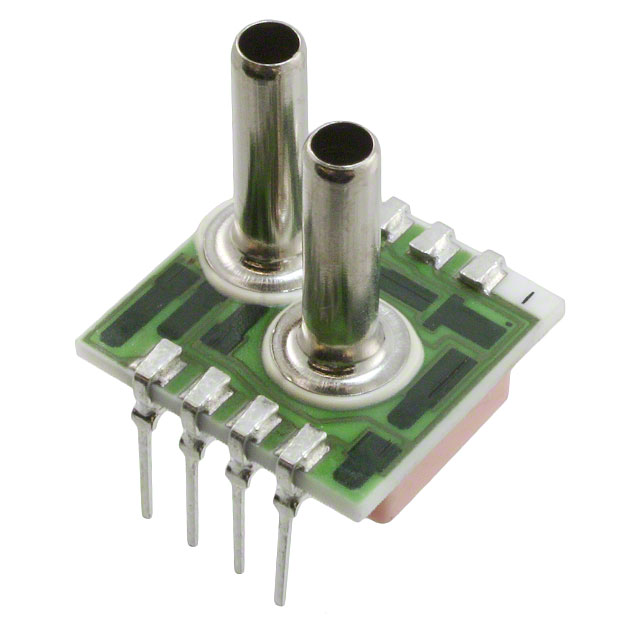

1220A Series

Catalog

SENSOR 5PSID 0.13" .05V

Part	Output [Max]	Package / Case	Termination Style	Mounting Type	Pressure Type	Port Style	Features	Applications	Maximum Pressure	Maximum Pressure	Output Type	Port Size	Port Size	Port Size	Accuracy	Operating Pressure	Operating Pressure	Operating Temperature [Max]	Operating Temperature [Min]	Maximum Pressure [Max]	Maximum Pressure [Max]
TE Connectivity AMP Connectors 1220A-005D-3L	50 mV	8-DIP Module	PC Pin	Through Hole	Differential	Barbless	Temperature Compensated	Board Mount	137.9 kPa	20 PSI	Wheatstone Bridge	3.23 mm	0.13 in	Dual Male Tube	0.1 %	5 PSI	34.47 kPa	125 °C	-40 C

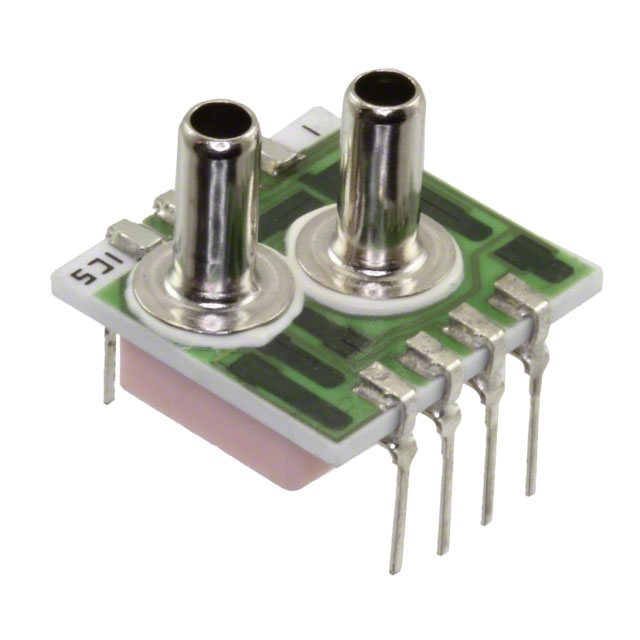

TE Connectivity AMP Connectors 1220A-002D-3S	50 mV	8-DIP Module	PC Pin	Through Hole	Differential	Barbless	Temperature Compensated	Board Mount			Wheatstone Bridge	3.18 mm	0.13 in	Dual Male Tube		2 PSI	13.79 kPa	125 °C	-40 C	10 PSI	68.95 kPa
TE Connectivity AMP Connectors 1220A-100D-3L	50 mV	8-DIP Module	PCB	Through Hole	Differential	Barbless	Temperature Compensated		1378.95 kPa	200 PSI	Wheatstone Bridge	3.23 mm	0.13 in	Dual Male Tube	0.1 %	100 PSI	689.48 kPa	125 °C	-40 C
TE Connectivity AMP Connectors 1220A-005D-3S	50 mV	8-DIP Module	PC Pin	Through Hole	Differential	Barbless	Temperature Compensated	Board Mount	137.9 kPa	20 PSI	Wheatstone Bridge	3.18 mm	0.13 in	Dual Male Tube		5 PSI	34.47 kPa	125 °C	-40 C

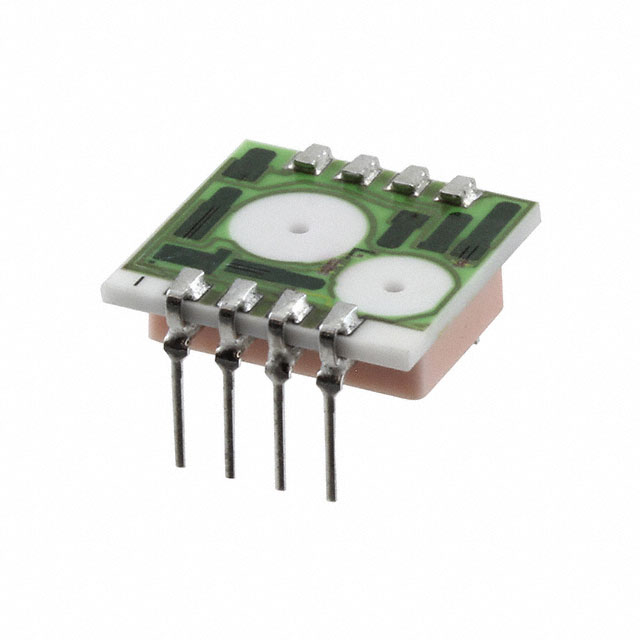

TE Connectivity AMP Connectors 1220A-005G-3N	50 mV	8-DIP Module	PC Pin	Through Hole	Vented Gauge	No Port	Temperature Compensated	Board Mount	137.9 kPa	20 PSI	Wheatstone Bridge				0.1 %	5 PSI	34.47 kPa	125 °C	-40 C
