5580101 Series

Manufacturer: DIALIGHT

Catalog

LED PANEL IND RED DIFF SNAP-IN

Part	Current	Lamp Color	Lens Color	Type	Lens Size	Lens Size	Panel Cutout Shape	Voltage	Wavelength - Peak	Lens Style	Panel Cutout Dimensions	Panel Cutout Dimensions	Millicandela Rating	Lens Transparency	Viewing Angle	Termination Style	Termination Style	Termination Style

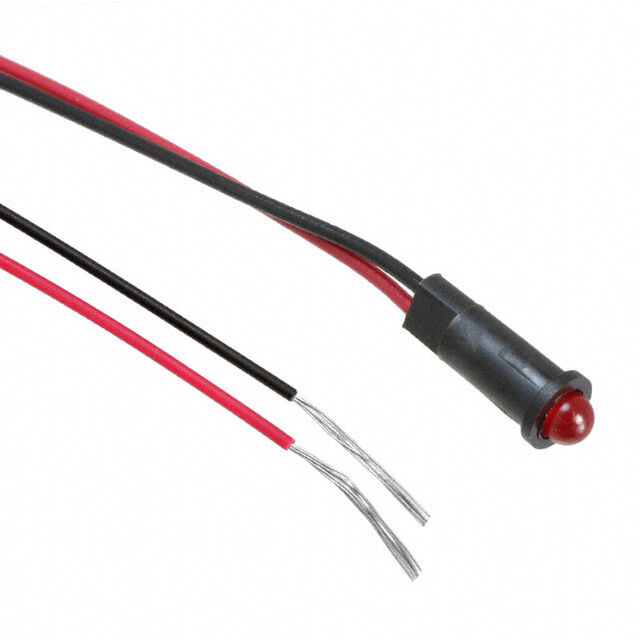

DIALIGHT 5580101003F	20 mA	Red	Red	LED	3 mm	T-1	Round	2 V	650 nm	Round with Domed Top	0.16 in	4.06 mm	10 mcd	Diffused
DIALIGHT 5580101813F
DIALIGHT 5580101814F	20 mA	Red	Red	LED	3 mm	T-1	Round	2 V	650 nm	Round with Domed Top	0.16 in	4.06 mm	10 mcd	Diffused	40 °
DIALIGHT 5580101815F	20 mA	Red	Red	LED	3 mm	T-1	Round	2 V	650 nm	Round with Domed Top	0.16 in	4.06 mm	10 mcd	Diffused	40 °

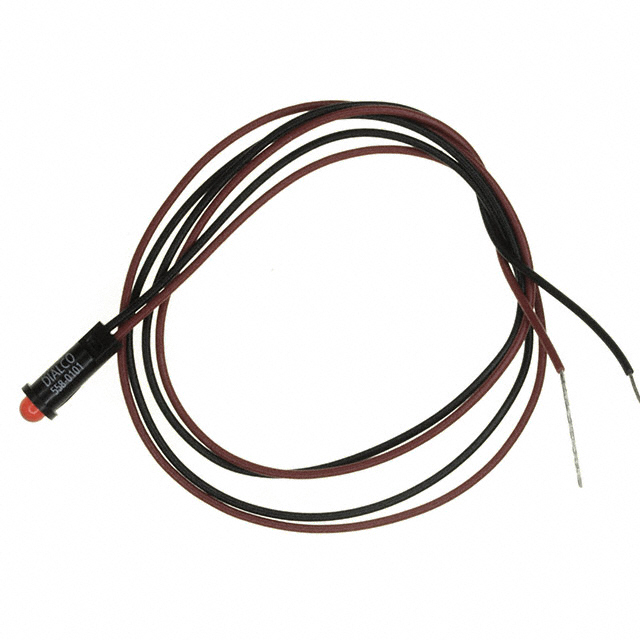

DIALIGHT 5580101007F	20 mA	Red	Red	LED	3 mm	T-1	Round	2 V	650 nm	Round with Domed Top	0.16 in	4.06 mm	10 mcd	Diffused	40 °	Wire Leads	14 in	355.6 mm
