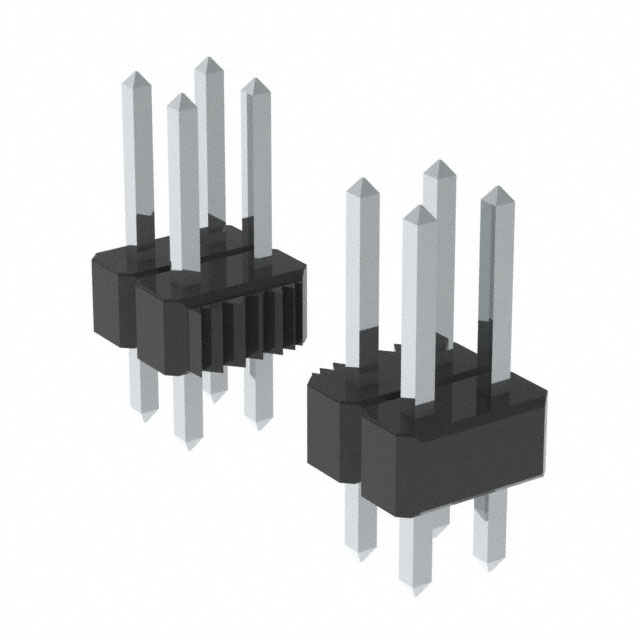

S9693 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER VERT 10POS 2.54MM

Part	Contact Material	Number of Positions	Contact Shape	Fastening Type	Current Rating (Amps)	Number of Rows [custom]	Mounting Type	Overall Contact Length [x]	Overall Contact Length [x]	Contact Length - Mating	Contact Length - Mating	Insulation Color	Shrouding	Insulation Material	Contact Finish - Post	Number of Positions Loaded	Material Flammability Rating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Pitch - Mating	Pitch - Mating	Insulation Height	Insulation Height	Style	Connector Type	Contact Length - Post	Contact Length - Post	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Contact Type
Sullins Connector Solutions S9693E-05	Phosphor Bronze	10	Square	Push-Pull	3 A	2	Through Hole	11.43 mm	0.45 in	0.23 in	5.84 mm	Black	Unshrouded	Liquid Crystal Polymer (LCP)	Tin	All	UL94 V-0	0.1 in	2.54 mm	0.1 "	2.54 mm	0.1 in	2.54 mm	Board to Board Cable	Header Breakaway	3.05 mm	0.12 in	-65 ░C	125 °C	Solder	Male Pin

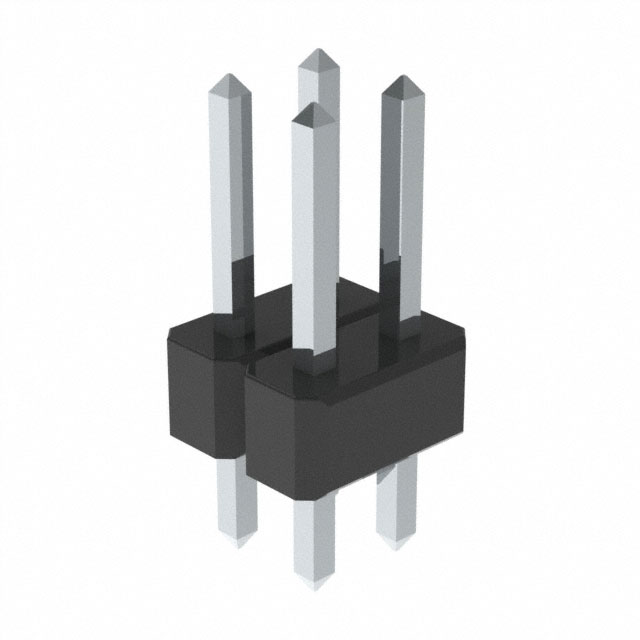

Sullins Connector Solutions S9693E-02	Phosphor Bronze	4	Square	Push-Pull	3 A	2	Through Hole	11.43 mm	0.45 in	0.23 in	5.84 mm	Black	Unshrouded	Liquid Crystal Polymer (LCP)	Tin	All	UL94 V-0	0.1 in	2.54 mm	0.1 "	2.54 mm	0.1 in	2.54 mm	Board to Board Cable	Header Breakaway	3.05 mm	0.12 in	-65 ░C	125 °C	Solder	Male Pin
Sullins Connector Solutions S9693E-12	Phosphor Bronze	24	Square	Push-Pull	3 A	2	Through Hole	11.43 mm	0.45 in	0.23 in	5.84 mm	Black	Unshrouded	Liquid Crystal Polymer (LCP)	Tin	All	UL94 V-0	0.1 in	2.54 mm	0.1 "	2.54 mm	0.1 in	2.54 mm	Board to Board Cable	Header Breakaway	3.05 mm	0.12 in	-65 ░C	125 °C	Solder	Male Pin
Sullins Connector Solutions S9693E-06	Phosphor Bronze	12	Square	Push-Pull	3 A	2	Through Hole	11.43 mm	0.45 in	0.23 in	5.84 mm	Black	Unshrouded	Liquid Crystal Polymer (LCP)	Tin	All	UL94 V-0	0.1 in	2.54 mm	0.1 "	2.54 mm	0.1 in	2.54 mm	Board to Board Cable	Header Breakaway	3.05 mm	0.12 in	-65 ░C	125 °C	Solder	Male Pin

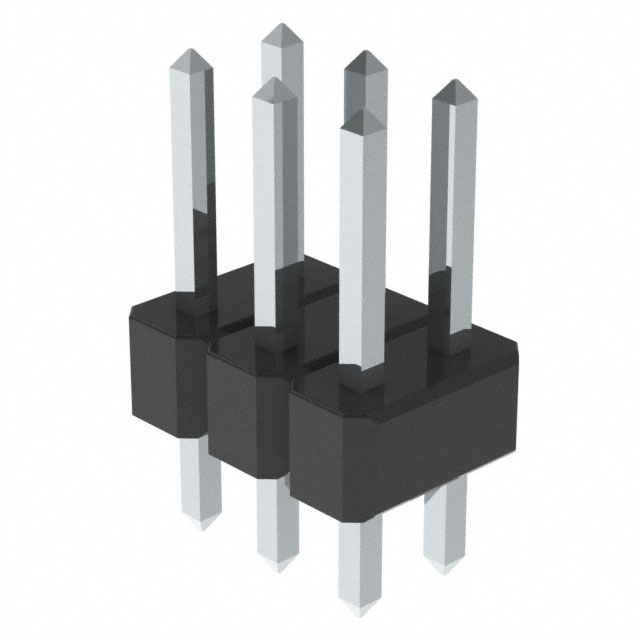

Sullins Connector Solutions S9693E-03	Phosphor Bronze	6	Square	Push-Pull	3 A	2	Through Hole	11.43 mm	0.45 in	0.23 in	5.84 mm	Black	Unshrouded	Liquid Crystal Polymer (LCP)	Tin	All	UL94 V-0	0.1 in	2.54 mm	0.1 "	2.54 mm	0.1 in	2.54 mm	Board to Board Cable	Header Breakaway	3.05 mm	0.12 in	-65 ░C	125 °C	Solder	Male Pin
Sullins Connector Solutions S9693E-08	Phosphor Bronze	16	Square	Push-Pull	3 A	2	Through Hole	11.43 mm	0.45 in	0.23 in	5.84 mm	Black	Unshrouded	Liquid Crystal Polymer (LCP)	Tin	All	UL94 V-0	0.1 in	2.54 mm	0.1 "	2.54 mm	0.1 in	2.54 mm	Board to Board Cable	Header Breakaway	3.05 mm	0.12 in	-65 ░C	125 °C	Solder	Male Pin

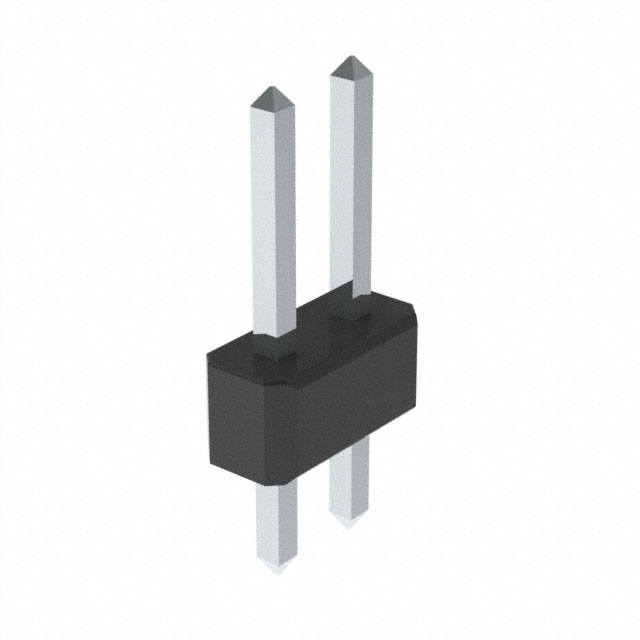

Sullins Connector Solutions S9693E-01	Phosphor Bronze	2	Square	Push-Pull	3 A	2	Through Hole	11.43 mm	0.45 in	0.23 in	5.84 mm	Black	Unshrouded	Liquid Crystal Polymer (LCP)	Tin	All	UL94 V-0	0.1 in	2.54 mm			0.1 in	2.54 mm	Board to Board Cable	Header Breakaway	3.05 mm	0.12 in	-65 ░C	125 °C	Solder	Male Pin
