T520X Series

Manufacturer: KEMET

Catalog

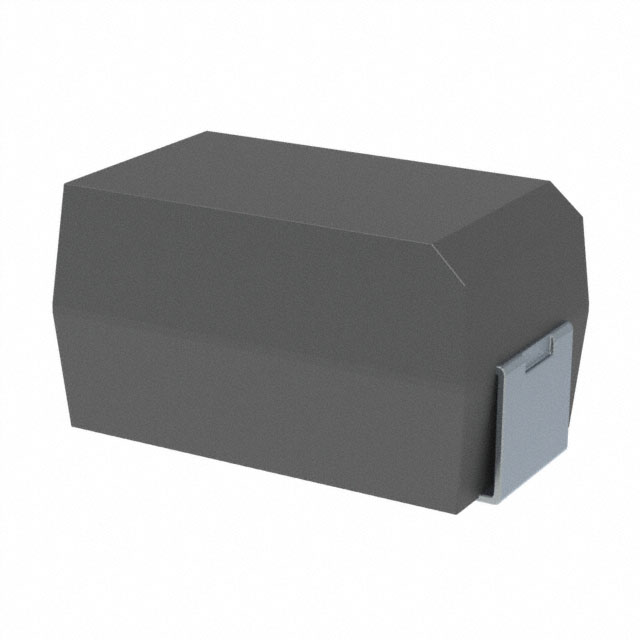

TANTALUM POLYMER CAPACITOR, KO-CAP®, 330 ΜF, ± 20%, 10 V, X, 0.04 OHM, 2917 [7343 METRIC]

Part	Lifetime @ Temp.	Tolerance	Features	Manufacturer Size Code	ESR (Equivalent Series Resistance)	Type	Capacitance	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Rated	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Package / Case
KEMET T520X337M010ATE040	2000 Hrs	20 %	General Purpose	X	40 mOhm	Molded	330 µF	Surface Mount	-55 C	105 ░C	10 V	0.169 in	4.3 mm	0.169 "	7.3 mm	0.287 "	4.3 mm	2917 (7343 Metric)
KEMET T520X687M004ATE010	2000 Hrs	20 %	General Purpose	X	10 mOhm	Molded	680 µF	Surface Mount	-55 C	125 °C	4 V	0.169 in	4.3 mm	0.169 "	7.3 mm	0.287 "	4.3 mm	2917 (7343 Metric)
KEMET T520X687M004ATE015	2000 Hrs	20 %	General Purpose	X	15 mOhm	Molded	680 µF	Surface Mount	-55 C	105 ░C	4 V	0.169 in	4.3 mm	0.169 "	7.3 mm	0.287 "	4.3 mm	2917 (7343 Metric)
KEMET T520X477M006AHE040	2000 Hrs	20 %	General Purpose	X	40 mOhm	Molded	470 µF	Surface Mount	-55 C	105 ░C	6.3 VDC	0.169 in	4.3 mm	0.169 "	7.3 mm	0.287 "	4.3 mm	2917 (7343 Metric)
KEMET T520X337M010ATE010	2000 Hrs	20 %	General Purpose	X	10 mOhm	Molded	330 µF	Surface Mount	-55 C	105 ░C	10 V	0.169 in	4.3 mm	0.169 "	7.3 mm	0.287 "	4.3 mm	2917 (7343 Metric)
KEMET T520X337M010AHE040	2000 Hrs	20 %	General Purpose	X	40 mOhm	Molded	330 µF	Surface Mount	-55 C	105 ░C	10 V	0.169 in	4.3 mm	0.169 "	7.3 mm	0.287 "	4.3 mm	2917 (7343 Metric)
KEMET T520X108M003ATE015	2000 Hrs	20 %	General Purpose	X	15 mOhm	Molded	1000 µF	Surface Mount	-55 C	105 ░C	3 VDC	0.169 in	4.3 mm	0.169 "	7.3 mm	0.287 "	4.3 mm	2917 (7343 Metric)
KEMET T520X157M016ATE040	2000 Hrs	20 %	General Purpose	X	40 mOhm	Molded	150 µF	Surface Mount	-55 C	105 ░C	16 V	0.169 in	4.3 mm	0.169 "	7.3 mm	0.287 "	4.3 mm	2917 (7343 Metric)
KEMET T520X477M006ATE010	2000 Hrs	20 %	General Purpose	X	10 mOhm	Molded	470 µF	Surface Mount	-55 C	105 ░C	6.3 VDC	0.169 in	4.3 mm	0.169 "	7.3 mm	0.287 "	4.3 mm	2917 (7343 Metric)
KEMET T520X477M006ATE018	2000 Hrs	20 %	General Purpose	X	18 mOhm	Molded	470 µF	Surface Mount	-55 C	105 ░C	6.3 VDC	0.169 in	4.3 mm	0.169 "	7.3 mm	0.287 "	4.3 mm	2917 (7343 Metric)
