Special Purpose Terminals Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

103 FASTON REC 22-18 AWG TPBR

Part	Insulation Diameter [Min] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Insulation Diameter [Max] [diameter]	Contact Material	Length - Overall	Length - Overall	Wire Gauge [Min]	Wire Gauge [Max]	Tab Thickness	Tab Thickness	Terminal Type	Gender	Contact Finish	Termination	Mounting Type	Tab Length	Tab Length	Insulation	Tab Width [x]	Tab Width [x]	Length - Overall [x]	Length - Overall [x]	Tab Width	Tab Width	Insulation Diameter [Max]	Insulation Diameter [Min]	Insulation Diameter [Max]	Insulation Diameter [Min]	Tab Width [y]	Tab Width [y]	Diameter - Barrel [diameter]	Diameter - Barrel [diameter]	Length - Barrel [x]	Length - Barrel [x]	Length - Overall [custom]	Length - Overall [custom]	Wire Gauge	Tab Length [x]	Tab Length [x]

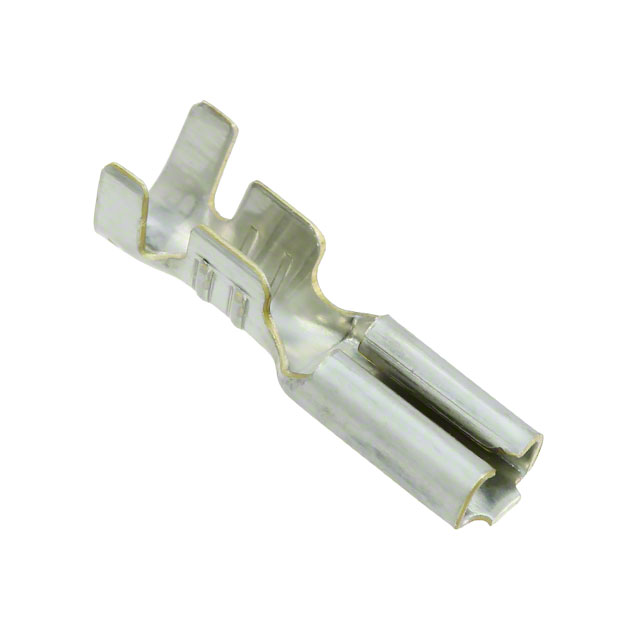

TE Connectivity AMP Connectors 60252-1	2.03 mm	0.12 "	0.08 in	3.05 mm	Brass	12.19 mm	0.48 in	17.5 AWG	20 AWG	0.81 mm	0.032 in	Standard	Female	Tin	Crimp	Free Hanging (In-Line)	0.2 in	5.08 mm	Non-Insulated

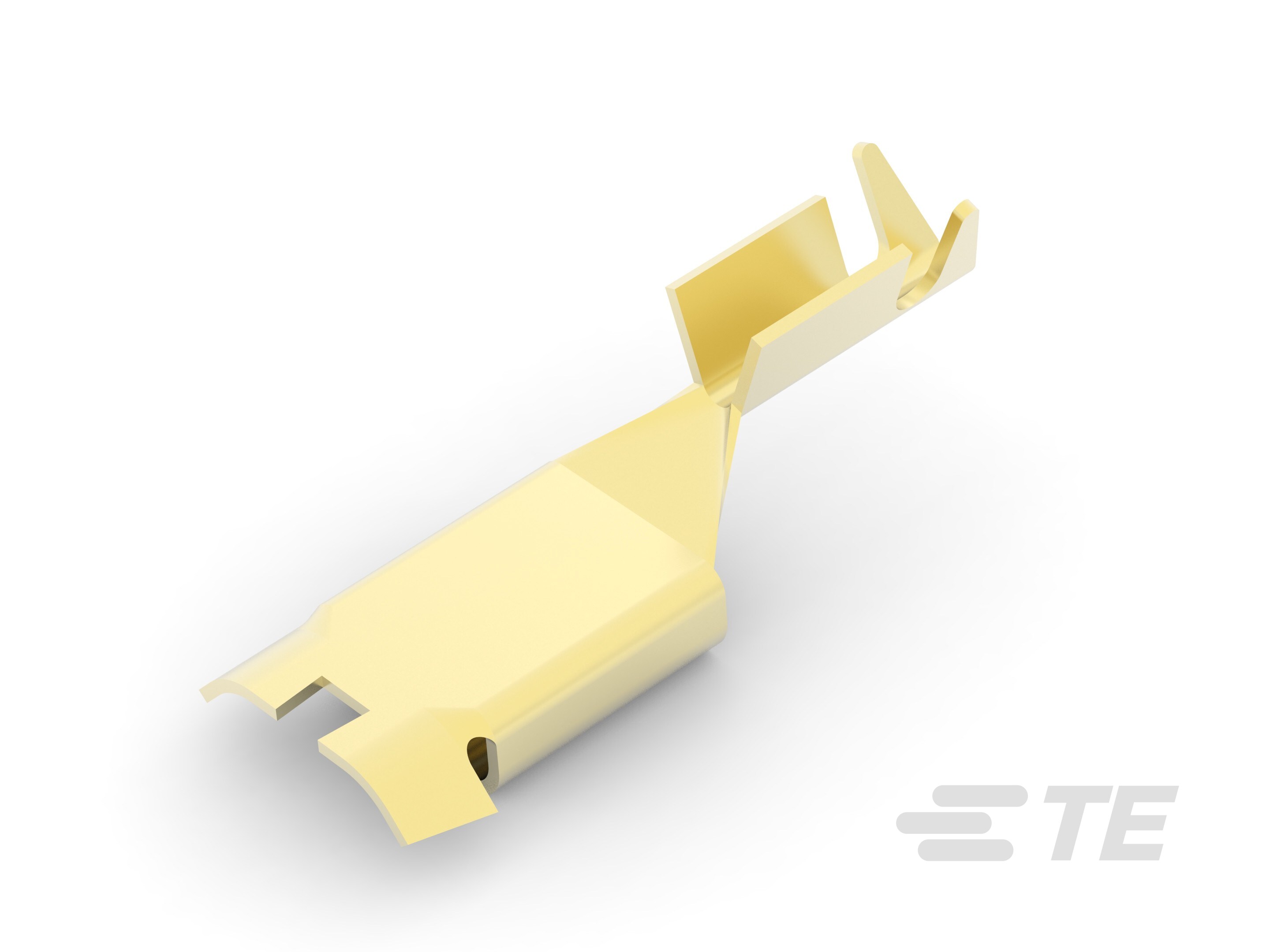

TE Connectivity AMP Connectors 1478484-1					Brass			16 AWG	25 AWG	0.33 mm	0.013 in	Stator	Female		Crimp Reversed	Free Hanging (In-Line)	0.247 in	6.27 mm	Non-Insulated	0.187 in	4.75 mm

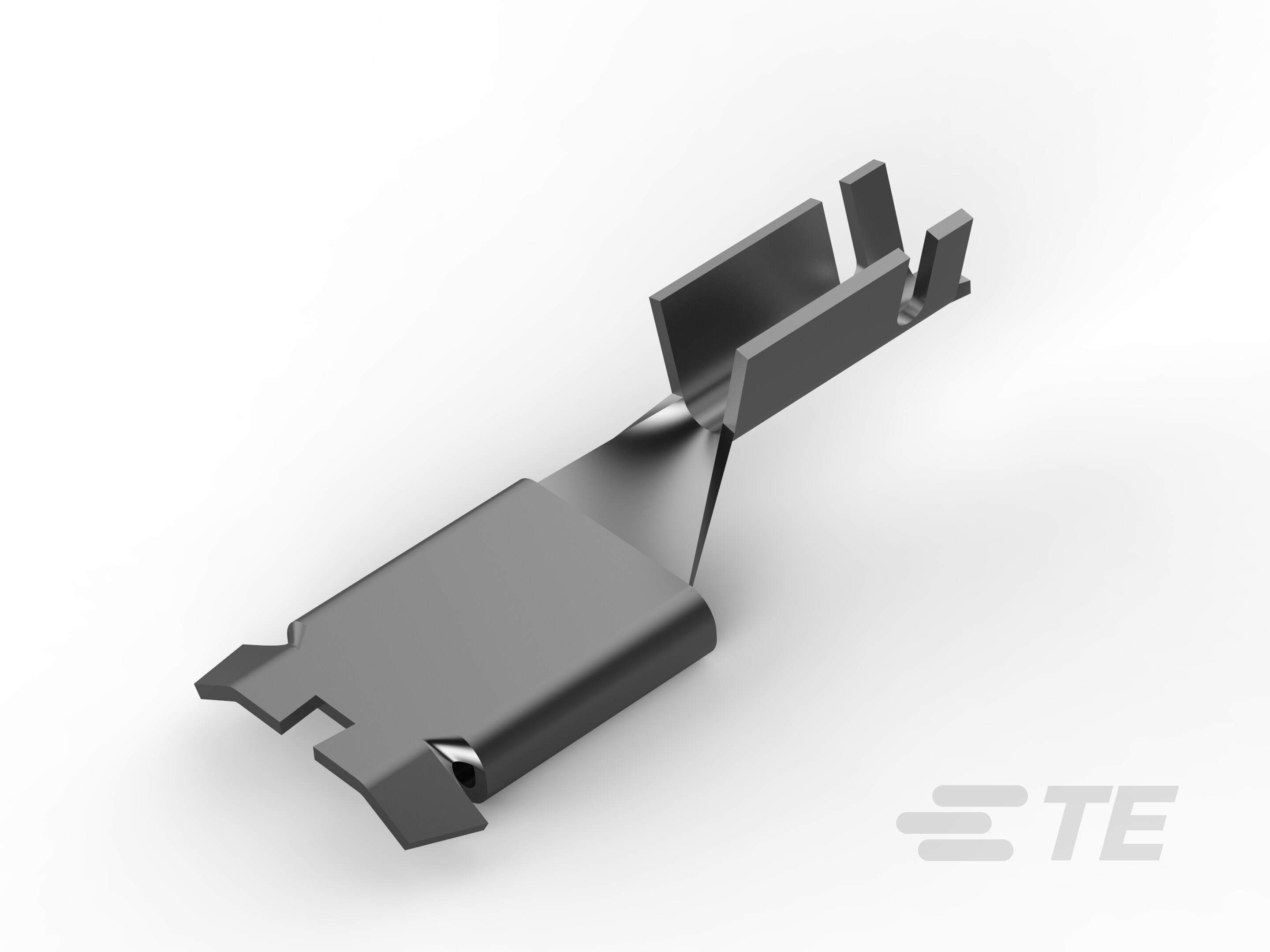

TE Connectivity AMP Connectors 63481-2					Brass	19.56 mm	0.77 in	15 AWG	21 AWG	0.81 mm	0.032 in	Stator	Female	Tin	Crimp Reversed	Free Hanging (In-Line)	0.305 in	7.75 mm	Non-Insulated	0.25 in	6.35 mm

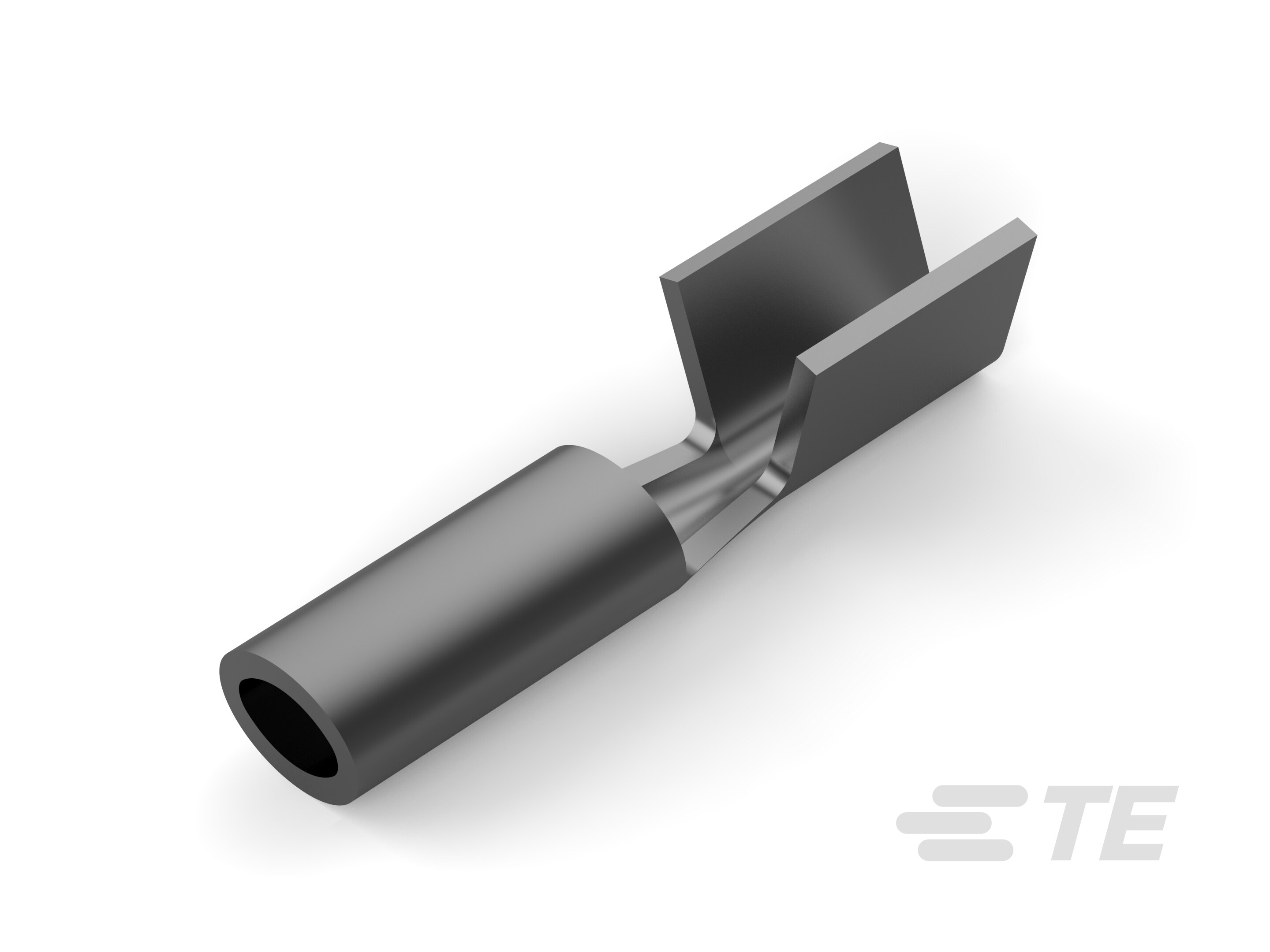

TE Connectivity AMP Connectors 62352-1					Phosphor Bronze			19.5 AWG	24 AWG	0.38 mm	0.015 "	Standard	Female	Tin	Crimp	Free Hanging (In-Line)	0.15 in	3.81 mm	Non-Insulated			0.31 in	7.87 mm	1.27 mm	0.05 "

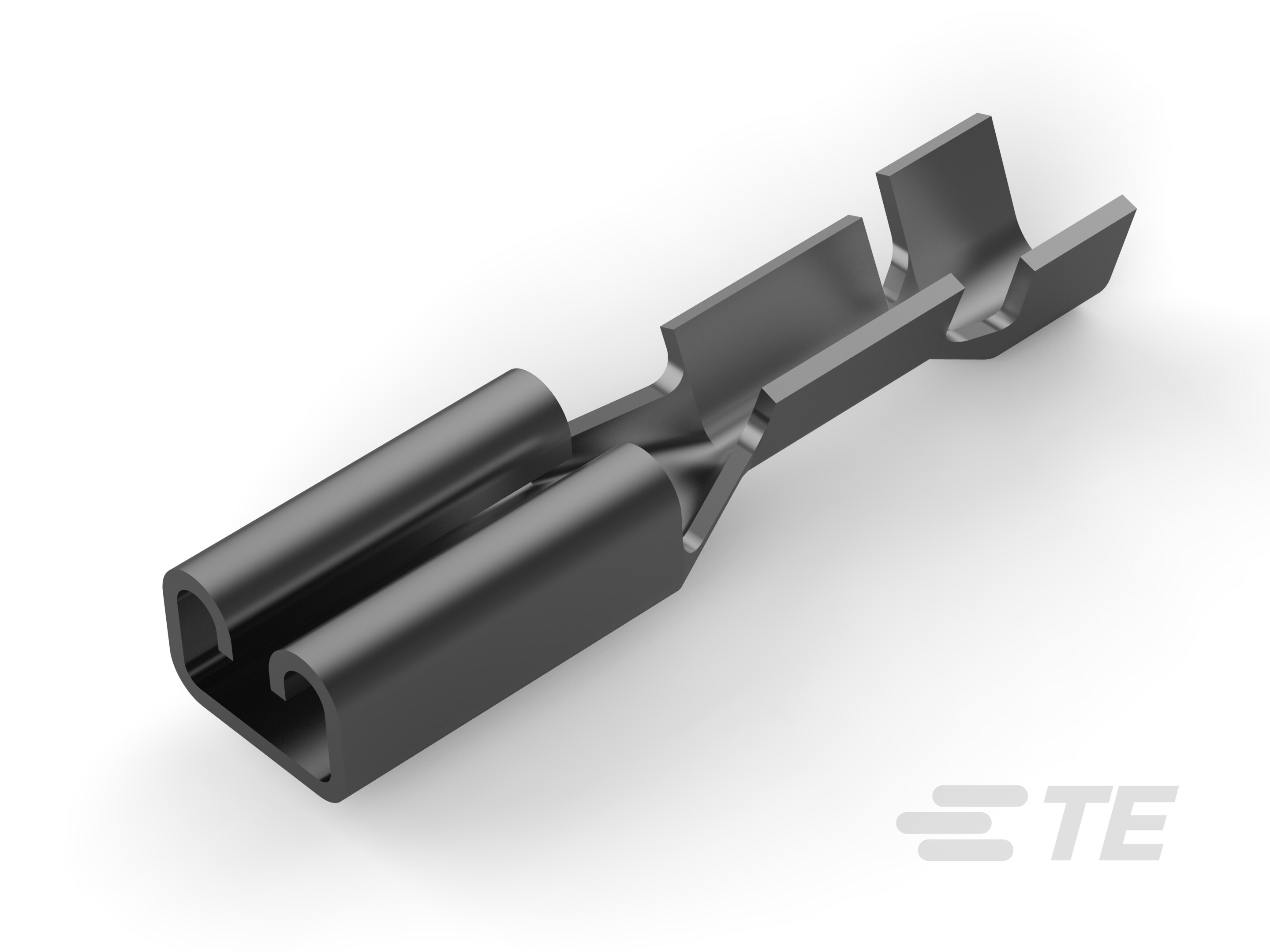

TE Connectivity AMP Connectors 61813-1					Brass			22 AWG	26 AWG	0.81 mm	0.032 in	Standard	Female	Tin	Crimp	Free Hanging (In-Line)	0.19 in	4.83 mm	Non-Insulated			0.475 in	12.07 mm			0.06 "	0.89 mm	1.52 mm	0.035 "	2.36 mm	0.093 in
TE Connectivity AMP Connectors 1742753-1					Brass			17.5 AWG	22 AWG	0.79 mm	0.031 in	Standard	Male	Tin	Crimp	Free Hanging (In-Line)			Non-Insulated			0.509 in	12.93 mm	2 mm	0.079 "

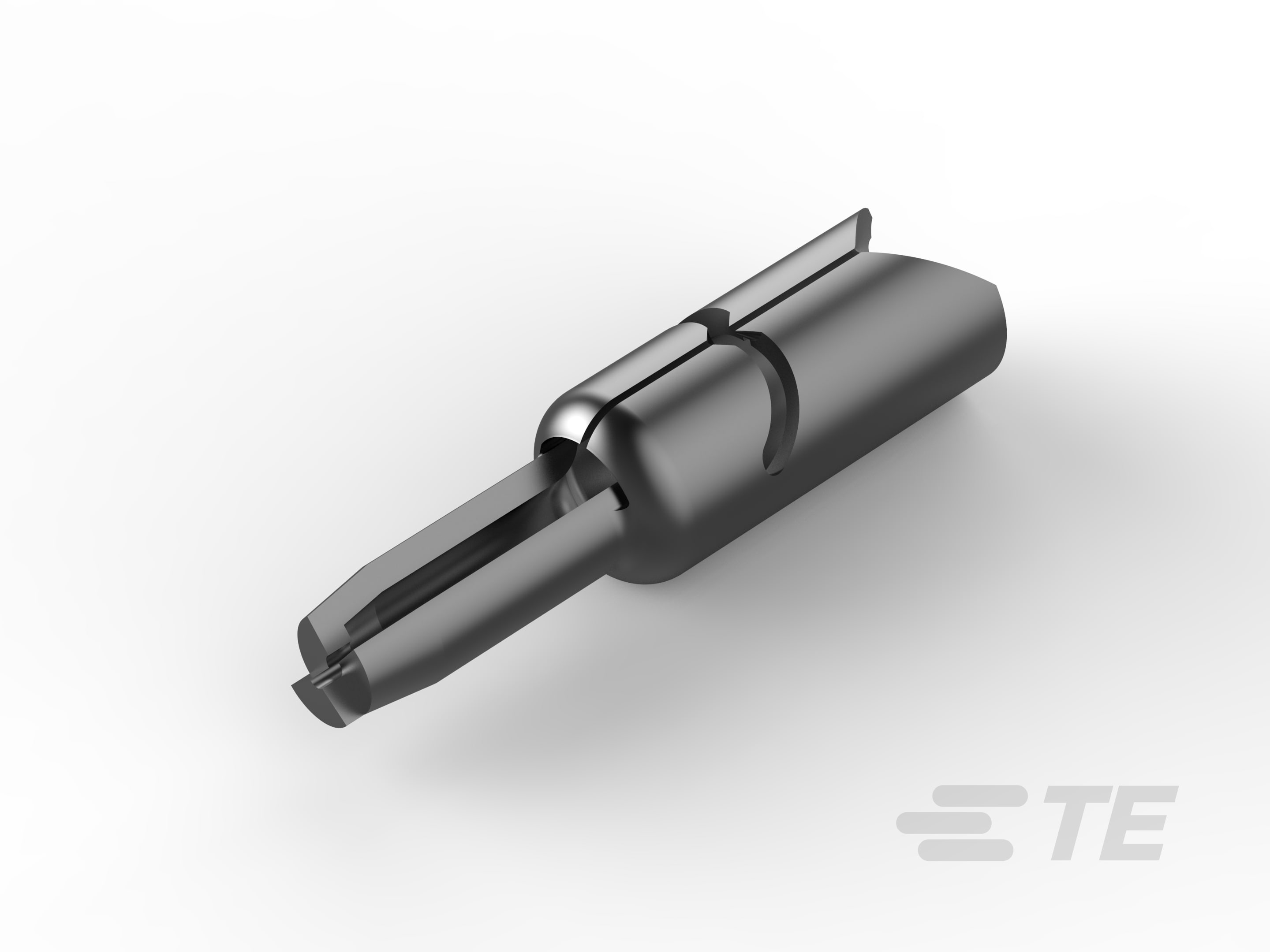

TE Connectivity AMP Connectors 1742254-2					Phosphor Bronze			22 AWG	28 AWG			Male Pin (Plug)		Tin	Crimp				Non-Insulated			0.35 in	8.89 mm									0.09 "	2.29 mm	0.14 in	3.56 mm
TE Connectivity AMP Connectors 1478484-2					Brass			16 AWG	25 AWG	0.33 mm	0.013 in	Stator	Female		Crimp Reversed	Free Hanging (In-Line)	0.247 in	6.27 mm	Non-Insulated	0.187 in	4.75 mm

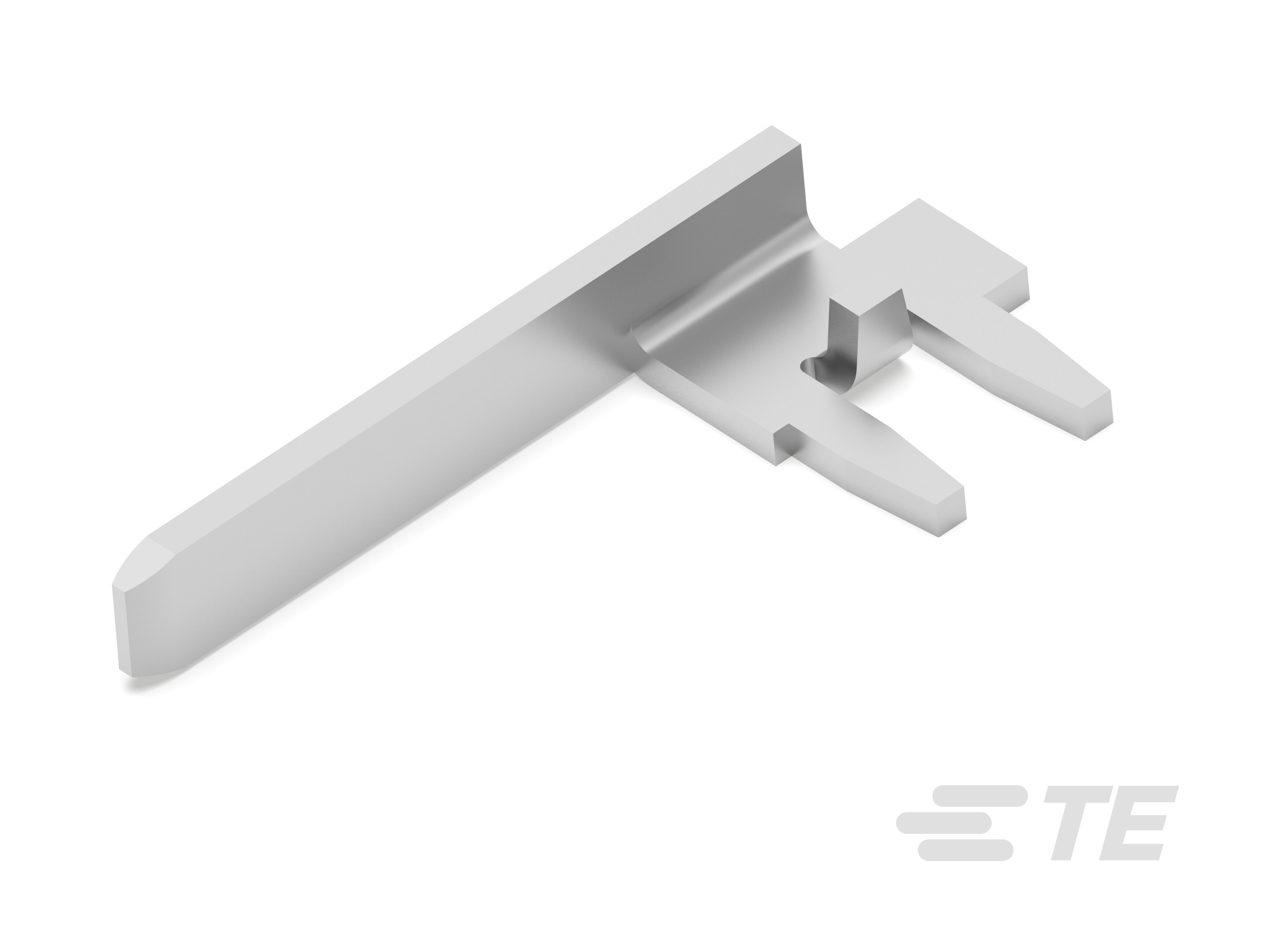

TE Connectivity AMP Connectors 1217089-1					Brass					0.81 mm	0.032 in	Angled - 90°	Male	Tin	Solder	Right Angle Through Hole			Non-Insulated					2.79 mm	0.11 "
TE Connectivity AMP Connectors 60900-4					Brass					0.79 mm	0.031 in	Standard	Female	Tin	Crimp	Free Hanging (In-Line)			Non-Insulated					1.57 mm	0.062 in											0.462 in	11.73 mm	22 AWG 24 AWG	4.75 mm	0.187 in
