6046-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

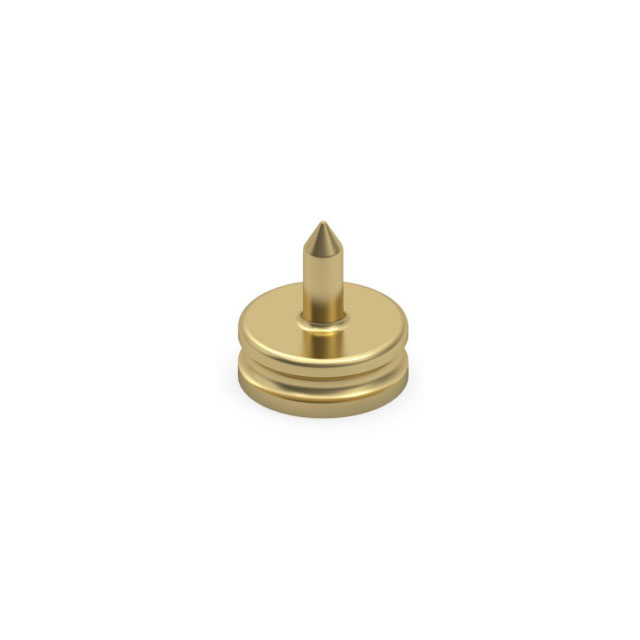

SURFACE MOUNT PIN, .081" LONG GR
| Part | Pin Size - Above Flange | Pin Size - Above Flange | Contact Finish | Length - Overall [x] | Length - Overall [x] | Termination | Contact Material | Pin Size - Above Flange [diameter] | Pin Size - Above Flange [diameter] | Mounting Type | Terminal Style | Flange Diameter [diameter] | Flange Diameter [diameter] | Terminal Type | Contact Finish Thickness | Contact Finish Thickness | Length - Above Flange [x] | Length - Above Flange | Mounting Hole Diameter | Mounting Hole Diameter |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | 0.48 mm | 0.019 " | Gold | 2.06 mm | 0.081 " | Solder | Brass Alloy | 0.019 in | 0.48 mm | Surface Mount | Single End | 0.078 " | 1.98 mm | PC Pin | 20 µin | 0.51 µm | 0.051 in | 1.3 mm | 0.58 mm | 0.023 in |
