1N3317 Series
Manufacturer: Solid State Inc.
Beta
⌘K

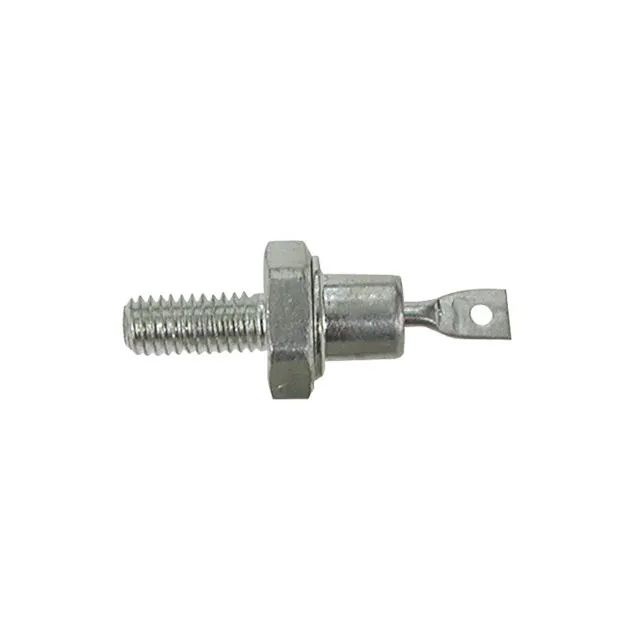

DIODE ZENER 18V 50W DO5
| Part | Current - Reverse Leakage @ Vr | Tolerance | Impedance (Max) (Zzt) [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Forward (Vf) (Max) @ If [Max] | Supplier Device Package | Voltage - Zener (Nom) (Vz) | Package / Case | Power - Max [Max] | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|
 Solid State Inc. | 5 µA | 5 % | 2 Ohms | 175 °C | -65 C | 1.5 V | DO-5 | 18 V | DO-203AB DO-5 Stud | 50 W | Stud Mount |
