ATS-20A Series

Manufacturer: Advanced Thermal Solutions Inc.

Catalog

HEAT SINKS PUSHPIN HEAT SINK ASSEMBLY, COARSE-PITCH/STRAIGHT, HOLE: RIGHT-TAB, BLUE, T766

...

Part	Shape	Material	Fin Height [custom]	Fin Height [custom]	Material Finish	Length	Length [x]	Width [x]	Width [x]	Attachment Method	Type	Package Cooled	Thermal Resistance @ Forced Air Flow	Width [y]	Width [y]	Fin Height	Fin Height	Length	Shape [custom]	Shape [custom]	Fin Height [z]	Fin Height [z]	Width	Width	Length [x]
Advanced Thermal Solutions Inc. ATS-20A-165-C2-R0	Fins Square	Aluminum	0.394 "	10 mm	Blue Anodized	25 mm	0.984 in	25 mm	0.984 "	Push Pin	Top Mount	ASIC BGA CPU LGA	18.36 °C/W
Advanced Thermal Solutions Inc. ATS-20A-91-C3-R0	Fins Square	Aluminum	0.394 "	10 mm	Blue Anodized					Push Pin	Top Mount	ASIC BGA CPU LGA	22.07 °C/W	1.575 in	40 mm

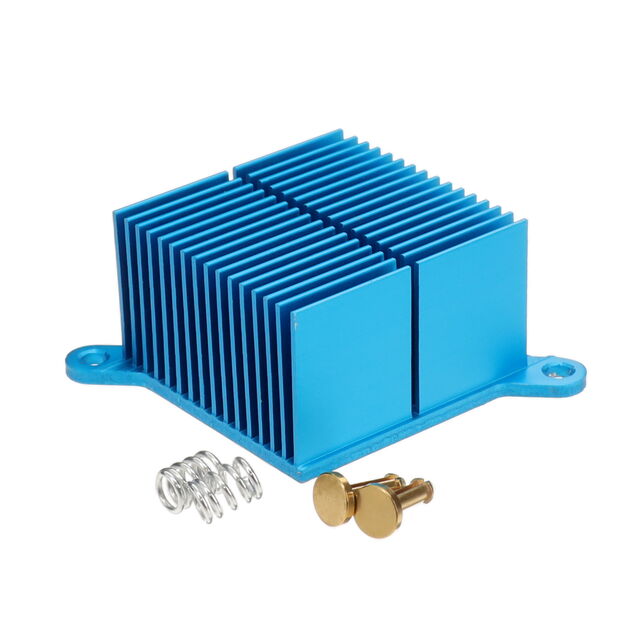

Advanced Thermal Solutions Inc. ATS-20A-94-C2-R0	Fins Square	Aluminum			Blue Anodized					Push Pin	Top Mount	ASIC BGA CPU LGA	9.39 °C/W	1.575 in	40 mm	25 mm	0.984 in
Advanced Thermal Solutions Inc. ATS-20A-52-C1-R0	Fins Square	Aluminum			Blue Anodized	0.03 m		30 mm	1.181 in	Push Pin	Top Mount	ASIC BGA CPU LGA	10.74 °C/W			25 mm	0.984 in	1.181 in
Advanced Thermal Solutions Inc. ATS-20A-36-C3-R0		Aluminum			Blue Anodized	36.83 mm				Push Pin	Top Mount	ASIC BGA CPU LGA	14.9 °C/W	2.267 in	57.6 mm			1.45 "	Rectangular	Fins	11.43 mm	0.45 "
Advanced Thermal Solutions Inc. ATS-20A-162-C2-R0	Fins Square	Aluminum			Blue Anodized		1.772 in			Push Pin	Top Mount	ASIC BGA CPU LGA	3.62 °C/W			25 mm	0.984 in						1.772 in	45 mm	45 mm
Advanced Thermal Solutions Inc. ATS-20A-138-C3-R0	Fins Square	Aluminum			Blue Anodized	25 mm	0.984 in	25 mm	0.984 "	Push Pin	Top Mount	ASIC BGA CPU LGA	12.46 °C/W								15 mm	0.59 in
Advanced Thermal Solutions Inc. ATS-20A-98-C2-R0	Fins Square	Aluminum			Blue Anodized		1.772 in			Push Pin	Top Mount	ASIC BGA CPU LGA	15.31 °C/W								15 mm	0.59 in	1.772 in	45 mm	45 mm
Advanced Thermal Solutions Inc. ATS-20A-60-C2-R0	Fins Square	Aluminum	1.378 in	35 mm	Blue Anodized	35 mm	1.378 "			Push Pin	Top Mount	ASIC BGA CPU LGA	6.36 °C/W	1.378 "	35 mm
Advanced Thermal Solutions Inc. ATS-20A-11-C2-R0	Fins Square	Aluminum	0.394 "	10 mm	Blue Anodized		1.969 in	50 mm	1.969 in	Push Pin	Top Mount	ASIC BGA CPU LGA	18.78 °C/W												50 mm
