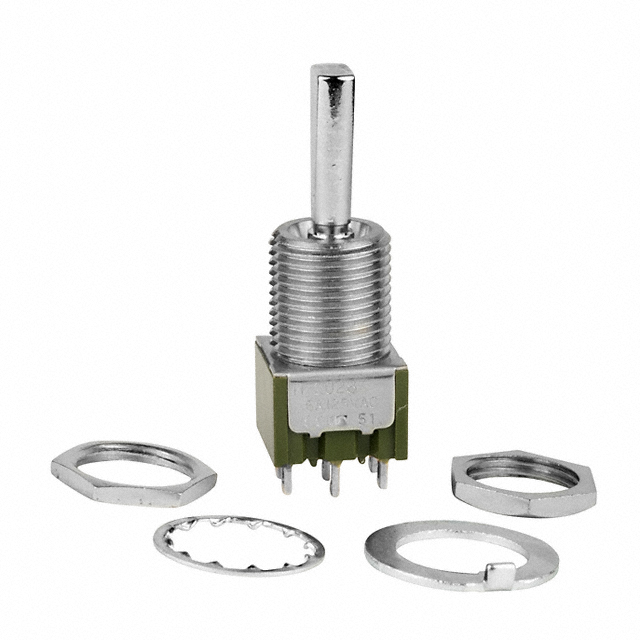

M2028RB Series
Manufacturer: NKK Switches
Beta
⌘K
MINIATURE TOGGLE/MULTI-FUNCTION
| Part | Actuator Material | Electrical Life | Mounting Type | Illumination | Termination Style | Actuator Type | Operating Temperature [Max] | Operating Temperature [Min] | Bushing Thread | Panel Cutout Dimensions [diameter] | Features | Voltage Rating - DC | Actuator Length [x] | Current Rating (Amps) | Ingress Protection | Circuit | Switch Function | Voltage Rating - AC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | Brass Chrome Plated | 25000 Steps | Panel Mount | Non-Illuminated | Quick Connect - 0.062" (1.5mm) | Flatted | 85 °C | -30 ░C | M12 x 1 | 12.5 mm | Epoxy Sealed Terminals | 30 V | 15.5 mm | 4 A 6 A | IP67 - Dust Tight Waterproof | DPDT | Mom-Off-Mom | 125 V |
 NKK Switches | Brass Chrome Plated | 25000 Steps | Panel Mount | Non-Illuminated | Solder Lug | Flatted | 85 °C | -30 ░C | M12 x 1 | 12.5 mm | Epoxy Sealed Terminals | 30 V | 15.5 mm | 3 A 6 A | DPDT | Mom-Off-Mom | 125 V |
