ECA-0JM Series

Manufacturer: Panasonic Electronic Components

Catalog

AL LYTIC CAP, RADIAL M SERIES, 85C ROHS COMPLIANT: YES

Part	Ripple Current @ Low Frequency	Ripple Current @ High Frequency	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Capacitance	Applications	Lead Spacing	Lead Spacing	Tolerance	Operating Temperature [Max]	Operating Temperature [Min]	Polarization	Size / Dimension [diameter]	Size / Dimension [diameter]	Lifetime @ Temp.	Package / Case	Mounting Type	Voltage - Rated	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Height - Seated (Max)	Height - Seated (Max) [Max] [custom]	Height - Seated (Max) [Max] [custom]	Height - Seated (Max) [Max]
Panasonic Electronic Components ECA-0JM103B	1.45 A	2.465 A	1.063 in	27 mm	10000 µF	General Purpose	0.295 in	7.5 mm	20 %	85 °C	-40 C	Polar	0.63 in	16 mm	2000 Hrs	Can Radial	Through Hole	6.3 VDC

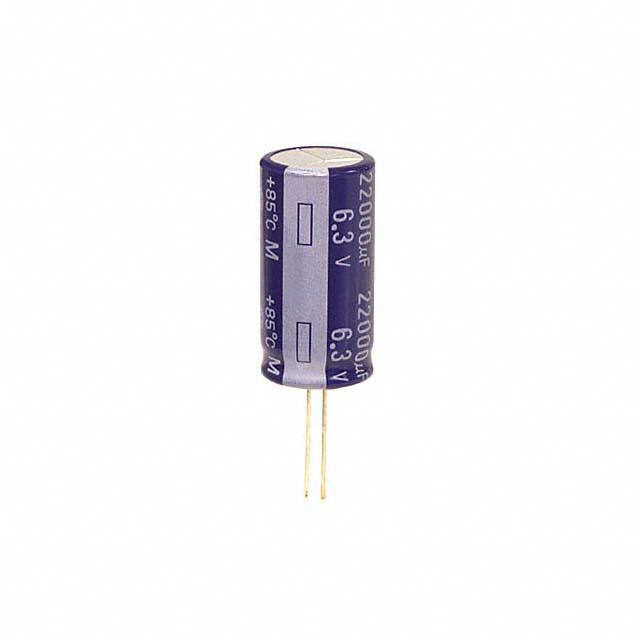

Panasonic Electronic Components ECA-0JM223	1.9 A	3.23 A			22000 µF	General Purpose	0.295 in	7.5 mm	20 %	85 °C	-40 C	Polar	0.709 in	18 mm	2000 Hrs	Can Radial	Through Hole	6.3 VDC	1.476 in	37.5 mm

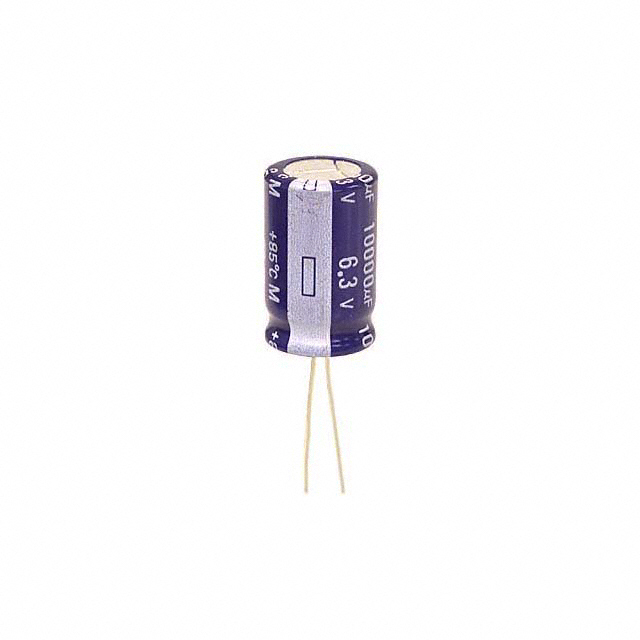

Panasonic Electronic Components ECA-0JM103	1.45 A	2.465 A	1.063 in	27 mm	10000 µF	General Purpose	0.295 in	7.5 mm	20 %	85 °C	-40 C	Polar	0.63 in	16 mm	2000 Hrs	Can Radial	Through Hole	6.3 VDC
Panasonic Electronic Components ECA-0JM103

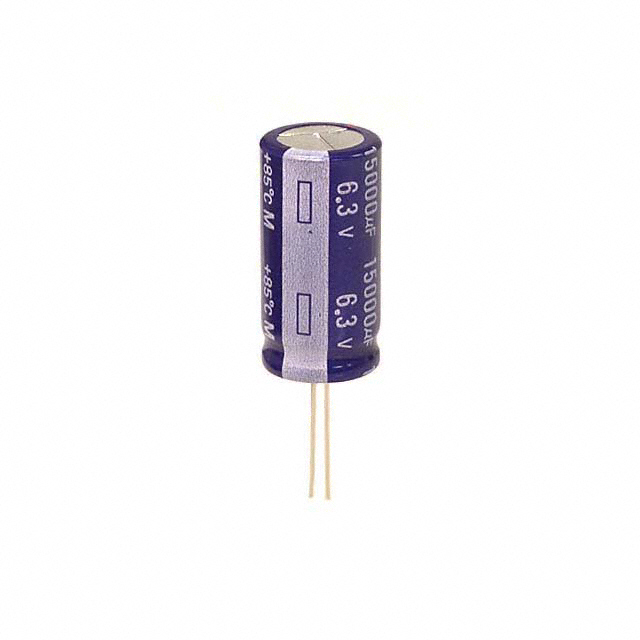

Panasonic Electronic Components ECA-0JM153	1.7 A	2.89 A				General Purpose	0.295 in	7.5 mm	20 %	85 °C	-40 C	Polar	0.63 in	16 mm	2000 Hrs	Can Radial	Through Hole	6.3 VDC	1.319 in		33.5 mm
Panasonic Electronic Components ECA-0JM472B	1.17 A	1.989 A			4700 µF	General Purpose	0.197 "	5 mm	20 %	85 °C	-40 C	Polar	0.492 in	12.5 mm	2000 Hrs	Can Radial	Through Hole	6.3 VDC				0.866 in	22 mm

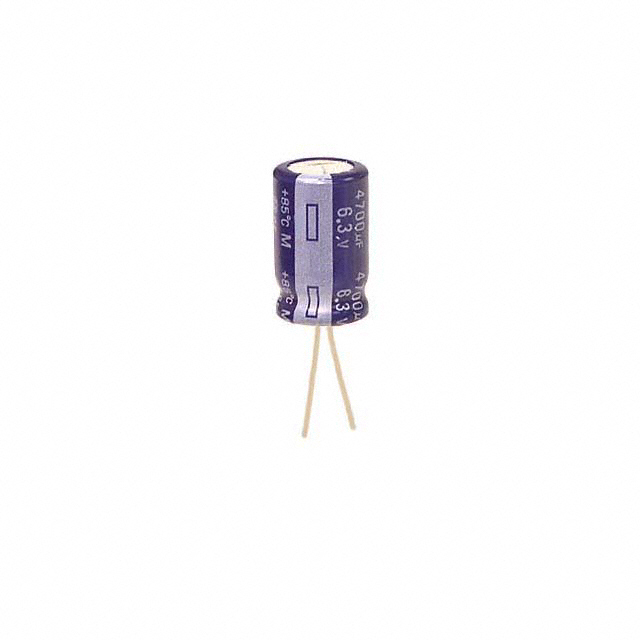

Panasonic Electronic Components ECA-0JM472	1.17 A	1.989 A			4700 µF	General Purpose	0.197 "	5 mm	20 %	85 °C	-40 C	Polar	0.492 in	12.5 mm	2000 Hrs	Can Radial	Through Hole	6.3 VDC				0.866 in	22 mm

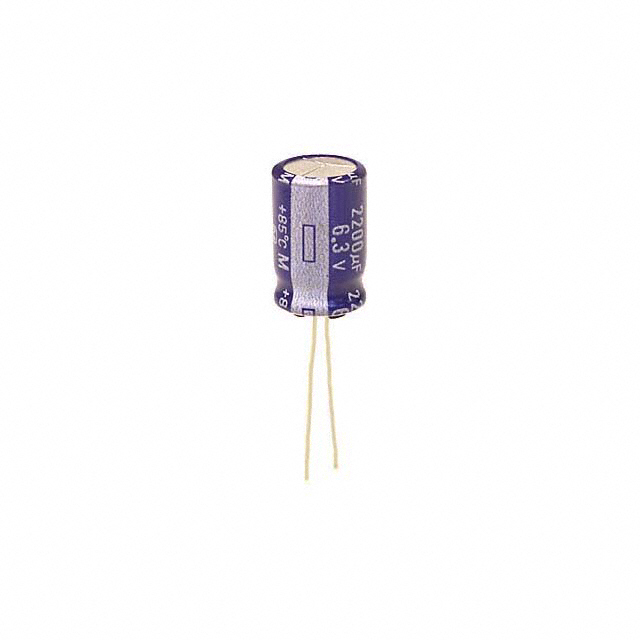

Panasonic Electronic Components ECA-0JM222	890 mA	1.513 A		17 mm	2200 µF	General Purpose	0.197 "	5 mm	20 %	85 °C	-40 C	Polar	0.394 in	10 mm	2000 Hrs	Can Radial	Through Hole	6.3 VDC	0.669 "

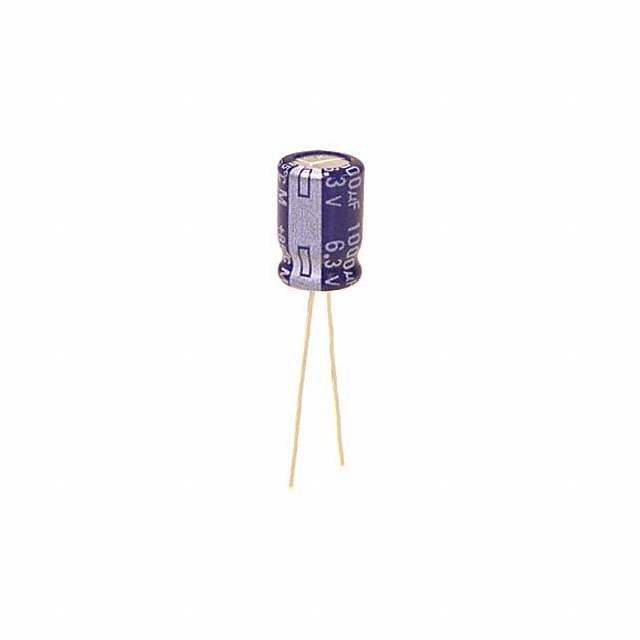

Panasonic Electronic Components ECA-0JM102BJ	580 mA	986 mA		0.492 in	1000 µF	General Purpose	0.138 in	3.5 mm	20 %	85 °C	-40 C	Polar	0.315 in	8 mm	2000 Hrs	Can Radial	Through Hole	6.3 VDC						12.5 mm
Panasonic Electronic Components ECA-0JM332B	1.02 A	1.734 A			3.3 mF	General Purpose	0.197 "	5 mm	20 %	85 °C	-40 C	Polar	0.394 in	10 mm	2000 Hrs	Can Radial	Through Hole	6.3 VDC				0.866 in	22 mm
