40-V, 3.5-A, 2-MHz step-down converter
Key Features
• New product available:LMR51440 4 to 36V, 4A, 200kHz to 1.1MHz synchronous converterFor faster time to market:TLVM13640 3 to 36V, 4A, 200kHz to 2.2MHz power module4V to 40V input range3.5A continuous output current100mΩ high-side MOSFET100ns minimum on timeCurrent mode control200kHz to 2MHz adjustable switching frequencyFrequency synchronization to external clockInternal compensation for ease of useHigh duty cycle operation supportedPrecision enable input1µA shutdown currentThermal, overvoltage, and short protection8-pin SOIC with PowerPAD™ packageNew product available:LMR51440 4 to 36V, 4A, 200kHz to 1.1MHz synchronous converterFor faster time to market:TLVM13640 3 to 36V, 4A, 200kHz to 2.2MHz power module4V to 40V input range3.5A continuous output current100mΩ high-side MOSFET100ns minimum on timeCurrent mode control200kHz to 2MHz adjustable switching frequencyFrequency synchronization to external clockInternal compensation for ease of useHigh duty cycle operation supportedPrecision enable input1µA shutdown currentThermal, overvoltage, and short protection8-pin SOIC with PowerPAD™ package
Description
AI

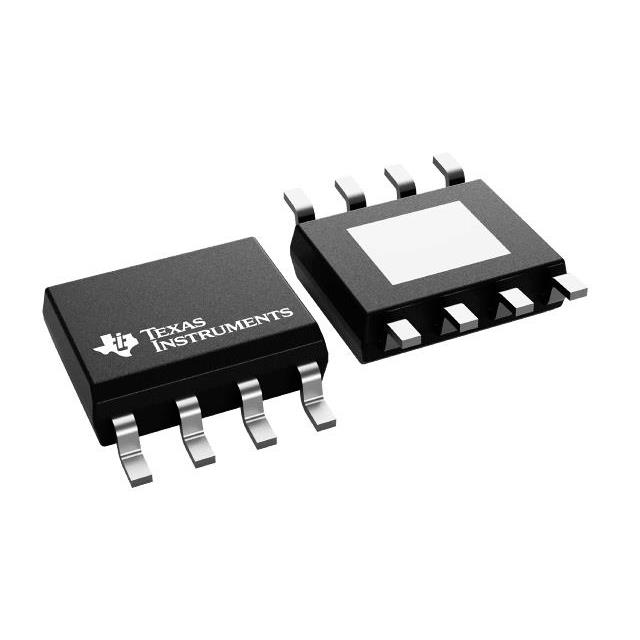

The LV14340 is a 40V, 3.5A step-down regulator with an integrated high-side MOSFET. With a wide input range from 4V to 40V, the device is designed for various applications from industrial to automotive for power conditioning from unregulated sources. A wide adjustable switching frequency range allows either efficiency or external component size to be optimized. Internal loop compensation means that the user is free from the tedious task of loop compensation design. This feature also minimizes the external components of the device. A precision enable input allows simplification of regulator control and system power sequencing. The device also has built-in protection features such as cycle-by-cycle current limit, thermal sensing, and shutdown due to excessive power dissipation, and output overvoltage protection.
The LV14340 is available in an 8-pin HSOIC with exposed pad for low thermal resistance.
The LV14340 is a 40V, 3.5A step-down regulator with an integrated high-side MOSFET. With a wide input range from 4V to 40V, the device is designed for various applications from industrial to automotive for power conditioning from unregulated sources. A wide adjustable switching frequency range allows either efficiency or external component size to be optimized. Internal loop compensation means that the user is free from the tedious task of loop compensation design. This feature also minimizes the external components of the device. A precision enable input allows simplification of regulator control and system power sequencing. The device also has built-in protection features such as cycle-by-cycle current limit, thermal sensing, and shutdown due to excessive power dissipation, and output overvoltage protection.
The LV14340 is available in an 8-pin HSOIC with exposed pad for low thermal resistance.
